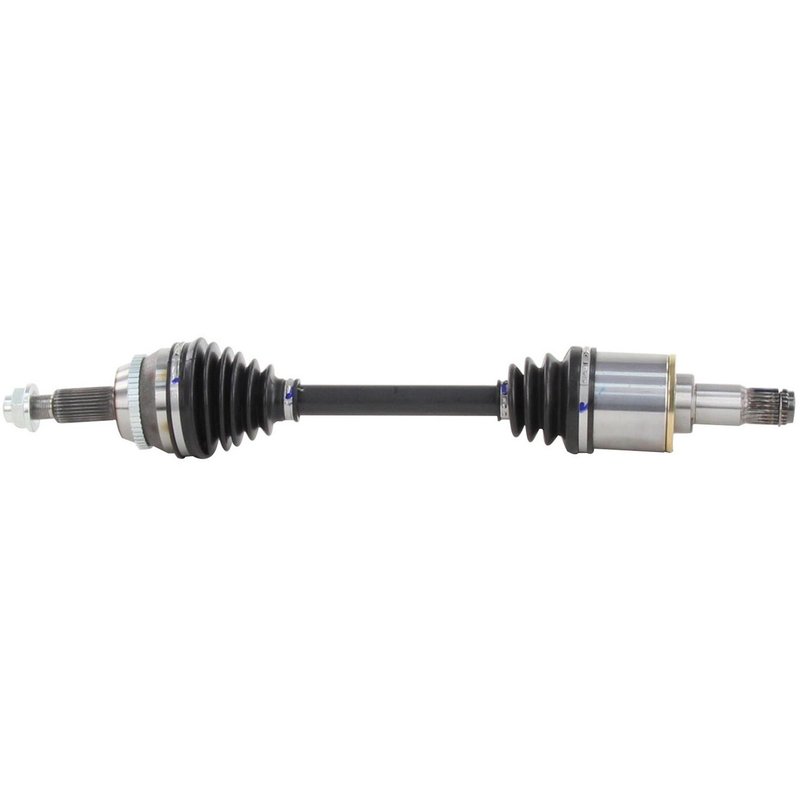

TrakMotive TO-8050 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-8050 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.43 |
| Overall Compressed Length (mm) | 646 |
| Product line | CV Axle Shaft |
| Fits | Lexus and Toyota · 26 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Toothed ring is included for ABS-equipped applications.
Cross-references TrakMotive TO-8050, 40-19711S and 80-5882 for the same application. See all 20.
CV Axle Shaft for Toyota and Lexus Front Left
TrakMotive TO-8050 is a new front left CV axle shaft built for select Toyota and Lexus applications. It is engineered with a 24-spline inboard male connection, 30-spline conventional outboard connection, and a 646 mm overall compressed length for direct replacement use.
This CV axle shaft includes a toothed ABS tone ring with 48 teeth, a neoprene boot, and an axle nut with M22 x 1.5 thread size, 32 mm hex, and stake-style locking design. TrakMotive TO-8050 is a fitment-based replacement for 2003-2006 Toyota Camry, 2004-2006 Lexus RX330, 2004-2007 Toyota Highlander, 2004-2008 Toyota Solara, and 2007-2009 Lexus RX350, front left.
- New CV axle shaft for front left driveline service
- 24 inboard splines and 30 outboard splines
- ABS tone ring included with 48-tooth toothed design
- Neoprene boot material for axle joint protection
- Axle nut included with M22 x 1.5 thread size
- Overall compressed length: 25.43 in. (646 mm)
Product Details
TrakMotive CV Axle Shaft TO-8050 is part of the brand’s CV Axle Shaft line and is built as a new replacement driveline component for front left applications. The axle uses a male inboard shaft connection and a conventional outboard shaft connection, matching the listed vehicle configurations for Toyota Camry, Toyota Highlander, Toyota Solara, Lexus RX330, and Lexus RX350. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage caused by a damaged axle boot
- ABS warning concerns related to a failed tone ring assembly
- Driveline noise from excessive axle play or spline wear
Installation Notes and Tips
Confirm front left fitment by matching the vehicle year, make, model, and axle configuration before installation. Inspect the axle seals, hub, and surrounding suspension components during replacement, and verify the axle nut thread size and locking style match the vehicle specification. After installation, torque fasteners to the manufacturer’s service procedure and road test the vehicle to confirm smooth operation.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part and states ISO 9001:1007 and TS 16949:2009 certification. The TO-8050 also carries a limited lifetime warranty.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2009 | Lexus | RX350 | — | FWD | — | — | — | Front Left | CV Axle Shaft |
| 2008 | Lexus | RX350 | — | FWD | — | — | — | Front Left | CV Axle Shaft |
| 2008 | Toyota | Solara | — | — | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2007 | Lexus | RX350 | — | FWD | — | — | — | Front Left | CV Axle Shaft |
| 2007 | Toyota | Highlander | Sport | FWD | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2007 | Toyota | Highlander | Limited | FWD | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2007 | Toyota | Highlander | Base | FWD | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2007 | Toyota | Solara | — | — | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2006 | Lexus | RX330 | — | FWD | — | — | — | Front Left | CV Axle Shaft |
| 2006 | Toyota | Camry | — | — | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2006 | Toyota | Camry | — | FWD | — | 3.0L | V6 | Front Left | CV Axle Shaft |
| 2006 | Toyota | Highlander | Sport | FWD | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2006 | Toyota | Highlander | Limited | FWD | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2006 | Toyota | Highlander | Base | FWD | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2006 | Toyota | Solara | — | — | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2005 | Lexus | RX330 | — | FWD | — | — | — | Front Left | CV Axle Shaft |
| 2005 | Toyota | Camry | — | — | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2005 | Toyota | Camry | — | FWD | — | 3.0L | V6 | Front Left | CV Axle Shaft |
| 2005 | Toyota | Highlander | — | FWD | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2005 | Toyota | Solara | — | — | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2004 | Lexus | RX330 | — | FWD | — | — | — | Front Left | CV Axle Shaft |
| 2004 | Toyota | Camry | — | FWD | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2004 | Toyota | Camry | — | FWD | — | 3.0L | V6 | Front Left | CV Axle Shaft |
| 2004 | Toyota | Highlander | — | FWD | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2004 | Toyota | Solara | — | — | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2003 | Toyota | Camry | — | FWD | Automatic | 3.0L | V6 | Front Left | CV Axle Shaft |
