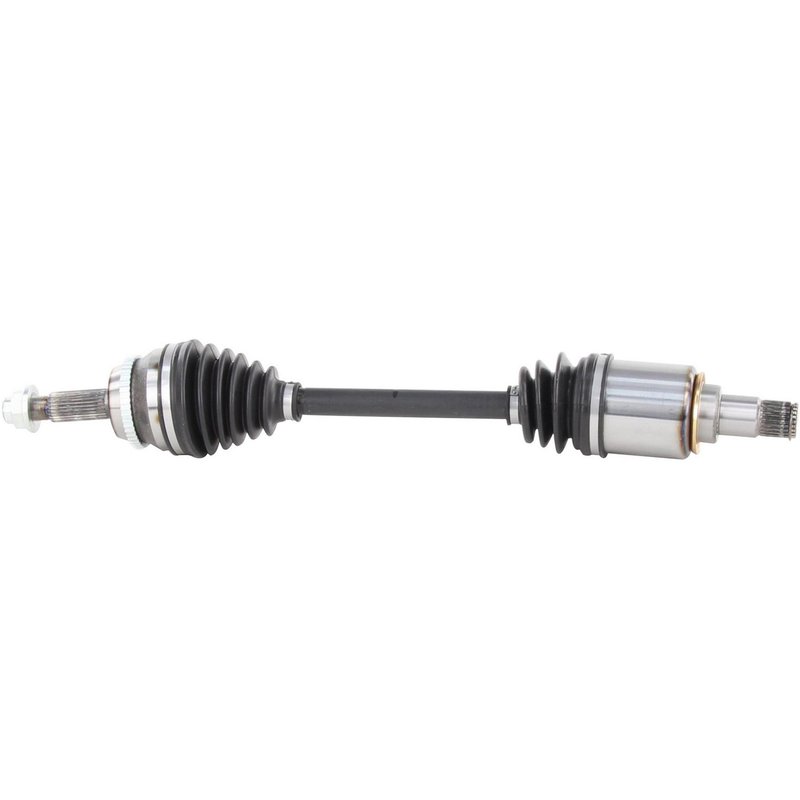

TrakMotive TO-8051 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8051

The TrakMotive CV Axle Shaft TO-8051 is engineered for reliable driveline performance in select Toyota models. Designed specifically for Toyota Camry, Highlander, and Solara vehicles, this new CV axle shaft ensures proper fitment and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Toyota Camry, Highlander, and Solara
• Includes a neoprene boot for durability and protection
• Equipped with a 48-tooth ABS ring and included tone ring
• Hex axle nut with stake locking type included
• Overall compressed length of 25.98 inches (660 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This CV axle shaft model TO-8051 features a conventional outboard joint and a male inboard joint, designed to maintain smooth power transfer and reduce vibration. The inclusion of a toothed ABS ring with 48 teeth and an ABS tone ring supports accurate wheel speed sensor readings, essential for ABS functionality in Toyota vehicles.

Technical Specifications and Features

This CV axle shaft is constructed with a neoprene boot material that offers resistance to wear and environmental factors. The axle nut included is a hex type with a 1 1/4 inch (32 mm) hex size, 1 inch (24 mm) height, and a length of 1 1/2 inches (37 mm), featuring a stake locking mechanism to ensure secure installation. The shaft has 24 inboard splines and 26 outboard splines, with a male inboard shaft connection style and a conventional outboard shaft connection style. The overall compressed length measures 25.98 inches (660 mm), making it compatible with the specified Toyota models.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Toyota Camry, Highlander, and Solara
• Restores proper ABS sensor function with included ABS tone ring and toothed ABS ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included stake locking hex axle nut

Installation Notes and Tips

Ensure the vehicle is properly supported and the wheel is removed before installation. Verify the axle nut thread size M22*1.5 matches the vehicle specifications. Use the included stake locking hex axle nut to secure the axle shaft, staking the nut as required to prevent loosening. Inspect the CV boot for any damage during installation and confirm the ABS tone ring is properly seated for accurate sensor readings.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8051 is a new, not remanufactured, component designed to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring to ensure a complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls for durability and fitment.
