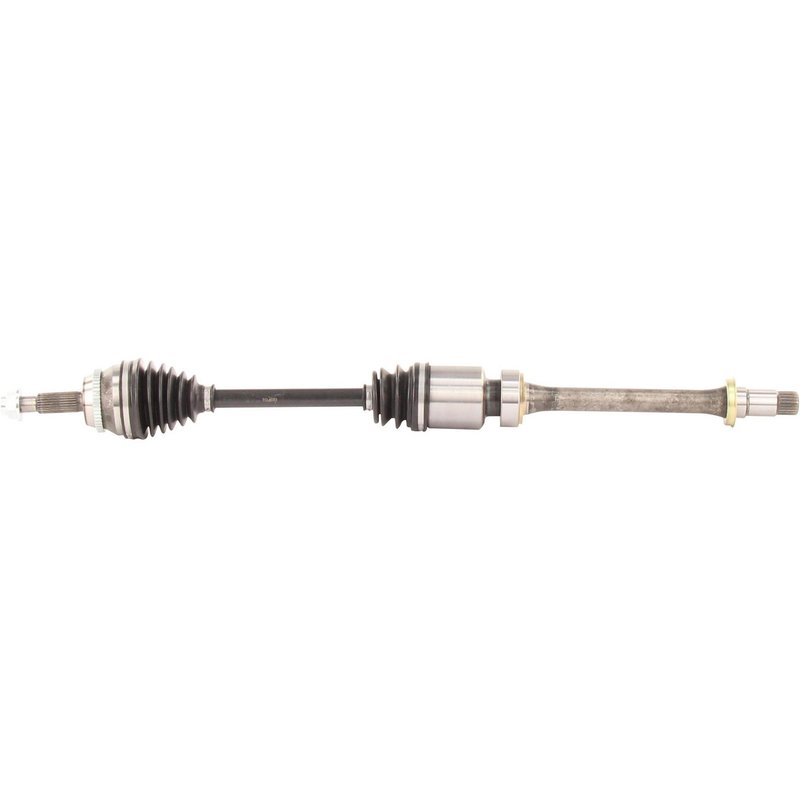

TrakMotive TO-8053 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8053

The TrakMotive CV Axle Shaft TO-8053 is engineered for reliable driveline performance in Toyota vehicles. Designed specifically for Toyota Camry, Highlander, and Solara models, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Toyota Camry, Highlander, and Solara
• Includes a neoprene boot for enhanced protection
• Equipped with a 48-tooth ABS ring and included tone ring
• Axle nut with hex head, 1 1/4 inch hex size, and stake locking type
• Overall compressed length of 37.87 inches (962 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to meet OEM specifications. This CV axle shaft model TO-8053 features a conventional outboard joint and a male inboard joint connection style, ensuring compatibility with the specified Toyota models. The inclusion of a toothed ABS ring with 48 teeth and a tone ring supports accurate wheel speed sensor readings for ABS systems.

Technical Specifications and Features

This CV axle shaft is constructed with a neoprene boot material that offers resistance to wear and environmental factors. The axle nut included is a stake locking type with a thread size of M22*1.5, a hex size of 1 1/4 inches (32 mm), and a height of 1 inch (24 mm), providing secure fastening. The shaft features 24 inboard splines and 26 outboard splines, with an overall compressed length of 37.87 inches (962 mm), ensuring proper fit and function within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Camry, Highlander, and Solara
• Restores smooth power transfer to wheels, eliminating vibrations or clicking noises
• Addresses issues related to torn or leaking CV boots
• Resolves ABS sensor errors caused by faulty or missing tone rings
• Prevents axle nut loosening with included stake locking nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8053, ensure the axle nut is torqued to manufacturer specifications to maintain proper locking. Verify the ABS tone ring is correctly positioned to avoid sensor malfunctions. The neoprene boot should be inspected for any damage during installation to maintain joint protection. This part is designed for direct replacement on compatible Toyota models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8053 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut for a complete installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and performance in driveline applications.
