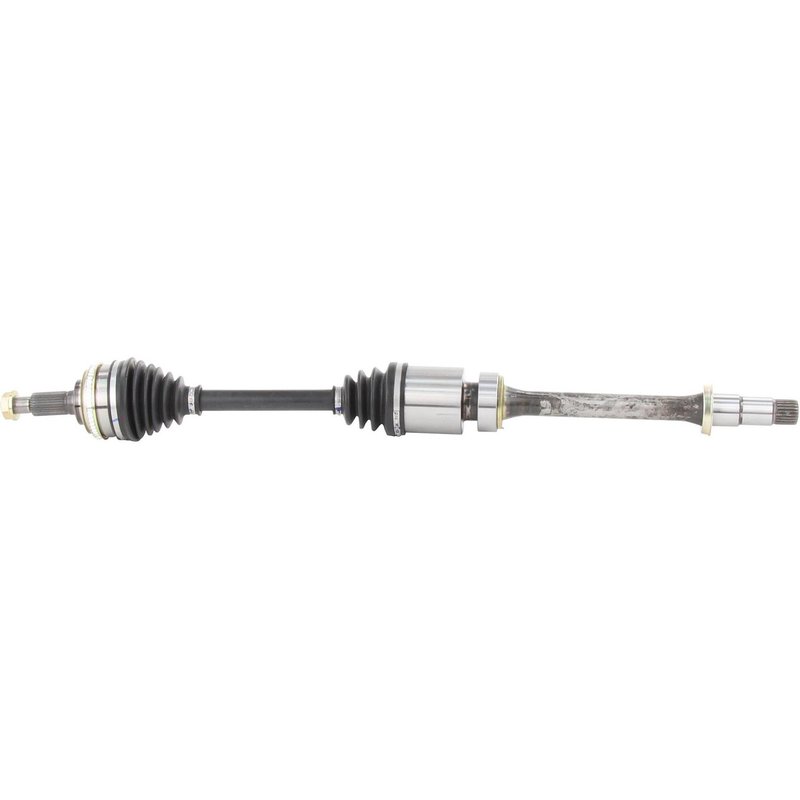

TrakMotive TO-8075 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-8075 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 29.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 37.4 |
| Overall Compressed Length (mm) | 950 |
| Product line | CV Axle Shaft |
| Fits | Toyota · 18 vehicles |
New CV axle shaft. Direct replacement with a complete, ready-to-install assembly.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring for ABS-equipped applications.
Cross-references BBB Industries 6970, Cardone Reman 60-5169 and TrakMotive TO-8075 for the same application. See all 14.
TrakMotive TO-8075 CV Axle Shaft
TrakMotive TO-8075 is a new CV axle shaft for front right applications on select Toyota vehicles. It is built with a neoprene boot, a 24-spline male inboard connection, and a conventional 30-spline outboard joint for direct driveline service on confirmed fitments.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: TO-8075
- New axle shaft construction
- Neoprene boot material
- Male inboard shaft connection style
- Conventional outboard shaft connection style
- 24 inboard splines and 30 outboard splines
- Includes axle nut with M22 x 1.5 thread size
- ABS tone ring included; 48-tooth toothed ABS ring
- Overall compressed length: 950 mm (37.4 in)
Detailed Description
TrakMotive TO-8075 is a front right CV axle shaft for 1997-2001 Toyota Camry, 1999-2002 Toyota Solara with plug-in style inboard joint, 2003 Toyota Solara with IBJ bolt-on, 2000-2004 Toyota Avalon, and 2001-2003 Toyota Sienna. This axle is built for the specified Toyota applications and uses a male inboard joint with a conventional outboard joint to match the listed driveline configuration. The included ABS tone ring and 48-tooth toothed ring support vehicles equipped with ABS, while ABS axles also fit non-ABS applications unless otherwise noted. TrakMotive TO-8075 is a direct replacement option for service work where the original axle shaft has worn joints, damaged boots, or vibration concerns. This part cross-references Cardone Reman 60-5169 for the same application.
What This Part Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Torn boot conditions that can lead to grease loss and contamination
- Noise from a damaged or worn front right axle assembly
- ABS-related service needs on listed Toyota applications
Installation Notes and Tips
Verify spline count, axle length, and axle nut thread size before installation. Confirm whether the vehicle uses a plug-in style inboard joint or IBJ bolt-on configuration, since the Toyota Camry and Solara listings vary by year and joint style. Inspect the hub, seals, and mounting points during replacement, and torque the axle nut to the vehicle manufacturer specification.
Quality Assurance
TrakMotive states this axle shaft is backed by a limited lifetime warranty and is produced by an ISO 9001:1007 and TS 16949:2009 certified company.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2004 | Toyota | Avalon | — | — | — | — | Front Right | CV Axle Shaft |
| 2003 | Toyota | Avalon | — | — | — | — | Front Right | CV Axle Shaft |
| 2003 | Toyota | Sienna | FWD | — | — | — | Front Right | CV Axle Shaft |
| 2003 | Toyota | Solara | — | Automatic | 3.0L | V6 | Front Right | IBJ Bolt-On; CV Axle Shaft |
| 2002 | Toyota | Avalon | — | — | — | — | Front Right | CV Axle Shaft |
| 2002 | Toyota | Sienna | FWD | — | — | — | Front Right | CV Axle Shaft |
| 2002 | Toyota | Solara | — | Automatic | 3.0L | V6 | Front Right | w/Plug-In Style Inboard Joint; CV Axle Shaft |
| 2001 | Toyota | Avalon | — | — | — | — | Front Right | CV Axle Shaft |
| 2001 | Toyota | Camry | — | Automatic | 3.0L | V6 | Front Right | w/ Plug-In Style Inboard Joint; CV Axle Shaft |
| 2001 | Toyota | Sienna | FWD | — | — | — | Front Right | CV Axle Shaft |
| 2001 | Toyota | Solara | — | Automatic | 3.0L | V6 | Front Right | w/Plug-In Style Inboard Joint; CV Axle Shaft |
| 2000 | Toyota | Avalon | — | — | — | — | Front Right | CV Axle Shaft |
| 2000 | Toyota | Camry | — | Automatic | 3.0L | V6 | Front Right | w/ Plug-In Style Inboard Joint; CV Axle Shaft |
| 2000 | Toyota | Solara | — | Automatic | 3.0L | V6 | Front Right | w/Plug-In Style Inboard Joint; CV Axle Shaft |
| 1999 | Toyota | Camry | — | Automatic | 3.0L | V6 | Front Right | w/ Plug-In Style Inboard Joint; CV Axle Shaft |
| 1999 | Toyota | Solara | — | Automatic | 3.0L | V6 | Front Right | w/Plug-In Style Inboard Joint; CV Axle Shaft |
| 1998 | Toyota | Camry | — | Automatic | 3.0L | V6 | Front Right | w/ Plug-In Style Inboard Joint; CV Axle Shaft |
| 1997 | Toyota | Camry | — | Automatic | 3.0L | V6 | Front Right | w/ Plug-In Style Inboard Joint; CV Axle Shaft |
