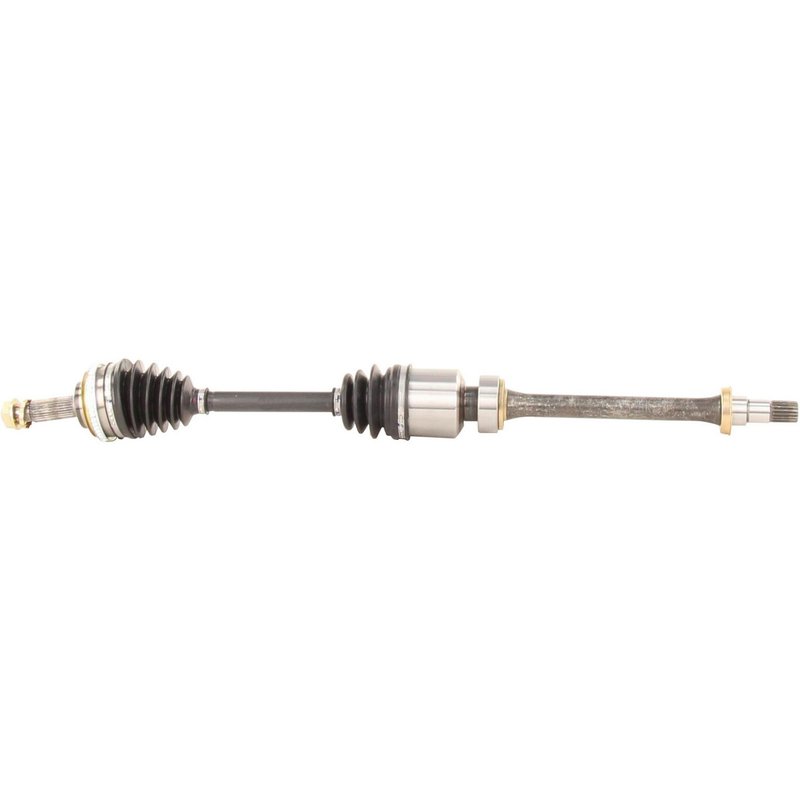

TrakMotive TO-8076 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-8076 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 29.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 20 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 35.75 |
| Overall Compressed Length (mm) | 908 |
| Product line | CV Axle Shaft |
| Fits | Toyota · 20 vehicles |
New axle shaft. Built with neoprene boot material for durable CV joint protection.
ABS tone ring included. 48-tooth toothed ring supports accurate wheel speed sensing.
Axle nut included. Comes with a hex nut for a complete replacement setup.
Cross-references Anchor 2142, AP Exhaust 7450 and Cardone New 66-5010 for the same application. See all 38.
CV Axle Shaft for Toyota Front Right Applications
TrakMotive TO-8076 is a new CV axle shaft built for front right service on select Toyota applications. It is engineered with a toothed ABS tone ring, a supplied axle nut, and OE-style connection details to support direct replacement needs on Toyota RAV4, Camry, and Celica driveline repairs.
Key Features
- New CV axle shaft for front right placement
- ABS tone ring included with 48-tooth toothed ring design
- Neoprene boot material for CV joint protection
- Male inboard shaft connection with conventional outboard shaft connection
- 20 inboard splines and 26 outboard splines
- Overall compressed length: 35.75 in. (908 mm)
- Axle nut included with M22 x 1.5 thread size and 29.8 mm hex size
- Limited Lifetime Warranty
Detailed Description
TrakMotive TO-8076 is a CV axle shaft from the TrakMotive CV Axle Shaft line, built for front right fitment on 1996-2000 Toyota RAV4, 1990-1993 Toyota Celica, and 1988-1991 Toyota Camry applications. The axle uses a male inboard joint, a conventional outboard joint, and a neoprene boot to help maintain joint protection in everyday driveline service. The included ABS tone ring and 48-tooth ring design support vehicles equipped for wheel speed sensing, while the supplied axle nut simplifies replacement planning. This part cross-references Cardone New 66-5010 and Gates 7460 for the same application.
What This CV Axle Shaft Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration under acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated CV boot
- ABS warning concerns related to a worn tone ring or axle assembly
- Driveline noise from excessive axle play or spline wear
Installation Notes and Tips
Verify front right position, spline count, axle nut thread size, and ABS tone ring requirements before installation. Confirm the vehicle’s original axle configuration against the listed Toyota RAV4, Camry, and Celica fitments, especially on 1989-1991 Camry applications noted with IBJ splined configuration. Inspect hub, seals, and related suspension components during replacement to help prevent repeat labor.
Quality Assurance
TrakMotive states this axle is backed by a Limited Lifetime Warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company. TO-8076 is a new replacement part built to support consistent fitment and manufacturing control for Toyota driveline service.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2000 | Toyota | RAV4 | — | FWD | Automatic | — | — | Front Right | CV Axle Shaft |
| 1999 | Toyota | RAV4 | — | FWD | Automatic | — | — | Front Right | CV Axle Shaft |
| 1998 | Toyota | RAV4 | — | FWD | Automatic | — | — | Front Right | CV Axle Shaft |
| 1997 | Toyota | RAV4 | — | FWD | Automatic | — | — | Front Right | CV Axle Shaft |
| 1996 | Toyota | RAV4 | — | FWD | Automatic | — | — | Front Right | CV Axle Shaft |
| 1993 | Toyota | Celica | GTS | — | — | — | — | Front Right | CV Axle Shaft |
| 1993 | Toyota | Celica | GT | — | — | — | — | Front Right | CV Axle Shaft |
| 1992 | Toyota | Celica | GTS | — | — | — | — | Front Right | CV Axle Shaft |
| 1992 | Toyota | Celica | GT | — | — | — | — | Front Right | CV Axle Shaft |
| 1991 | Toyota | Camry | — | FWD | Manual | 2.0L | L4 | Front Right | CV Axle Shaft |
| 1991 | Toyota | Camry | — | FWD | Automatic | 2.0L | L4 | Front Right | IBJ Splined; CV Axle Shaft |
| 1991 | Toyota | Celica | GTS | — | — | — | — | Front Right | CV Axle Shaft |
| 1991 | Toyota | Celica | GT | — | — | — | — | Front Right | CV Axle Shaft |
| 1990 | Toyota | Camry | — | FWD | Manual | 2.0L | L4 | Front Right | CV Axle Shaft |
| 1990 | Toyota | Camry | — | FWD | Automatic | 2.0L | L4 | Front Right | IBJ Splined; CV Axle Shaft |
| 1990 | Toyota | Celica | GTS | — | — | — | — | Front Right | CV Axle Shaft |
| 1990 | Toyota | Celica | GT | — | — | — | — | Front Right | CV Axle Shaft |
| 1989 | Toyota | Camry | — | FWD | Manual | 2.0L | L4 | Front Right | CV Axle Shaft |
| 1989 | Toyota | Camry | — | FWD | Automatic | 2.0L | L4 | Front Right | IBJ Splined; CV Axle Shaft |
| 1988 | Toyota | Camry | — | 4WD | — | — | — | Front Right | CV Axle Shaft |
