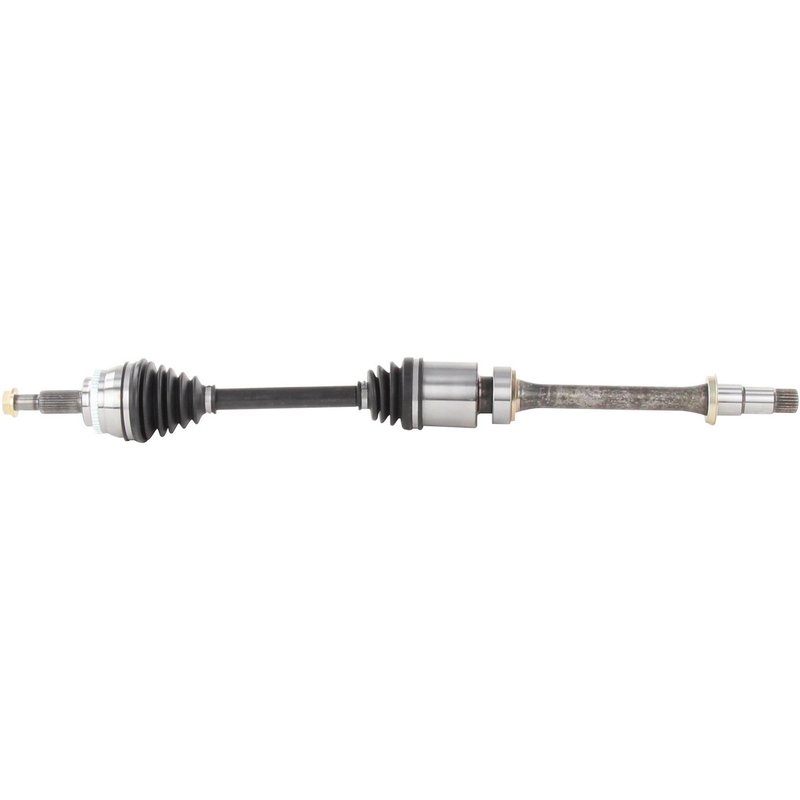

TrakMotive TO-8077 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8077

The TrakMotive CV Axle Shaft TO-8077 is engineered for reliable driveline performance in select Lexus and Toyota vehicles. Designed specifically for models like the Camry, ES300, and ES330, this new axle shaft ensures precise fitment and durability.

• Compatible with Lexus Camry, Toyota ES300, and ES330 models
• Includes a 48-tooth ABS ring with a toothed design for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Features a male inboard joint and conventional outboard joint for secure shaft connections
• Comes with a standard locking hex axle nut (M22*1.5 thread size) included
• Overall compressed length of 38.07 inches (967 mm) for exact fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable constant velocity components tailored for specific vehicle applications. This line emphasizes precise engineering, including ABS tone ring integration and robust joint designs, to maintain driveline integrity and vehicle safety. The TO-8077 model exemplifies these qualities with its comprehensive feature set and OEM-style specifications.

Technical Specifications and Features

This CV axle shaft features a 48-tooth ABS ring with a toothed design, which is included to ensure accurate ABS sensor readings. The axle nut is a hex head type, measuring 29.8 mm (1 1/6 inch) across flats, with a height of 15 mm (3/5 inch) and a length of 34.4 mm (1 1/3 inch). The nut uses a standard locking mechanism and has an M22*1.5 thread size. The shaft includes 24 inboard splines with a male joint type and 30 outboard splines with a conventional joint type, providing secure and reliable connections. The neoprene boot material offers resistance to wear and environmental factors, extending the service life of the axle shaft.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Lexus Camry, Toyota ES300, and ES330
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure wheel attachment with included standard locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8077, verify compatibility with the vehicle’s make and model. Use proper torque specifications for the M22*1.5 axle nut to ensure secure fastening without damaging threads. Inspect the ABS sensor and wiring during installation to confirm proper alignment with the toothed ABS ring. It is recommended to replace any damaged or worn suspension components simultaneously to maintain driveline performance.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8077 is a new, not remanufactured, component built to meet or exceed OEM standards. It undergoes rigorous quality control to ensure durability and fitment accuracy. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed coverage to protect against defects in materials and workmanship.
