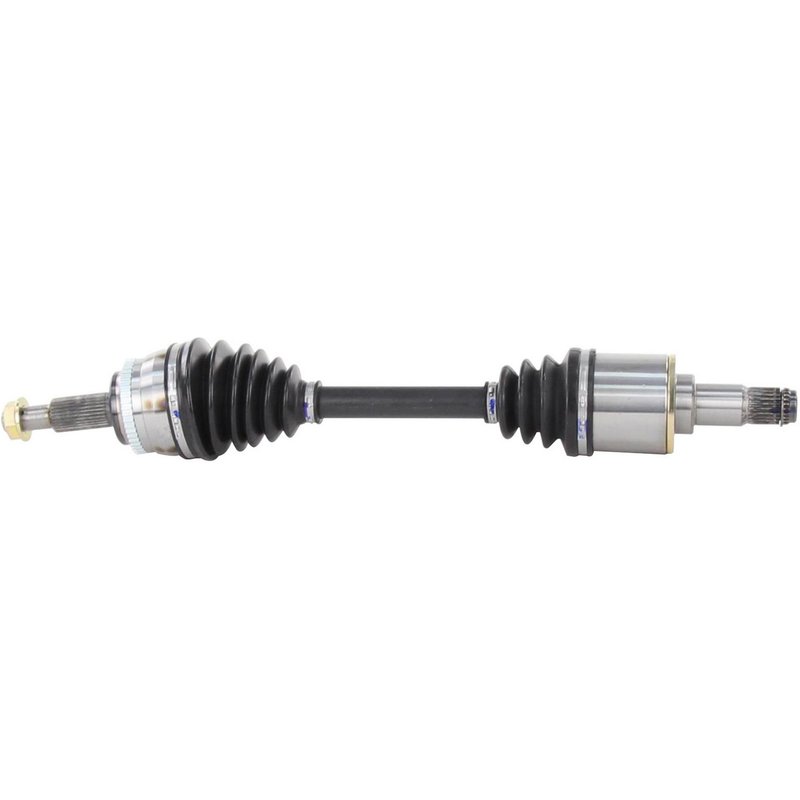

TrakMotive TO-8078 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8078

The TrakMotive CV Axle Shaft TO-8078 is engineered for reliable driveline performance in select Lexus and Toyota vehicles. Designed specifically for models like the Camry, ES300, and ES330, this new axle shaft ensures precise fitment and durability.

• Compatible with Lexus Camry, ES300, ES330 and Toyota Camry models
• Includes a 48-tooth ABS ring with a toothed design for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Features a male inboard joint and conventional outboard joint for secure shaft connections
• Comes with a standard locking hex axle nut (M22*1.5 thread size) included
• Overall compressed length of 25.51 inches (648 mm) for exact fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable constant velocity components tailored for specific vehicle applications. This line emphasizes precise engineering of joint types, spline counts, and boot materials to maintain driveline integrity and vehicle safety. The TO-8078 model exemplifies this approach with its combination of a male inboard joint, conventional outboard joint, and a neoprene boot designed to withstand typical road conditions.

Technical Specifications and Features

The TO-8078 CV Axle Shaft includes a 48-tooth ABS tone ring, which is essential for accurate anti-lock braking system operation. The ABS ring is toothed and included with the shaft, ensuring compatibility with the vehicle’s wheel speed sensors. The axle nut is a hex head type, measuring 1 1/6 inches (29.8 mm) across flats, with a height of 3/5 inches (15 mm) and a length of 1 1/3 inches (34.4 mm). It features a standard locking mechanism and is included with the shaft for convenience. The shaft itself has 24 inboard splines and 30 outboard splines, with a male inboard shaft connection style and a conventional outboard connection style, providing secure and reliable driveline engagement.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Lexus Camry, ES300, ES330, and Toyota Camry vehicles
• Restores proper ABS sensor function with included 48-tooth ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure wheel attachment with included standard locking axle nut

Installation Notes and Tips

• Verify vehicle compatibility with Lexus Camry, ES300, ES330, or Toyota Camry before installation
• Use proper torque specifications for the M22*1.5 axle nut to ensure secure fitment
• Inspect surrounding components such as wheel bearings and suspension parts during installation
• Ensure the ABS tone ring is properly aligned to maintain accurate sensor readings
• Replace any damaged or worn hardware to maintain driveline integrity

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8078 is a new, not remanufactured, component designed to meet OEM specifications for fit and function. Manufactured with quality materials including a neoprene boot and precision-machined splines, this axle shaft supports reliable vehicle operation. While specific warranty details are not provided, TrakMotive products typically adhere to industry standards for durability and performance.
