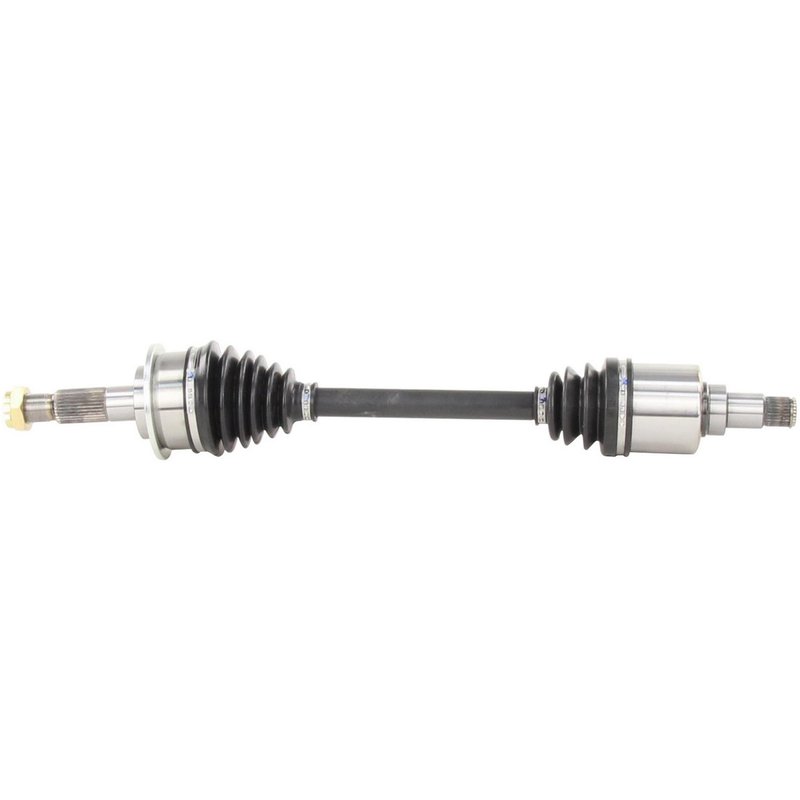

TrakMotive TO-8088 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft TO-8088

The TrakMotive CV Axle Shaft TO-8088 is engineered for reliable driveline performance in Toyota Sequoia and Tundra models. Designed as a new replacement part, it ensures proper fit and function for your vehicle's front axle assembly.

• Compatible with Toyota Sequoia and Tundra
• Includes axle nut with cotter pin locking mechanism
• Neoprene boot material for durability and protection
• Overall compressed length of 27.8 inches (706 mm)
• Hex head axle nut with 3/4 inch height and 1 3/5 inch hex size
• Inboard joint type: Male with 27 splines
• Outboard joint type: Conventional with 30 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. This CV Axle Shaft TO-8088 is part of that line, offering a new, direct-fit replacement designed to meet factory specifications for Toyota trucks and SUVs. The product line emphasizes compatibility and durability, featuring components such as neoprene boots and cotter pin locking axle nuts to maintain secure and long-lasting connections.

Technical Specifications and Features

This CV Axle Shaft features a neoprene boot that provides resistance to wear and environmental damage, helping to protect the joint from contaminants. The axle nut included is a hex head type, measuring 3/4 inch in height and 1 3/5 inch (40.8 mm) across the flats, with a thread size of M28*1.5. It uses a cotter pin locking mechanism to ensure secure fastening. The inboard joint is a male type with 27 splines, while the outboard joint is conventional with 30 splines, both designed to match the original equipment specifications. The overall compressed length of 27.8 inches (706 mm) ensures proper fitment within the driveline assembly.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Toyota Sequoia and Tundra
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage caused by torn or degraded boots
• Fixes axle nut loosening problems with included cotter pin locking nut
• Restores driveline integrity for improved vehicle handling and safety

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8088, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Inspect the mating surfaces and splines for cleanliness and damage before assembly. The neoprene boot should be checked for proper seating to avoid premature wear. This part is designed for direct replacement on compatible Toyota Sequoia and Tundra models, but professional installation is recommended to maintain driveline performance and safety.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8088 is a new, OEM-quality replacement part manufactured to meet or exceed original equipment standards. It includes the axle nut and features durable materials such as neoprene for the boot. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment for Toyota Sequoia and Tundra vehicles.
