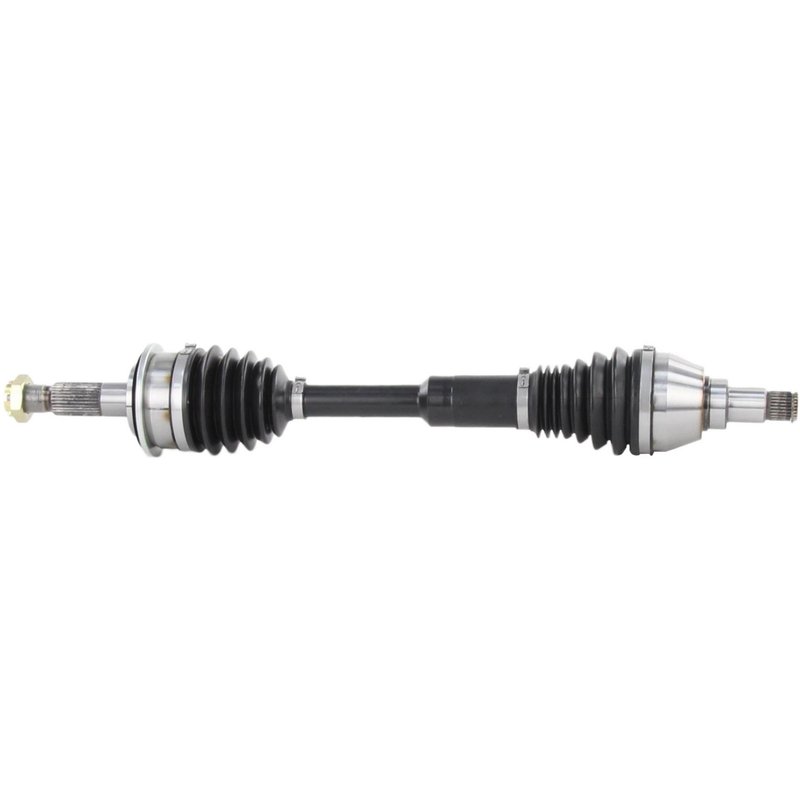

TrakMotive TO-8088XTT CV Axle Shaft - Front Left or Front Right

Reliable CV Axle Shaft for Toyota Sequoia and Tundra

The TrakMotive Extended Travel CV Axle Shaft TO-8088XTT is engineered to provide durable driveline performance for Toyota Sequoia and Tundra models. Designed to meet the demands of extended travel suspension setups, this CV axle shaft ensures consistent power transfer and vehicle stability.

• Compatible with Toyota Sequoia and Tundra vehicles
• Overall compressed length of 27.8 inches (706 mm)
• Neoprene boot material for enhanced durability and protection
• Hex head axle nut with cotter pin locking mechanism included
• Inboard joint features a male spline connection with 27 splines
• Outboard joint uses a conventional spline connection with 30 splines

About the Extended Travel CV Axle Shaft Line

The Extended Travel CV Axle Shaft product line by TrakMotive is specifically designed for vehicles equipped with suspension systems that require additional axle length to accommodate increased wheel travel. This line addresses the need for reliable driveline components that maintain proper fitment and function under extended travel conditions. The TO-8088XTT model is part of this line, offering precise spline counts and robust construction to support Toyota Sequoia and Tundra applications.

Technical Specifications and Features

This new CV axle shaft includes a neoprene boot that resists wear and environmental damage, helping to maintain joint integrity over time. The axle nut is a hex type with a 1.61-inch (40.8 mm) hex size and a height of 0.75 inches (19 mm), secured by a cotter pin locking system to prevent loosening during operation. The axle nut length measures 1.85 inches (47.11 mm) and features an M28x1.5 thread size. The inboard joint connects via a male spline with 27 splines, while the outboard joint uses a conventional spline style with 30 splines, ensuring compatibility and smooth power transfer.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Toyota Sequoia and Tundra
• Supports extended travel suspension setups requiring longer axle length
• Addresses issues with axle joint wear or boot failure
• Helps restore driveline stability and reduce vibrations
• Prevents axle nut loosening with included cotter pin locking mechanism

Installation Notes and Tips

When installing the TrakMotive TO-8088XTT CV axle shaft, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to maintain safety and performance. Verify spline engagement on both inboard and outboard joints for proper fitment. The neoprene boot should be inspected for any damage during installation to ensure long-term protection of the CV joints.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet OEM standards for fit and function. TrakMotive products undergo quality control to ensure durability and reliability in demanding driving conditions. Warranty details are provided by the manufacturer and should be reviewed prior to installation.
