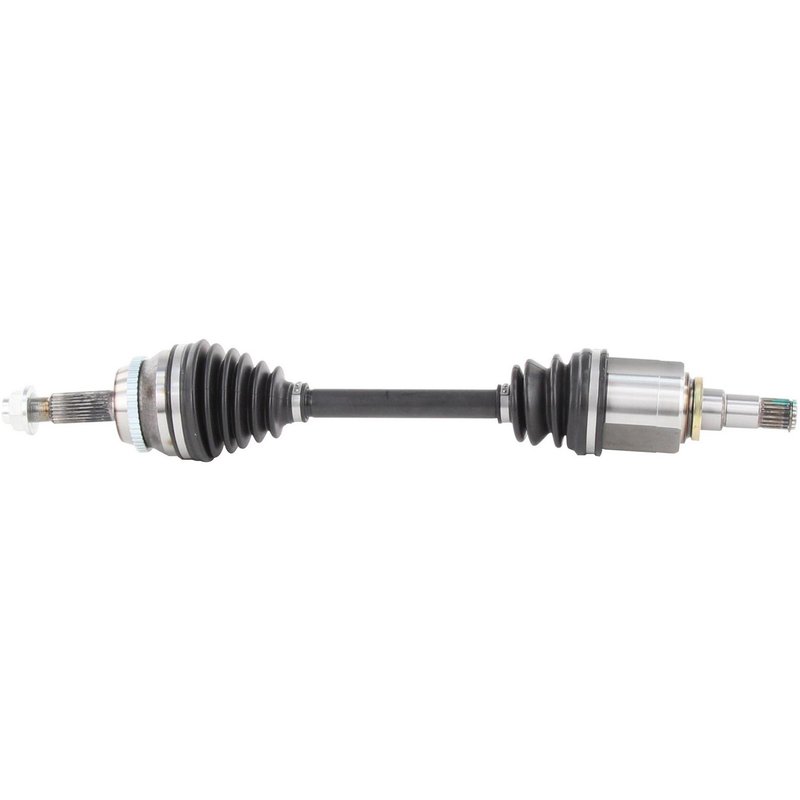

TrakMotive TO-8094 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8094

The TrakMotive CV Axle Shaft TO-8094 is engineered for reliable driveline performance in Pontiac Matrix and Toyota Vibe vehicles. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Pontiac Matrix and Toyota Vibe models
• Includes a neoprene boot for enhanced joint protection
• Equipped with a 48-tooth ABS ring and tone ring included
• Axle nut with hex head, 1 1/2 inch length, and stake locking type
• Overall compressed length of 25.34 inches (643.6 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes precise engineering, including correct spline counts and ABS ring integration, to maintain vehicle safety and driveline integrity. The TO-8094 model features a male inboard joint and conventional outboard joint, ensuring compatibility with the specified Pontiac and Toyota models.

Technical Specifications and Features

This CV axle shaft features a neoprene boot material that provides resistance to wear and environmental factors, extending the life of the joint. The ABS ring is a toothed type with 48 teeth, and the tone ring is included to maintain proper ABS sensor function. The axle nut is a hex head type with a 1 1/4 inch (32 mm) hex size, 1 inch (24 mm) height, and 1 1/2 inch (37 mm) length, secured with a stake locking mechanism. The shaft has 20 inboard splines and 26 outboard splines, with an overall compressed length of 25.34 inches (643.6 mm), ensuring a precise fit for the Pontiac Matrix and Toyota Vibe.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts in Pontiac Matrix and Toyota Vibe
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8094, verify compatibility with your Pontiac Matrix or Toyota Vibe model year. Use the included axle nut with the specified M22x1.5 thread size and stake locking type to secure the axle properly. Inspect the neoprene boot for any damage during installation to maintain joint protection. Proper torque specifications should be followed to avoid premature wear or failure.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8094 is a new, remanufactured-free component designed to meet or exceed OEM standards. It includes an ABS tone ring to maintain vehicle safety systems. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Pontiac Matrix and Toyota Vibe vehicles.
