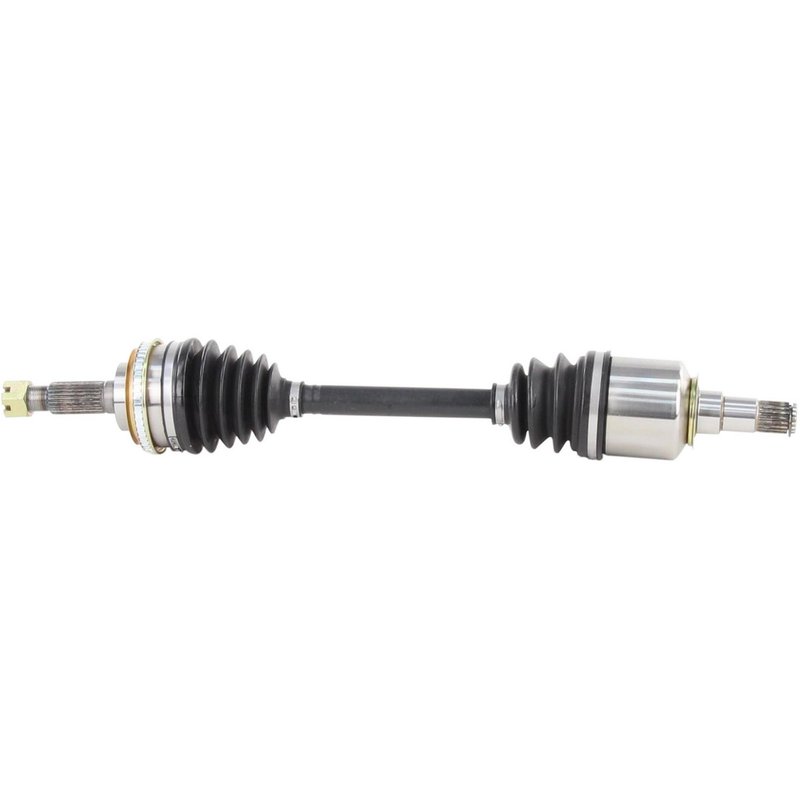

TrakMotive TO-8097 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-8097 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 29.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 20 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.25 |
| Overall Compressed Length (mm) | 616 |
| Product line | CV Axle Shaft |
| Fits | Toyota · 5 vehicles |
New CV axle shaft. Direct replacement for a straightforward install.
Neoprene boot. Helps protect the joint from wear and contamination.
ABS tone ring included. Built with a toothed ring and 48 teeth.
Cross-references AMS Automotive 6807, Cardone New 66-5208 and Cardone Reman 60-5207 for the same application. See all 24.
Front Left CV Axle Shaft for Toyota RAV4
TrakMotive TO-8097 is a new CV axle shaft for the front left position on 1996-2000 Toyota RAV4 models. It is built with a neoprene boot, a male inboard shaft connection, and a conventional outboard joint for direct driveline service on the listed application.
Key Features
- Fits 1996-2000 Toyota RAV4, front left
- TrakMotive CV Axle Shaft, part number TO-8097
- New replacement axle shaft for driveline repair
- Neoprene boot material for CV joint protection
- Male inboard shaft connection with conventional outboard joint
- Includes axle nut and ABS tone ring
- 48-tooth toothed ABS ring with included tone ring
- Axle nut thread size: M22 x 1.5
- Overall compressed length: 24.25 in. (616 mm)
Product Details
This TrakMotive CV axle shaft is engineered for the Toyota RAV4 front left driveline application listed above. The TO-8097 uses a 20-spline inboard connection and 26-spline outboard connection, along with a 48-tooth toothed ABS ring and included tone ring for vehicles that require ABS-related wheel speed signal components. TrakMotive TO-8097 is a direct-fit style axle for replacing a worn or damaged front axle assembly on the Toyota RAV4.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built for service fitment and OE-style application coverage. This part cross-references Cardone New 66-5208 and AMS Automotive 6807 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration from a damaged axle shaft
- Grease leakage from a torn CV boot
- ABS warning concerns related to a failed tone ring or axle sensor interface
- Driveline noise from excessive axle wear
Installation Notes
Verify spline count, axle nut thread size, and ABS ring configuration before installation. Confirm the front left position and compare the removed axle to the TO-8097 dimensions and connection styles. Use proper torque procedures for the axle nut and inspect related seals, hubs, and suspension components during service.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified company standards for manufacturing and quality control.
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2000 | Toyota | RAV4 | FWD | Automatic | Front Left | CV Axle Shaft |
| 1999 | Toyota | RAV4 | FWD | Automatic | Front Left | CV Axle Shaft |
| 1998 | Toyota | RAV4 | FWD | Automatic | Front Left | CV Axle Shaft |
| 1997 | Toyota | RAV4 | FWD | Automatic | Front Left | CV Axle Shaft |
| 1996 | Toyota | RAV4 | FWD | Automatic | Front Left | CV Axle Shaft |
