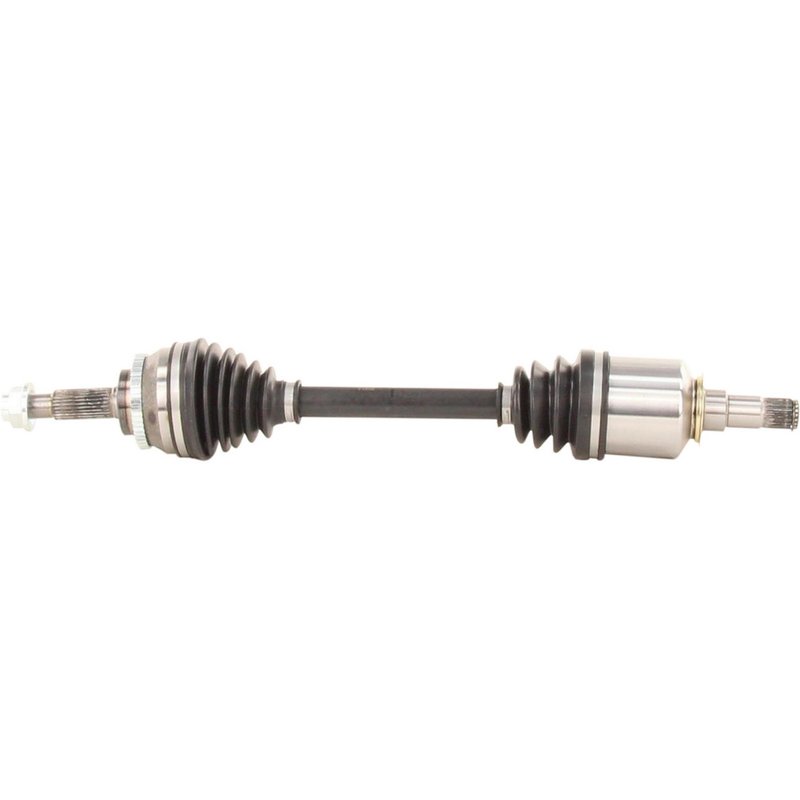

TrakMotive TO-8099 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8099 for Toyota Celica

The TrakMotive CV Axle Shaft TO-8099 is designed specifically for Toyota Celica models, providing reliable driveline performance. This new CV axle shaft features a neoprene boot and includes a toothed ABS tone ring to ensure precise wheel speed sensor operation.

• Compatible with Toyota Celica vehicles
• Includes ABS tone ring with 48 teeth for accurate sensor feedback
• Neoprene boot material for durability and flexibility
• Hex head axle nut included with stake locking type
• Overall compressed length of 24.8 inches (630 mm)
• Male inboard joint and conventional outboard joint types
• Thread size M22 x 1.5 with 1 1/4 inch (32 mm) hex size axle nut

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts engineered for precise fitment and reliable driveline function. This line emphasizes compatibility with specific vehicle makes and models, such as the Toyota Celica, and includes components like ABS tone rings and durable neoprene boots to maintain optimal performance and sensor accuracy.

Technical Specifications and Features

The TO-8099 CV axle shaft features a 48-tooth ABS ring with a toothed design, which is included to support the vehicle's anti-lock braking system. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a length of 1 1/2 inches (37 mm) and a height of 1 inch (24 mm). It uses a stake locking mechanism to secure the nut in place. The inboard joint is a male type with 20 splines, while the outboard joint is conventional with 26 splines. The neoprene boot material offers resistance to wear and environmental factors, helping to protect the joint and extend service life. The overall compressed length of the axle shaft is 24.8 inches (630 mm), ensuring proper fitment within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Celica
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures driveline connection with included stake locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8099 on a Toyota Celica, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to avoid premature failure. It is recommended to replace axle nuts with the included new nut to ensure secure fastening.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet OEM standards for fit and function. The inclusion of a neoprene boot and ABS tone ring supports long-term durability and sensor compatibility. Warranty coverage details should be confirmed with the product provider, but TrakMotive parts typically come with a limited warranty against defects in materials and workmanship.
