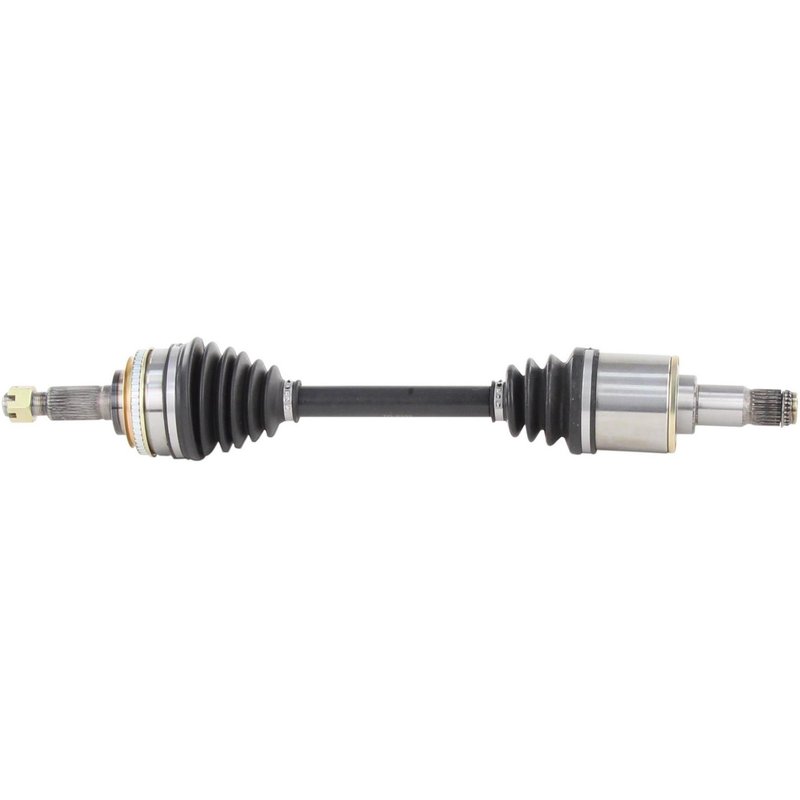

TrakMotive TO-8103 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8103

The TrakMotive CV Axle Shaft TO-8103 is engineered for reliable driveline performance in select Toyota vehicles. Designed to meet OEM specifications, this new axle shaft ensures smooth power transfer and durability for models like the Toyota Avalon, Camry, Sienna, and Solara.

• Compatible with Toyota Avalon, Camry, Sienna, and Solara
• Includes ABS tone ring with 48 toothed ring teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced joint protection
• Features a male inboard joint and conventional outboard joint for secure fitment
• Comes with a standard locking hex axle nut (M22*1.5 thread size) included
• Overall compressed length of 25.59 inches (650 mm) for precise fit

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable constant velocity components designed to restore driveline integrity. This line emphasizes compatibility with specific vehicle models and includes features such as ABS tone rings and durable neoprene boots to maintain sensor accuracy and joint longevity. The TO-8103 part exemplifies these qualities, providing a direct replacement axle shaft for Toyota vehicles requiring precise fit and function.

Technical Specifications and Features

This CV axle shaft features a 48-tooth ABS ring with a toothed design, ensuring reliable wheel speed data for ABS systems. The included ABS tone ring supports accurate sensor readings. The axle nut is a standard locking type with a hex head measuring 1 1/6 inches (29.8 mm) across flats, 3/5 inches (15 mm) in height, and 1 1/3 inches (34.4 mm) in length, threaded M22*1.5. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint uses a male connection style with 24 splines, while the outboard joint is conventional with 30 splines, ensuring secure and proper engagement. The overall compressed length of 25.59 inches (650 mm) matches OEM dimensions for a precise fit.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Avalon, Camry, Sienna, and Solara
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Prevents grease leakage and joint contamination with durable neoprene boot
• Addresses axle nut thread or locking issues with included standard locking nut

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before removing the old axle shaft. Verify spline counts and joint types match the replacement part. Use the included axle nut and torque to manufacturer specifications. Inspect the ABS sensor and wiring during installation to confirm proper alignment with the ABS tone ring. Avoid damaging the neoprene boot during installation to maintain joint protection.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8103 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a standard locking axle nut and ABS tone ring to maintain vehicle safety systems. While specific warranty details are not provided, TrakMotive products typically undergo quality control to ensure durability and fitment accuracy for Toyota Avalon, Camry, Sienna, and Solara models.
