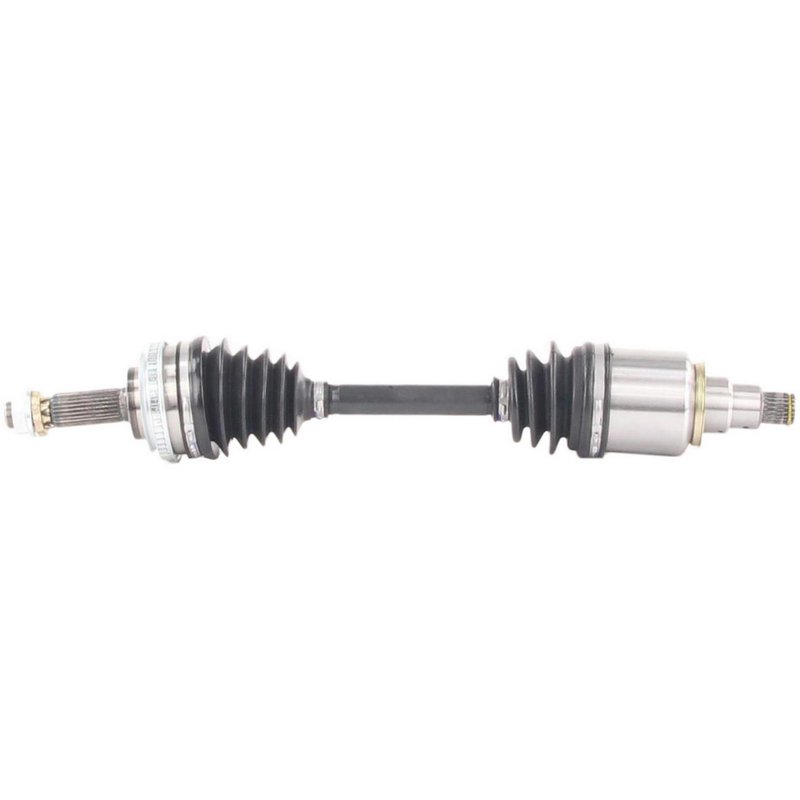

TrakMotive TO-8105 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8105

The TrakMotive CV Axle Shaft TO-8105 is engineered for reliable driveline performance in Toyota vehicles, including the Camry, Corolla, and RAV4. Designed to meet OEM specifications, this new axle shaft ensures consistent power transfer and durability.

• Compatible with Toyota Camry, Corolla, and RAV4 models
• Includes ABS tone ring with 48 toothed ring teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Features a hex head axle nut (M22*1.5 thread size) included for secure installation
• Overall compressed length of 22.72 inches (577 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to restore driveline integrity. This line emphasizes compatibility with specific vehicle makes and models, ensuring that each CV axle shaft, including the TO-8105, matches the original equipment’s specifications for spline count, joint types, and connection styles.

Technical Specifications and Features

The TO-8105 CV Axle Shaft features a 48-tooth ABS ring with a toothed design, which is included to maintain accurate ABS sensor readings. The axle nut is a standard locking type with a hex head measuring 1 1/6 inches (29.8 mm) across flats and a height of 3/5 inches (15 mm). Both inboard and outboard joints are designed for conventional connection styles, with 23 inboard splines and 26 outboard splines to ensure proper engagement and torque transfer. The neoprene boot material provides resistance to wear and environmental factors, extending the service life of the axle shaft.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Camry, Corolla, and RAV4
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates vibrations and clicking noises caused by joint wear
• Prevents grease leaks and contamination with durable neoprene boot
• Ensures secure wheel attachment with included axle nut

Installation Notes and Tips

When installing the TrakMotive TO-8105 CV Axle Shaft, verify compatibility with your Toyota model and year. Use the included hex head axle nut (M22*1.5 thread) and torque to manufacturer specifications. Inspect the axle shaft splines and joints for proper engagement during installation. Ensure the neoprene boot is seated correctly to prevent contamination. It is recommended to replace axle nuts with new ones to maintain secure fastening.

Quality Assurance and Warranty

This CV Axle Shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive provides quality assurance through rigorous manufacturing controls. Please consult the product documentation or supplier for specific warranty details related to the TO-8105 part number.
