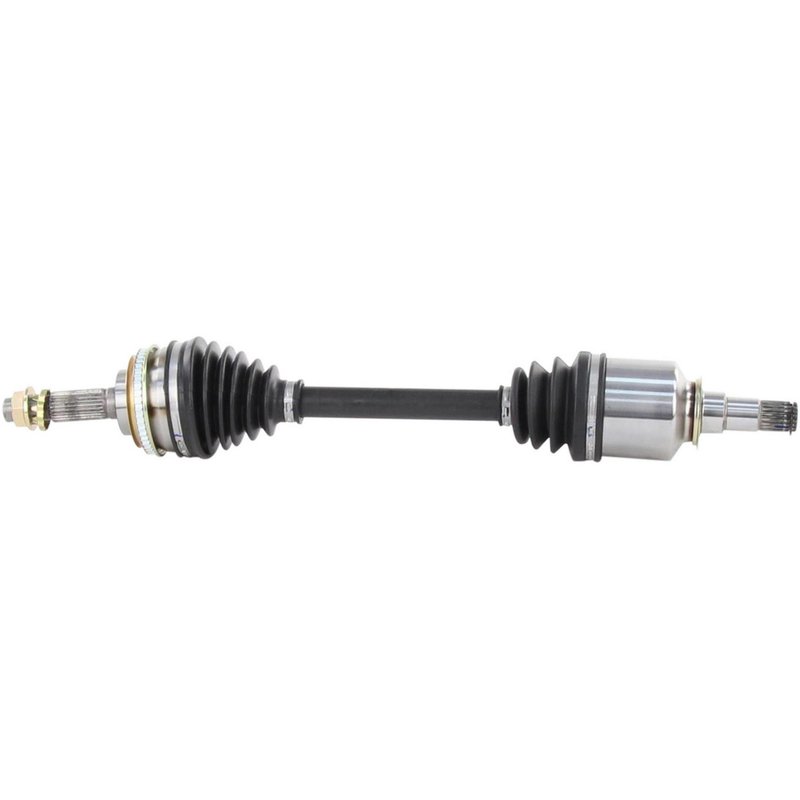

TrakMotive TO-8106 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8106 for Toyota Celica

The TrakMotive CV Axle Shaft TO-8106 is engineered specifically for Toyota Celica models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Toyota Celica vehicles
• Includes a neoprene boot for durability and protection
• Equipped with a 48-tooth ABS ring and included tone ring
• Hex head axle nut with M22*1.5 thread size included
• Overall compressed length of 25.09 inches (637.4 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line features components like the TO-8106 that include essential parts such as ABS tone rings and axle nuts, ensuring compatibility and ease of installation. The CV Axle Shaft line is tailored to provide precise fitment for specific vehicle makes and models, including the Toyota Celica.

Technical Specifications and Features

The TO-8106 CV axle shaft includes a neoprene boot that offers resistance to wear and environmental damage. It features a 48-tooth toothed ABS ring with an included tone ring to maintain accurate wheel speed sensor readings. The axle nut is a standard locking type with a hex head measuring 1 1/6 inches (29.8 mm) across flats, 3/5 inches (15 mm) in height, and 1 1/3 inches (34.4 mm) in length. The axle nut thread size is M22*1.5, and the shaft has 20 inboard splines and 26 outboard splines. The inboard joint type is male, while the outboard joint is conventional, ensuring proper connection and torque transfer.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Celica
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included axle nut

Installation Notes and Tips

When installing the TrakMotive TO-8106 CV axle shaft, verify compatibility with your Toyota Celica model year. Use proper torque specifications for the M22*1.5 axle nut to ensure secure fitment. Inspect the axle shaft splines and joints for proper engagement during installation. The included ABS tone ring should be aligned correctly to maintain accurate sensor readings. It is recommended to replace axle nuts with the new ones provided to maintain locking integrity.

Quality Assurance and Warranty

This TrakMotive CV Axle Shaft TO-8106 is a new, not remanufactured, component built to meet or exceed OEM standards. The product includes a neoprene boot for enhanced durability and protection against contaminants. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to support reliable performance in Toyota Celica driveline applications.
