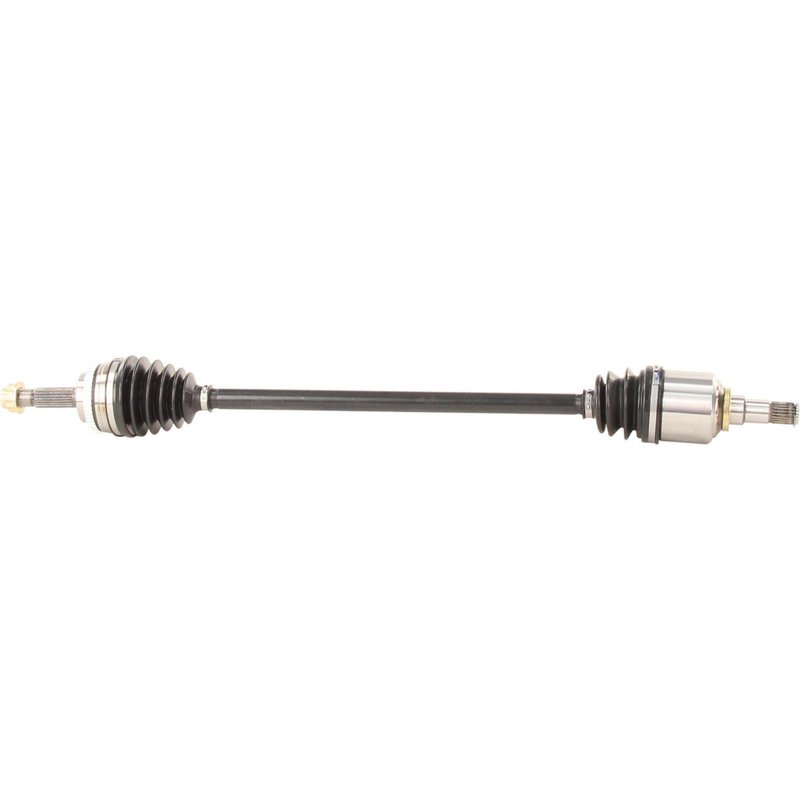

TrakMotive TO-8109 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-8109 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 24 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 34.57 |
| Overall Compressed Length (mm) | 878 |
| Product line | CV Axle Shaft |
| Fits | Scion and Toyota · 12 vehicles |
OE-style replacement. New CV axle shaft with direct-fit engineering for straightforward installation.
ABS tone ring included. Toothed ring and sensor-ready design support ABS-equipped applications.
Neoprene boot. Durable boot material helps protect the joint from wear and contamination.
Cross-references Cardone New 66-5193, Cardone Reman 60-5192 and Cardone Reman 60-5193 for the same application. See all 24.
CV Axle Shaft for Front Right Applications
TrakMotive TO-8109 is a new CV axle shaft for front right driveline service on select Toyota and Scion vehicles. It is built for 2000-2005 Toyota Echo, 2004-2006 Scion xA, and 2004-2006 Scion xB front right applications, with fitment details matched to the listed spline counts and axle dimensions.
The TrakMotive CV Axle Shaft line focuses on direct replacement driveline components for everyday repair work. Part number TO-8109 follows that approach with a new axle assembly, neoprene boot material, and an included axle nut for the specified application.
- New CV axle shaft for front right installation
- Fits 2000-2005 Toyota Echo, front right
- Fits 2004-2006 Scion xA, front right
- Fits 2004-2006 Scion xB, front right
- 23 inboard splines and 24 outboard splines
- Male inboard shaft connection with conventional outboard joint type
- Neoprene boot material for driveline protection
- ABS tone ring included with 48-tooth toothed ring
- Axle nut included, M22 x 1.5 thread, 30 mm hex size
- Overall compressed length: 34.57 in. (878 mm)
Detailed Product Overview
TrakMotive TO-8109 is a front right CV axle shaft engineered for vehicles that use the listed spline and length specifications. It includes a toothed ABS ring with 48 teeth and an ABS tone ring, making it suitable for ABS-equipped service where the application calls for that configuration. The axle uses a male inboard connection, a conventional outboard joint, and a neoprene boot to support driveline articulation and joint protection. This part cross-references Monroe Shocks & Struts 801426 for the same application.
Common Repair Uses
- Restores driveline function when the original axle shaft is worn or damaged
- Addresses clicking or popping noises during turns caused by CV joint wear
- Helps correct vibration from a bent or failing front axle assembly
- Replaces a leaking or torn boot assembly on the front right side
- Supports ABS-related service when the original tone ring is damaged or missing
Installation Notes and Tips
Verify front right fitment by matching year, model, spline count, axle length, and ABS configuration before installation. Confirm the axle nut thread size, hex size, and locking style against the vehicle’s service requirements. Because this axle is listed for specific Toyota Echo, Scion xA, and Scion xB applications, compare the original shaft dimensions and sensor ring setup before final assembly.
Quality Assurance
TrakMotive identifies this as a new replacement axle shaft and states that the product line is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Scion | xA | Front Right | CV Axle Shaft |
| 2006 | Scion | xB | Front Right | CV Axle Shaft |
| 2005 | Scion | xA | Front Right | CV Axle Shaft |
| 2005 | Scion | xB | Front Right | CV Axle Shaft |
| 2005 | Toyota | Echo | Front Right | CV Axle Shaft |
| 2004 | Scion | xA | Front Right | CV Axle Shaft |
| 2004 | Scion | xB | Front Right | CV Axle Shaft |
| 2004 | Toyota | Echo | Front Right | CV Axle Shaft |
| 2003 | Toyota | Echo | Front Right | CV Axle Shaft |
| 2002 | Toyota | Echo | Front Right | CV Axle Shaft |
| 2001 | Toyota | Echo | Front Right | CV Axle Shaft |
| 2000 | Toyota | Echo | Front Right | CV Axle Shaft |
