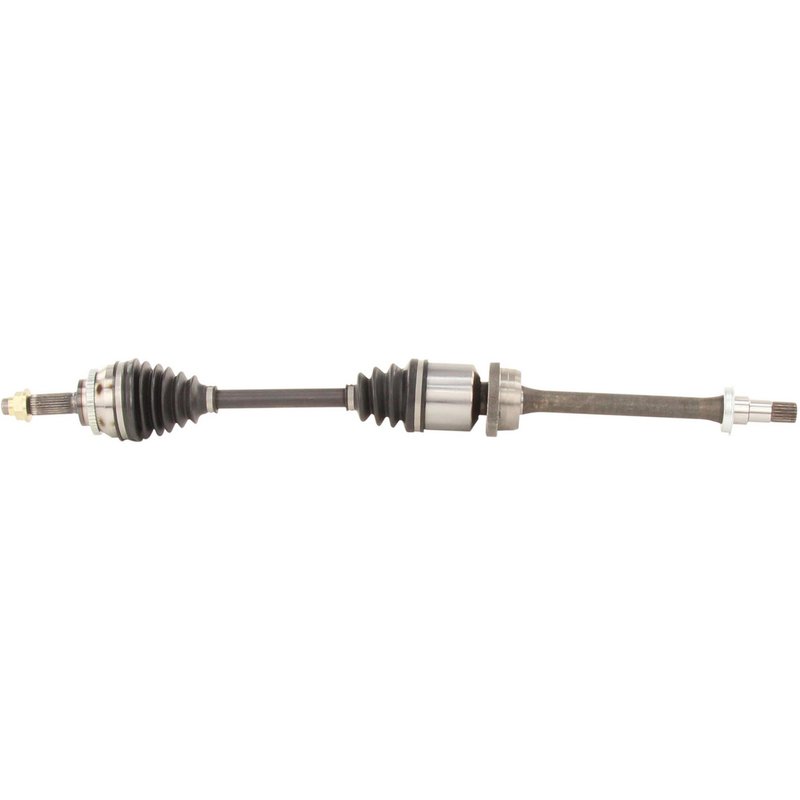

TrakMotive TO-8114 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8114

The TrakMotive CV Axle Shaft TO-8114 is engineered for reliable driveline performance in Pontiac Matrix and Toyota Vibe vehicles. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Pontiac Matrix and Toyota Vibe models
• Includes ABS tone ring with 48 toothed ring teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced joint protection
• Comes with a hex head axle nut (M22*1.5 thread size) featuring a stake locking mechanism
• Overall compressed length of 36.65 inches (931 mm) for exact fit

Detailed Features and Specifications

This CV Axle Shaft from TrakMotive features a 48-tooth ABS ring designed to work seamlessly with your vehicle's anti-lock braking system. The toothed ABS ring type and included tone ring ensure consistent wheel speed data transmission. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 1 inch (24 mm) and length of 1 1/2 inches (37 mm), secured by a stake locking method to prevent loosening during operation.

The axle shaft includes a neoprene boot, which offers resistance to wear and environmental factors, extending the life of the inboard and outboard joints. The inboard joint is a male type with 20 splines, while the outboard joint is conventional with 26 splines, providing a secure connection to the drivetrain components. The overall compressed length of 36.65 inches (931 mm) matches factory specifications for proper installation and function.

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft product line focuses on delivering new, direct-fit replacement axle shafts designed to meet OEM standards. This line emphasizes precise engineering, including correct spline counts and joint types, to ensure compatibility and reliable driveline performance. The TO-8114 model exemplifies this approach by offering a complete assembly with necessary hardware such as the axle nut and ABS tone ring included.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts in Pontiac Matrix and Toyota Vibe
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included stake-locking axle nut

Installation Notes and Tips

Ensure the vehicle is safely lifted and supported before removing the old axle shaft. Verify the spline counts and joint types match the replacement part. Use the included hex head axle nut with the specified M22*1.5 thread size and stake locking method to secure the axle properly. Inspect the neoprene boot for any damage during installation and avoid overextending the boot to prevent premature wear.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8114 is a new, remanufactured-free component designed to meet or exceed OEM specifications. It includes all necessary hardware for installation and is manufactured with quality materials such as neoprene boots and precision-machined splines. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage terms.
