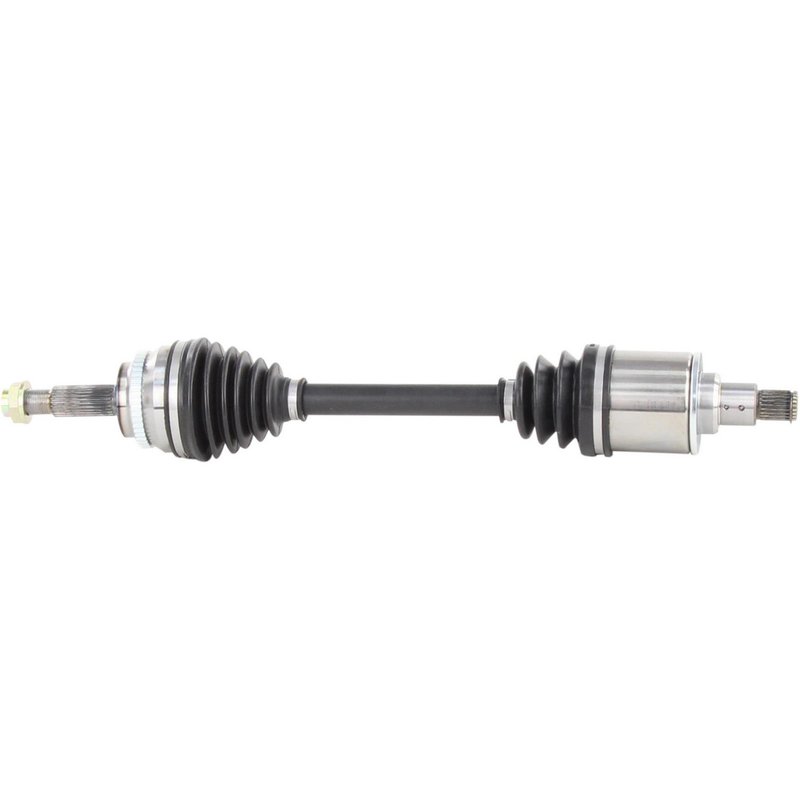

TrakMotive TO-8118 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8118 for Toyota Highlander

The TrakMotive CV Axle Shaft TO-8118 is engineered specifically for Toyota Highlander models, providing reliable driveline performance. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's CV components.

• Compatible with Toyota Highlander vehicles
• Includes a 48-tooth ABS ring with a toothed design
• Equipped with a neoprene boot for enhanced durability
• Features a hex head axle nut with stake locking type
• Overall compressed length of 24.65 inches (626 mm)
• New, not remanufactured, for consistent quality

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes precise engineering of CV components, including inboard and outboard joint types, ABS ring integration, and durable boot materials. The TO-8118 model exemplifies these standards with its male inboard joint and conventional outboard joint, ensuring smooth power transfer and reliable operation for Toyota Highlander drivetrains.

Technical Specifications and Features

The TO-8118 CV Axle Shaft includes a 48-tooth ABS ring with a toothed design and an ABS tone ring included, which supports accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It features a stake locking mechanism and a thread size of M22*1.5, ensuring secure fastening. The neoprene boot material offers resistance to wear and environmental factors, protecting the CV joints. The inboard joint is male type with 23 splines, while the outboard joint is conventional with 26 splines, providing compatibility with the Toyota Highlander’s driveline system.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Highlander
• Resolves issues related to torn or leaking CV boots
• Addresses ABS sensor errors caused by faulty tone rings
• Fixes axle nut loosening or thread damage
• Improves driveline vibration and noise caused by joint wear

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8118, ensure the axle nut is torqued to manufacturer specifications and the stake locking is properly engaged to prevent loosening. Inspect the CV boots for proper seating and avoid damage during installation. Verify the ABS tone ring alignment to maintain accurate sensor readings. This part is designed for direct replacement on compatible Toyota Highlander models, facilitating straightforward installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8118 is a new, OEM-quality replacement part manufactured to meet or exceed original equipment standards. It includes a neoprene boot and a complete axle nut assembly for comprehensive replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and performance in automotive driveline applications.
