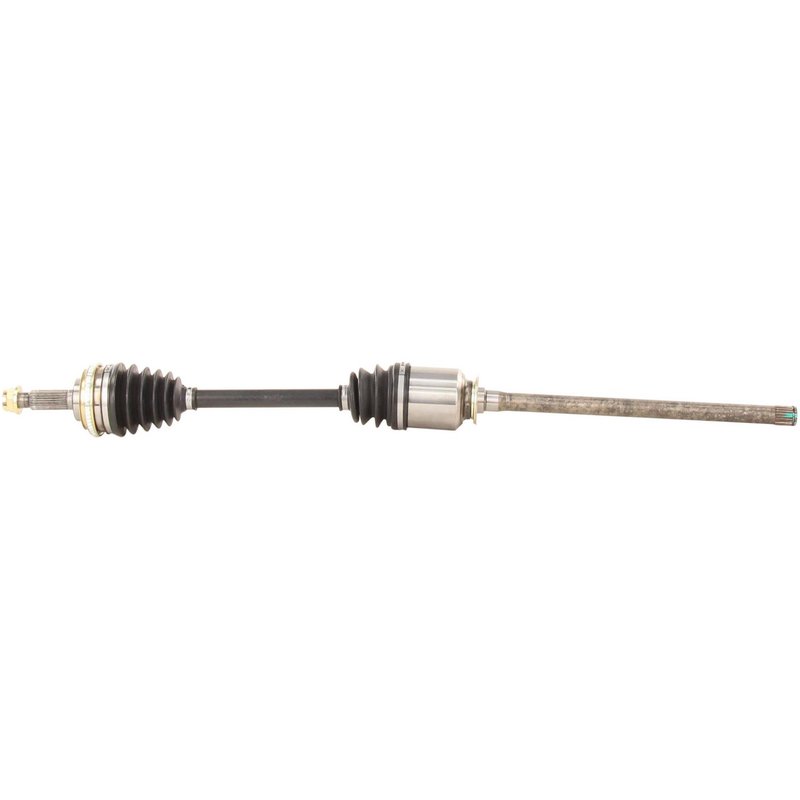

TrakMotive TO-8121 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8121 for Lexus RX300

The TrakMotive CV Axle Shaft TO-8121 is engineered specifically for the Lexus RX300, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Lexus RX300 models
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for durability and protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 38.98 inches (990 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity axle components designed for precise fitment and long-lasting performance. This CV axle shaft features a male inboard joint type and conventional outboard joint, ensuring compatibility with the Lexus RX300’s driveline system. The inclusion of a toothed ABS ring and tone ring supports accurate wheel speed sensor readings, essential for ABS functionality.

Technical Specifications and Features

This CV axle shaft (part number TO-8121) includes a neoprene boot that resists wear and environmental damage, extending the life of the joint. The axle nut is a hex head type measuring 30 mm across flats, with a height of 21 mm and a length of 34.6 mm, secured by a cotter pin locking system to prevent loosening during operation. The axle shaft has 23 inboard splines and 26 outboard splines, designed to match the Lexus RX300’s drivetrain components precisely.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Lexus RX300
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8121, ensure the axle nut is torqued to manufacturer specifications and the cotter pin is properly installed to secure the nut. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Use appropriate tools for the 30 mm hex axle nut and inspect the neoprene boot for any damage during installation.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive products undergo rigorous quality control to ensure durability and performance. Warranty details are provided by the manufacturer and should be reviewed prior to installation.
