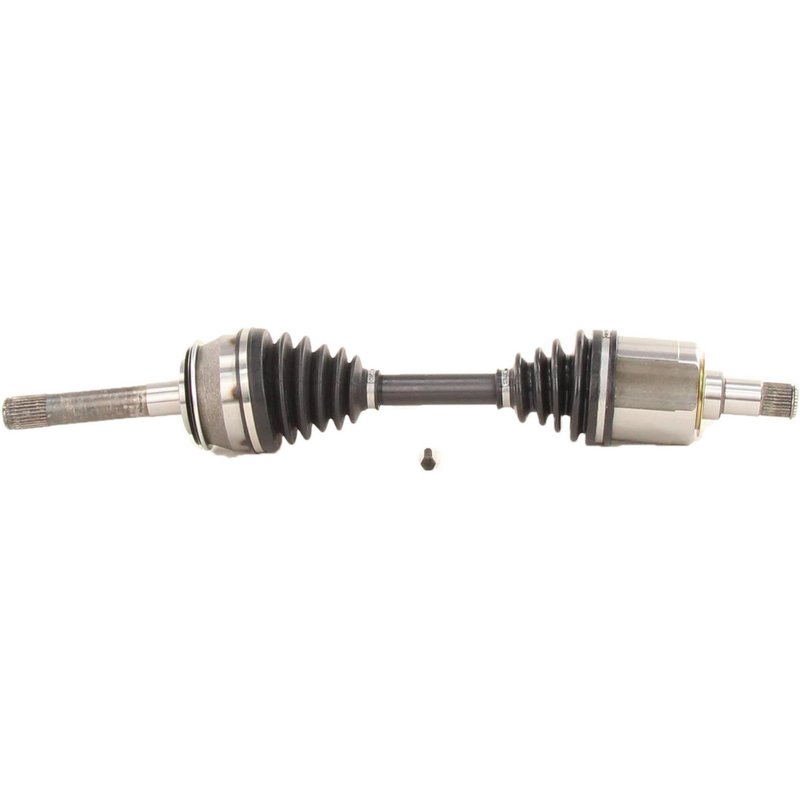

TrakMotive TO-8139 CV Axle Shaft - Front Left or Front Right

Overview of the TrakMotive CV Axle Shaft TO-8139

The TrakMotive CV Axle Shaft TO-8139 is designed specifically for Lexus Land Cruiser and Toyota LX470 models. This new CV axle shaft ensures reliable driveline performance with precise fitment and durable construction.

• Compatible with Lexus Land Cruiser and Toyota LX470
• New, not remanufactured, for consistent quality
• Neoprene boot material for enhanced durability
• Male inboard and outboard joint types with 30 splines each
• Axle bolt hex size 13mm, bolt length 45.3mm, thread size M8*1.25
• Overall compressed length of 707mm (27.83 inches)
• Single bolt hole and single outboard shaft bolt for secure installation

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. This line emphasizes new parts with robust neoprene boots and standardized joint and spline configurations to maintain OEM-level performance and fitment. The TO-8139 model exemplifies this approach by matching exact specifications required for Lexus Land Cruiser and Toyota LX470 vehicles.

Technical Description and Specifications

The TO-8139 CV axle shaft features a neoprene boot designed to resist wear and environmental damage, extending the life of the joint. Both the inboard and outboard joints are male type with 30 splines, ensuring a secure and precise connection to the drivetrain. The axle bolt specifications include a 13mm hex size, 45.3mm length, and M8*1.25 thread size, with one bolt hole and one outboard shaft bolt for mounting. The overall compressed length measures 707mm (27.83 inches), matching factory dimensions for proper fitment and function.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Lexus Land Cruiser and Toyota LX470
• Elimination of axle vibration or clicking noises during turns
• Restoration of driveline stability and smooth power transfer
• Addressing torn or leaking CV boots to prevent joint contamination
• Resolving axle shaft play or looseness affecting vehicle handling

Installation Notes and Tips

Ensure compatibility by verifying the part number TO-8139 against your vehicle’s specifications. Use the correct 13mm hex axle bolt and torque to manufacturer recommendations. Inspect the mating surfaces and splines for cleanliness before installation. Since the axle nut is not included, source the appropriate nut separately. Proper boot alignment and secure bolt tightening are critical to prevent premature wear.

Quality Assurance and Warranty

This TrakMotive CV Axle Shaft TO-8139 is a new component manufactured to meet OEM standards for fit and function. The neoprene boot material and precise spline counts contribute to long service life. While specific warranty details are not provided, TrakMotive parts typically adhere to industry quality controls to ensure reliability in Lexus Land Cruiser and Toyota LX470 applications.
