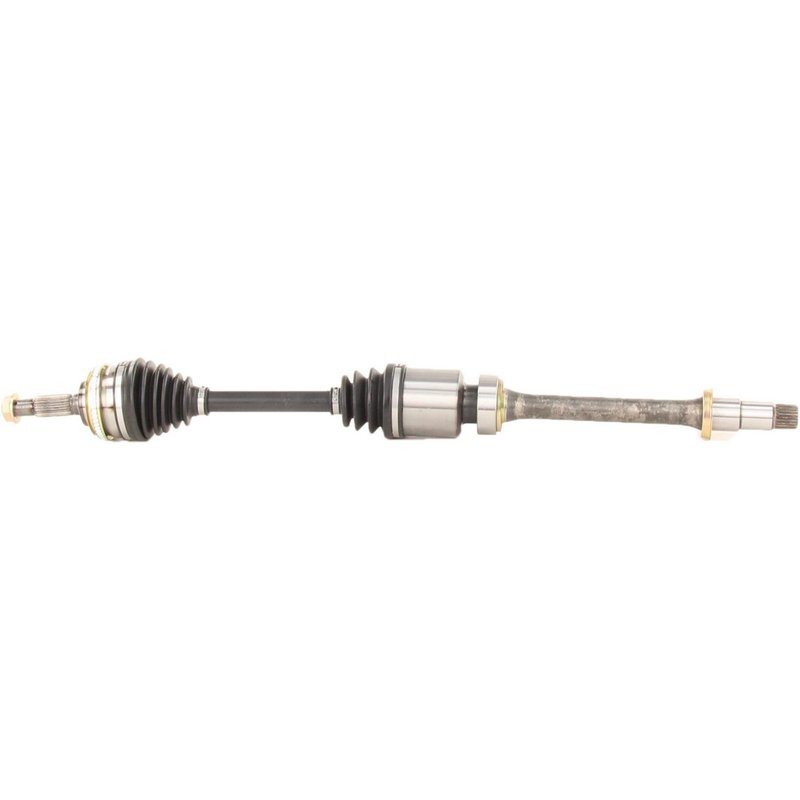

TrakMotive TO-8140 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8140 for Toyota RAV4

The TrakMotive CV Axle Shaft TO-8140 is engineered specifically for Toyota RAV4 models, providing reliable driveline performance. Designed as a new replacement part, it ensures proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Toyota RAV4 vehicles
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for durability and protection
• Hex head axle nut included with M22*1.5 thread size
• Overall compressed length of 36.22 inches (920 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This CV axle shaft features a conventional outboard joint and a male inboard joint connection style, ensuring compatibility and ease of installation. The inclusion of a toothed ABS ring and tone ring supports accurate wheel speed sensor readings, essential for ABS functionality on Toyota RAV4 models.

Technical Specifications and Features

This CV axle shaft (part number TO-8140) is constructed with a neoprene boot to resist wear and environmental damage. It includes a hex head axle nut measuring 29.8 mm (1 1/6 inch) across flats, with a height of 15 mm (3/5 inch) and length of 34.4 mm (1 1/3 inch). The axle nut uses a standard locking type and thread size M22*1.5. The shaft has 24 inboard splines and 26 outboard splines, designed for a secure connection to the drivetrain components. The overall compressed length is 36.22 inches (920 mm), matching the OEM specifications for proper fitment.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota RAV4
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included hex axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8140, verify compatibility with your Toyota RAV4 model year and drivetrain configuration. Use the included hex axle nut with the specified M22*1.5 thread size and torque to manufacturer specifications. Inspect the neoprene boot for any damage during installation to maintain joint protection. Proper alignment of the inboard and outboard splines is critical for smooth operation.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. The inclusion of an ABS tone ring ensures compatibility with factory ABS systems. While specific warranty details are not provided, TrakMotive parts typically adhere to industry quality controls to ensure durability and performance.
