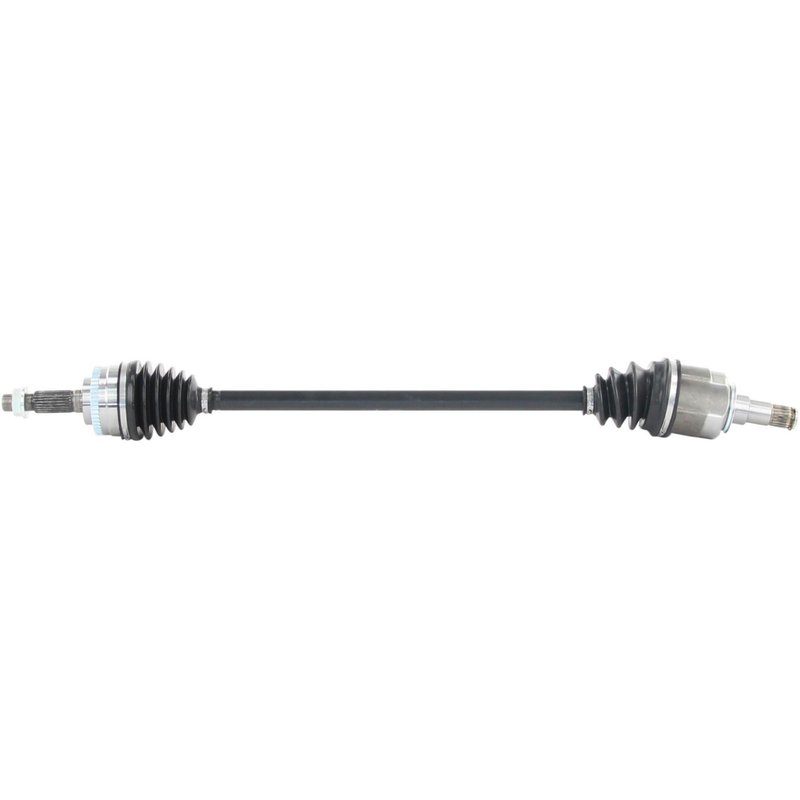

TrakMotive TO-8141 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-8141 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 20 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 35.28 |
| Overall Compressed Length (mm) | 896 |
| Product line | CV Axle Shaft |
| Fits | Toyota · 3 vehicles |
New axle shaft. Built with neoprene boot material for durable CV joint protection.
ABS tone ring included. Toothed ring with 48 teeth for integrated wheel speed sensing.
Axle nut included. Hex nut with stake locking for secure installation.
Cross-references AMS Automotive 6866, Cardone New 66-5189 and Cardone Reman 60-5189 for the same application. See all 20.
TrakMotive TO-8141 CV Axle Shaft for Prius
TrakMotive TO-8141 is a new front right CV axle shaft for 2001-2003 Toyota Prius applications. It is built with a neoprene boot, a male inboard shaft connection, and a conventional outboard joint for direct driveline replacement on the specified vehicle.
Key Features
- Fits 2001-2003 Toyota Prius, front right
- New CV axle shaft for driveline and axle service
- Neoprene boot material for joint protection
- Male inboard shaft connection with 20 inboard splines
- Conventional outboard shaft connection with 26 outboard splines
- ABS tone ring included with 48-tooth toothed ring
- Axle nut included: M22 x 1.5 thread, 31.8 mm hex size, stake lock type
- Overall compressed length: 896 mm (35.28 in)
Product Details
This TrakMotive CV axle shaft, part number TO-8141, is engineered for the front right position on the 2001-2003 Toyota Prius. The axle includes an ABS tone ring and is specified for ABS-equipped service, while ABS axles also fit non-ABS applications unless otherwise noted by the manufacturer. TrakMotive identifies this part line as a CV Axle Shaft series, focused on replacement driveline components for passenger vehicles.
This part cross-references Cardone New 66-5189 and AMS Automotive 6866 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration from a damaged axle shaft
- Torn or leaking CV boot causing grease loss and contamination
- ABS warning concerns related to a worn tone ring or axle assembly
- Excessive driveline play on the front right side
Installation Notes
Verify front right fitment against the vehicle’s original axle dimensions, spline count, and ABS configuration before installation. Confirm axle nut thread size, hex size, and locking style match the service requirements for the 2001-2003 Toyota Prius. Inspect related seals, hub components, and suspension hardware during axle replacement to help ensure proper operation after installation.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty and is produced by an ISO 9001:1007 and TS 16949:2009 certified company.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Toyota | Prius | Front Right | CV Axle Shaft |
| 2002 | Toyota | Prius | Front Right | CV Axle Shaft |
| 2001 | Toyota | Prius | Front Right | CV Axle Shaft |
