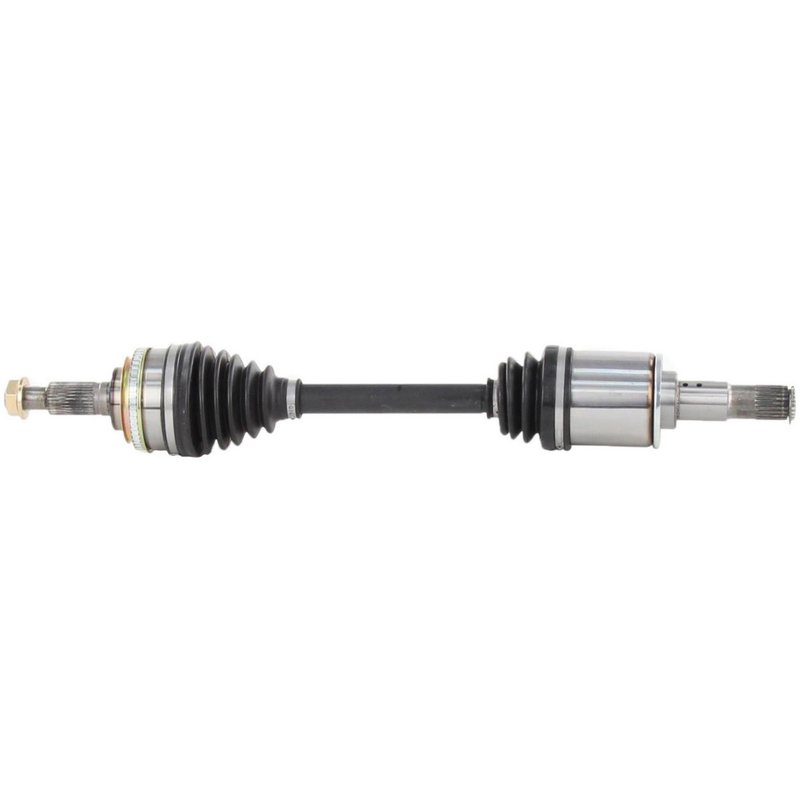

TrakMotive TO-8144 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8144

The TrakMotive CV Axle Shaft TO-8144 is engineered for reliable driveline performance in Toyota Camry and Solara models. Designed to meet OEM specifications, this new CV axle shaft ensures proper fit and function for your vehicle's front-wheel-drive system.

• Compatible with Toyota Camry and Solara models
• Includes ABS tone ring with 48 toothed abs ring teeth
• Neoprene boot material for enhanced durability
• Comes with a hex head axle nut (M22*1.5 thread size)
• Overall compressed length of 26.19 inches (665.2 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line features new CV axle shafts built with precise spline counts and connection styles to match specific vehicle requirements. The TO-8144 model includes a male inboard joint and a conventional outboard joint, ensuring compatibility with Toyota Camry and Solara front-wheel-drive systems.

Technical Specifications and Features

This CV axle shaft features a 48-tooth ABS ring with a toothed design, which is included to maintain accurate wheel speed sensor readings. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants. The axle nut included is a standard locking type with a hex head measuring 1 1/6 inches (29.8 mm) across flats and a height of 3/5 inches (15 mm), ensuring secure installation. The axle shaft has 24 inboard splines and 30 outboard splines, with a total compressed length of 26.19 inches (665.2 mm), matching OEM dimensions for proper fitment.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Camry and Solara
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boots
• Ensures secure wheel attachment with included axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8144, verify compatibility with your Toyota Camry or Solara model year. Use the included hex head axle nut with the specified M22*1.5 thread size and torque to manufacturer specifications. Inspect the neoprene boots for any damage during installation to maintain joint protection. Proper alignment of the male inboard joint and conventional outboard joint is essential for smooth driveline operation.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. TrakMotive ensures quality through precise manufacturing and material selection. While specific warranty details are not provided, the product is built to deliver reliable performance for Toyota Camry and Solara vehicles requiring driveline repairs.
