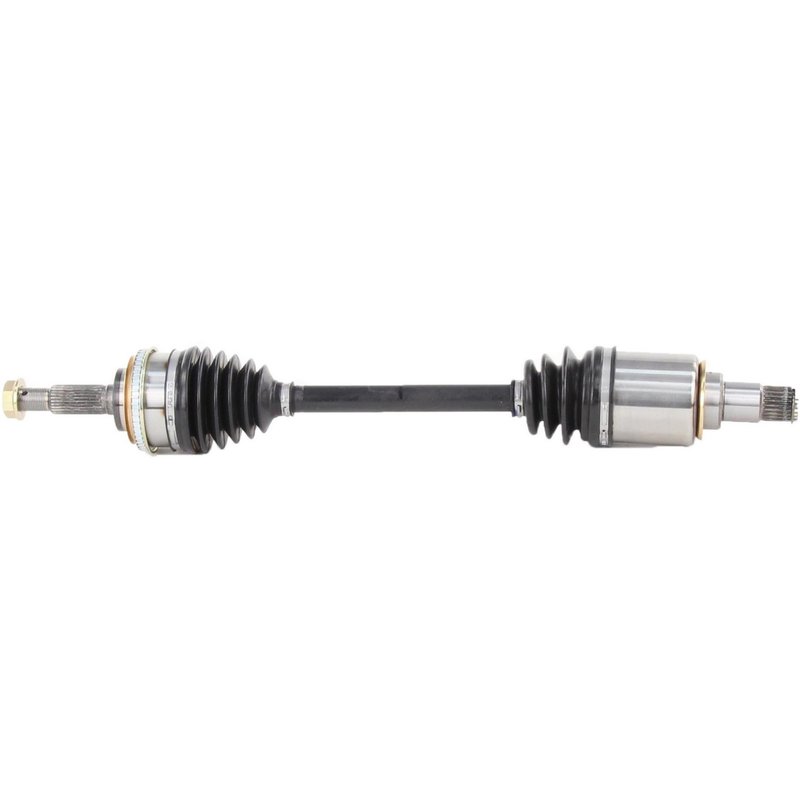

TrakMotive TO-8148 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8148 for Toyota Solara

The TrakMotive CV Axle Shaft TO-8148 is engineered specifically for Toyota Solara models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Toyota Solara vehicles
• Includes ABS tone ring with 48 toothed abs ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut included with M22*1.5 thread size
• Overall compressed length of 26.22 inches (666 mm)
• Male inboard joint and conventional outboard joint types
• 24 inboard splines and 26 outboard splines for secure shaft connection

Detailed Features of the TrakMotive CV Axle Shaft TO-8148

This CV Axle Shaft from TrakMotive is part of the CV Axle Shaft product line, which focuses on delivering precise driveline components tailored for specific vehicle applications. The TO-8148 model includes a toothed ABS ring with 48 teeth, which is essential for accurate wheel speed sensor readings and ABS functionality. The neoprene boot material offers resistance to wear and environmental factors, helping to protect the joint from contaminants and extend service life.

The axle nut included is a standard locking type with a hex head measuring 29.7 mm (1 1/6 inch) across flats and a height of 13.3 mm (1/2 inch). This nut has a thread size of M22*1.5 and a length of 34 mm (1 1/3 inch), ensuring secure fastening of the axle shaft assembly. The shaft features a male inboard joint connection with 24 splines and a conventional outboard joint with 26 splines, providing a reliable and precise fit for the Toyota Solara.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Toyota Solara
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates clicking or popping noises during turns caused by joint wear
• Prevents grease leaks and contamination with durable neoprene boot
• Resolves vibration or driveline imbalance issues related to axle shaft failure

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8148 on a Toyota Solara, ensure the axle nut is torqued to the manufacturer’s specifications to maintain proper locking and safety. Verify the ABS tone ring is correctly positioned to avoid sensor errors. Inspect the neoprene boot for any damage during installation to prevent premature failure. It is recommended to replace axle nuts with the included new nut to ensure secure fastening.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8148 is a new, not remanufactured, component designed to meet or exceed OEM standards. It undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship.
