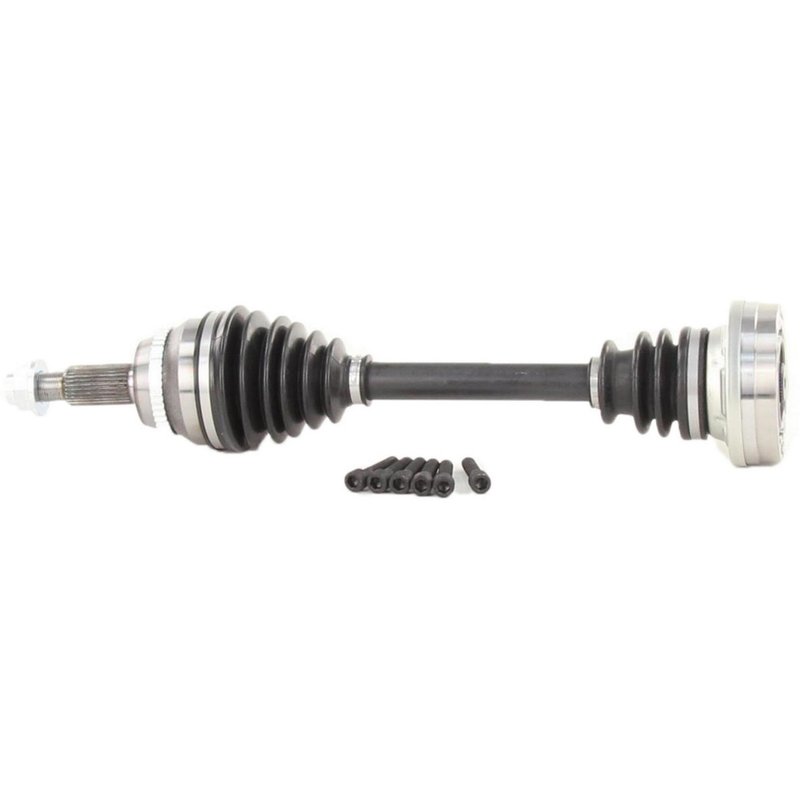

TrakMotive TO-8150 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8150 for Toyota Highlander

The TrakMotive CV Axle Shaft TO-8150 is engineered specifically for Toyota Highlander models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications and includes essential components for a complete installation.

• Compatible with Toyota Highlander vehicles
• Includes a neoprene boot for durability and protection
• Equipped with a 48-tooth ABS ring and tone ring included
• Comes with a stake locking hex axle nut (M22*1.5 thread size)
• Features bolt-on inboard joint with 6 bolt holes and Allen head bolts
• Overall compressed length of 21.85 inches (555 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed for direct replacement applications. This line emphasizes precise fitment and durability, incorporating features such as neoprene boots and ABS tone rings to ensure compatibility with vehicle safety systems. The TO-8150 model exemplifies these standards, offering a bolt-on inboard joint and conventional outboard joint connection styles for secure installation on Toyota Highlander models.

Technical Specifications and Features

The TO-8150 CV axle shaft includes a 48-tooth toothed ABS ring with the tone ring included, ensuring proper ABS sensor function. The axle nut is a hex head type, measuring 1 1/4 inches (32 mm) across flats, with a height of 1 inch (24 mm) and a length of 1 1/2 inches (37 mm). It uses a stake locking mechanism to maintain secure fastening. The inboard joint is bolt-on style with six Allen head bolts (M10*1.5 thread size) measuring 2 1/6 inches (55 mm) in length, providing a robust connection. The outboard joint is conventional with 30 splines, designed for reliable power transfer. The neoprene boot material offers resistance to wear and environmental factors, extending the service life of the axle shaft.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Highlander
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Addresses grease leakage issues by providing a durable neoprene boot
• Ensures secure wheel attachment with included stake locking axle nut

Installation Notes and Tips

• Verify vehicle compatibility with Toyota Highlander before installation
• Use proper torque specifications for the M22*1.5 axle nut and M10*1.5 inboard bolts
• Inspect surrounding suspension components during installation for wear
• Ensure ABS sensor alignment with the 48-tooth ABS ring for accurate readings
• Replace any damaged boots or seals to prevent premature failure

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8150 is a new, direct replacement part manufactured to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and inboard bolts for a complete installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance on Toyota Highlander vehicles.
