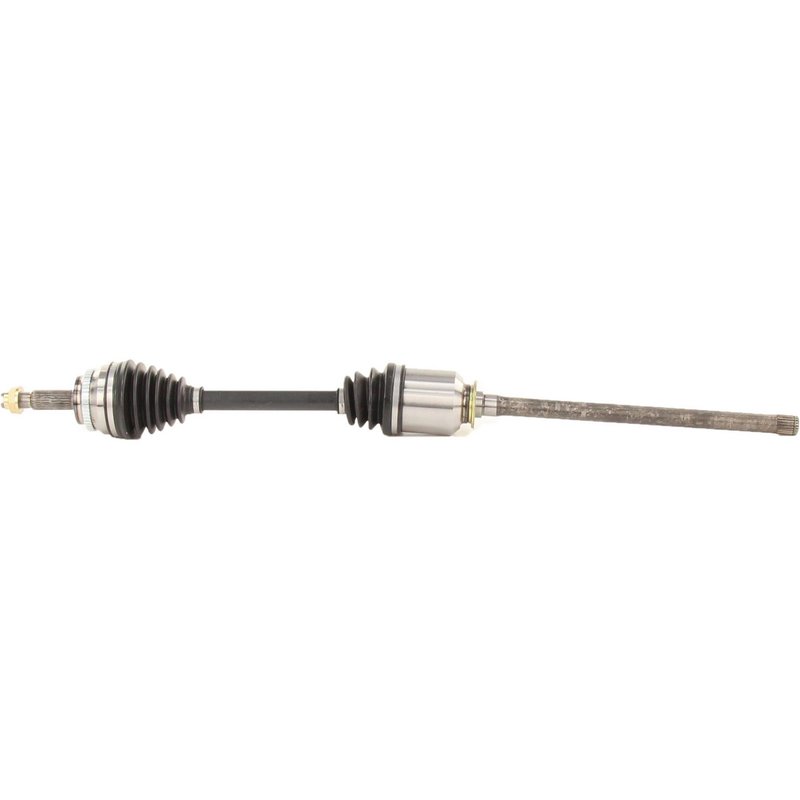

TrakMotive TO-8153 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-8153 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 39.44 |
| Overall Compressed Length (mm) | 1001.8 |
| Product line | CV Axle Shaft |
| Fits | Toyota · 14 vehicles |
OE direct replacement. New CV axle shaft built for straightforward replacement.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Comes with a toothed ring and axle nut for installation.
Cross-references Cardone New 66-5247HD, Cardone New 66-5249 and Cardone Reman 60-5249 for the same application. See all 20.
TrakMotive CV Axle Shaft for Toyota Highlander
TrakMotive TO-8153 is a new CV axle shaft for the front right position on 2001-2007 Toyota Highlander models. It is built for direct replacement service with the correct spline counts, axle nut specifications, and ABS tone ring details needed for this application.
Key Features
- Fits 2001-2007 Toyota Highlander, front right
- Part number: TO-8153
- New CV axle shaft from TrakMotive
- Inboard joint type: male
- Outboard joint type: conventional
- 23 inboard splines and 26 outboard splines
- ABS tone ring included; 48-tooth toothed ring
- Neoprene boot material
- Axle nut included with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
- Overall compressed length: 39.44 in (1001.8 mm)
Detailed Description
This TrakMotive CV axle shaft, TO-8153, is specified for the front right side of the 2001-2007 Toyota Highlander. It is a new axle assembly with a male inboard connection, conventional outboard joint, and the spline and axle nut details required for proper replacement in this vehicle platform. The included ABS tone ring uses a 48-tooth toothed design, and the axle nut is supplied with the correct M22 x 1.5 thread and 31.8 mm hex size.
TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. TO-8153 follows that product line approach with application-specific dimensions and hardware specifications for the Toyota Highlander front right axle position.
This part cross-references Cardone New 66-5247HD and 66-5249 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration during acceleration from a damaged axle shaft
- Torn or deteriorated axle boot with grease loss
- ABS warning concerns related to a failed tone ring or axle assembly
- Excessive drivetrain play from worn splines or joint wear
Installation Notes and Tips
Verify front right fitment against the vehicle’s original axle dimensions, spline counts, and ABS configuration before installation. Confirm axle nut thread size, hex size, and locking style match the original hardware requirements for the 2001-2007 Toyota Highlander. Inspect seals, hub condition, and surrounding suspension components during replacement to help ensure a proper repair.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part and states that it is produced by an ISO 9001:1007 and TS 16949:2009 certified company. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2007 | Toyota | Highlander | Limited | AWD | 3.3L | V6 | GAS | Front Right | CV Axle Shaft |
| 2007 | Toyota | Highlander | — | AWD | 2.4L | L4 | — | Front Right | CV Axle Shaft |
| 2006 | Toyota | Highlander | Limited | AWD | 3.3L | V6 | GAS | Front Right | CV Axle Shaft |
| 2006 | Toyota | Highlander | — | AWD | 2.4L | L4 | — | Front Right | CV Axle Shaft |
| 2005 | Toyota | Highlander | — | AWD | 3.3L | V6 | — | Front Right | CV Axle Shaft |
| 2005 | Toyota | Highlander | — | AWD | 2.4L | L4 | — | Front Right | CV Axle Shaft |
| 2004 | Toyota | Highlander | — | AWD | 3.3L | V6 | — | Front Right | CV Axle Shaft |
| 2004 | Toyota | Highlander | — | AWD | 2.4L | L4 | — | Front Right | CV Axle Shaft |
| 2003 | Toyota | Highlander | — | AWD | 3.0L | V6 | — | Front Right | CV Axle Shaft |
| 2003 | Toyota | Highlander | — | AWD | 2.4L | L4 | — | Front Right | CV Axle Shaft |
| 2002 | Toyota | Highlander | — | AWD | 3.0L | V6 | — | Front Right | CV Axle Shaft |
| 2002 | Toyota | Highlander | — | AWD | 2.4L | L4 | — | Front Right | CV Axle Shaft |
| 2001 | Toyota | Highlander | — | AWD | 3.0L | V6 | — | Front Right | CV Axle Shaft |
| 2001 | Toyota | Highlander | — | AWD | 2.4L | L4 | — | Front Right | CV Axle Shaft |
