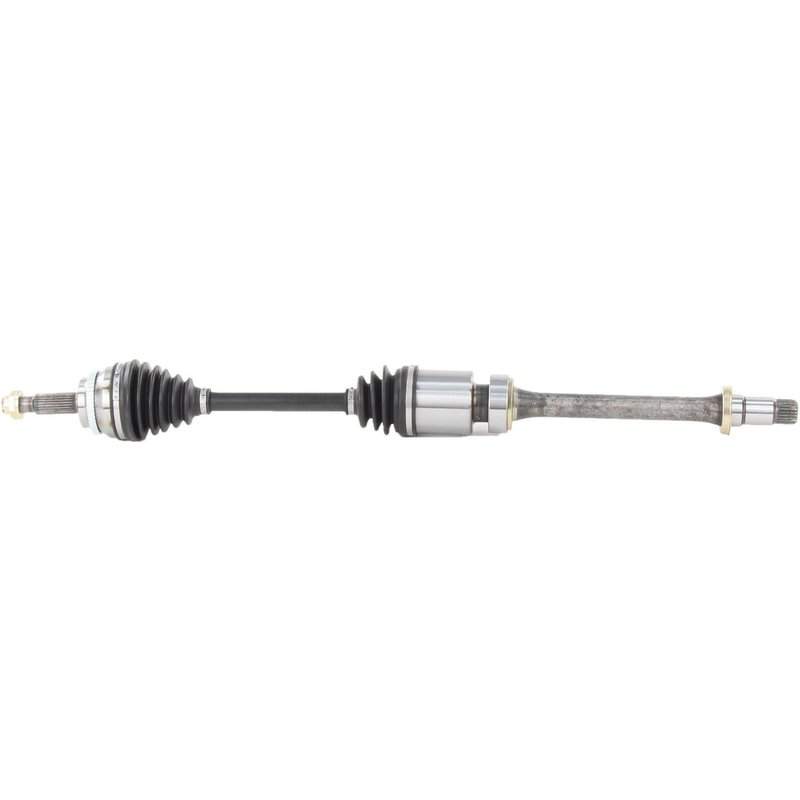

TrakMotive TO-8155 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8155

The TrakMotive CV Axle Shaft TO-8155 is engineered for reliable driveline performance in select Toyota and Scion vehicles. Designed specifically for models like the Toyota RAV4 and Scion tC, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Toyota RAV4 and Scion tC models
• Includes ABS tone ring with 48 toothed ring teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Comes with a hex head axle nut (M22*1.5 thread size) featuring a stake locking mechanism
• Overall compressed length of 37.28 inches (947 mm) for exact fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes precise engineering, including correct spline counts and joint types, to ensure compatibility and performance in driveline systems. The TO-8155 model exemplifies this approach with its male inboard joint and conventional outboard joint, tailored for specific Toyota and Scion applications.

Technical Specifications and Features

This CV axle shaft features a 48-tooth ABS ring with a toothed design, which is included to maintain accurate ABS sensor readings. The neoprene boot material provides resistance to wear and environmental factors, extending the life of the joint. The axle nut included is a hex type with a 1 1/4 inch (31.8 mm) hex size, 4/5 inch (20 mm) height, and 1 1/3 inch (34.4 mm) length, secured by a stake locking method to prevent loosening during operation. The inboard shaft connection is male with 24 splines, while the outboard shaft connection is conventional with 26 splines, ensuring proper engagement and torque transfer.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Toyota RAV4 and Scion tC
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included stake-locking axle nut

Installation Notes and Tips

Ensure compatibility by verifying vehicle make, model, and year before installation. Use proper tools to torque the axle nut to manufacturer specifications, taking care to stake the nut as required to secure it. Inspect the axle shaft splines and joints for damage during installation. The included ABS tone ring should be aligned correctly to maintain ABS sensor accuracy. It is recommended to replace axle nuts and boots if signs of wear are present during service.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8155 is a new, not remanufactured, component built to meet or exceed OEM standards. It undergoes quality control inspections to ensure dimensional accuracy and material integrity. While specific warranty details are not provided here, TrakMotive products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
