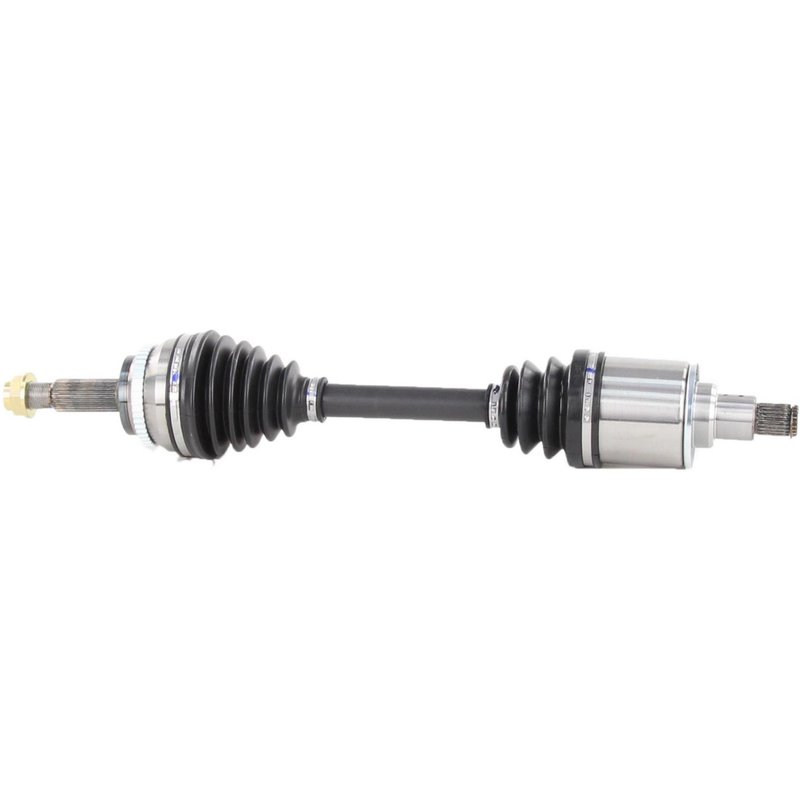

TrakMotive TO-8156 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-8156 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.35 |
| Overall Compressed Length (mm) | 593 |
| Product line | CV Axle Shaft |
| Fits | Toyota · 5 vehicles |
New CV axle shaft. Built as a direct replacement for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Ready for applications that use a toothed ABS setup.
Cross-references Cardone New 66-5241, Cardone Reman 60-5240 and Cardone Reman 60-5241 for the same application. See all 19.
TrakMotive TO-8156 CV Axle Shaft
The TrakMotive TO-8156 CV axle shaft is a new front left driveline replacement for 2001-2005 Toyota RAV4 models. Built for direct-fit service, it includes a 48-tooth toothed ABS ring with tone ring, a neoprene boot, and the correct axle nut for the application.
TrakMotive’s CV Axle Shaft line focuses on application-specific fitment and consistent manufacturing standards. This TO-8156 axle is produced by an ISO 9001:1007 and TS 16949:2009 certified company and is backed by a limited lifetime warranty.
Key Features
- Fits 2001-2005 Toyota RAV4, front left
- TrakMotive part number TO-8156
- New CV axle shaft for driveline repair
- 48-tooth toothed ABS ring with tone ring included
- Neoprene boot material
- Male inboard shaft connection style
- Conventional outboard joint and shaft connection style
- Includes axle nut with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
- Overall compressed length: 23.35 in. (593 mm)
- 23 inboard splines and 26 outboard splines
Detailed Description
Use the TrakMotive TO-8156 when replacing a worn or damaged front left CV axle shaft on a 2001-2005 Toyota RAV4. The axle is built with the correct spline counts, compressed length, and joint configuration for the listed application, helping maintain proper driveline operation and wheel-speed signal function where ABS is equipped. If you are searching for a Toyota RAV4 front left CV axle shaft, TO-8156 is the direct replacement part number to reference.
This part cross-references Cardone New 66-5241 for the same application.
Common Repair Symptoms
- Clicking or popping during turns
- Vibration during acceleration
- Grease leakage from a torn CV boot
- Worn splines or joint play at the axle shaft
- ABS-related wheel speed signal issues on equipped vehicles
Installation Notes and Tips
Verify front left fitment against the vehicle’s original axle before installation. Confirm spline count, axle nut thread size, and ABS ring configuration match the removed part. Inspect seals, hub condition, and related suspension components during service to help prevent repeat repairs. Torque the axle nut to the vehicle manufacturer’s specification and stake it as required.
Quality Assurance
TrakMotive manufactures this CV axle shaft under ISO 9001:1007 and TS 16949:2009 certified processes. The TO-8156 is a new part and includes a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Toyota | RAV4 | AWD | Front Left | CV Axle Shaft |
| 2004 | Toyota | RAV4 | AWD | Front Left | CV Axle Shaft |
| 2003 | Toyota | RAV4 | AWD | Front Left | CV Axle Shaft |
| 2002 | Toyota | RAV4 | AWD | Front Left | CV Axle Shaft |
| 2001 | Toyota | RAV4 | AWD | Front Left | CV Axle Shaft |
