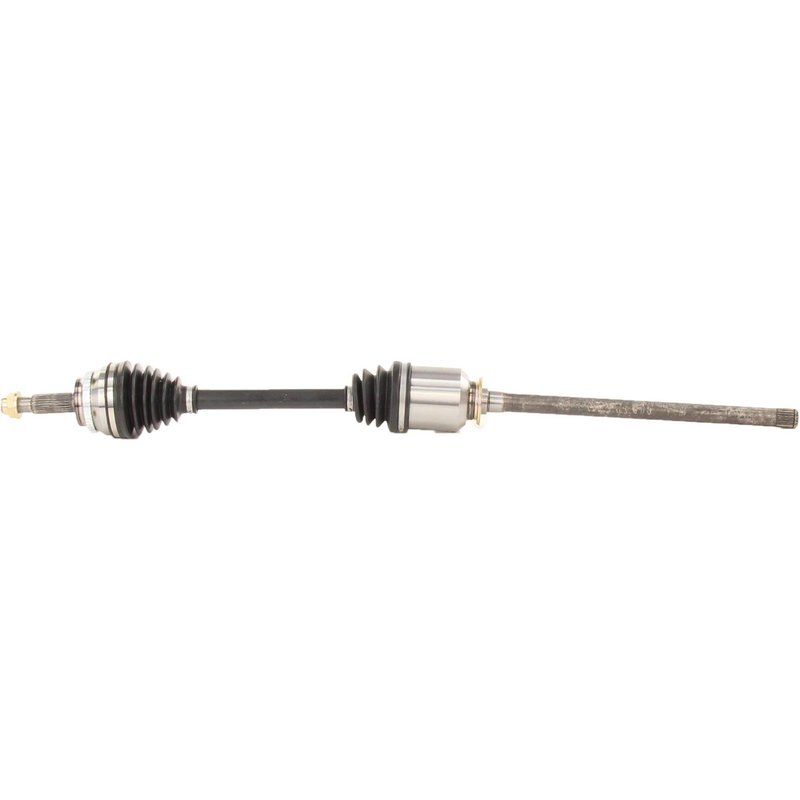

TrakMotive TO-8157 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8157 for Toyota RAV4

The TrakMotive CV Axle Shaft TO-8157 is engineered specifically for Toyota RAV4 models, providing reliable driveline performance. Designed as a new replacement part, it ensures proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Toyota RAV4 vehicles
• Includes ABS tone ring with 48 toothed ring teeth
• Equipped with a neoprene boot for durability
• Axle nut included with hex head and stake locking type
• Overall compressed length of 39.02 inches (991 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This CV axle shaft features a male inboard joint type with 23 splines and a conventional outboard joint with 26 splines, ensuring compatibility and smooth power transfer. The inclusion of a toothed ABS ring and tone ring supports accurate wheel speed sensor readings, essential for vehicle stability systems.

Technical Specifications and Features

This CV axle shaft (part number TO-8157) includes a neoprene boot designed to resist wear and environmental damage. The axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses an M22x1.5 thread size and features a stake locking mechanism to secure the nut firmly in place. The overall compressed length of 39.02 inches (991 mm) ensures proper fitment within the Toyota RAV4 driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota RAV4
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included axle nut and locking mechanism

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8157, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to avoid premature failure. This part is designed for direct replacement on compatible Toyota RAV4 models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8157 is a new, remanufactured-quality component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided, TrakMotive parts typically undergo rigorous quality control to ensure durability and performance in driveline applications.
