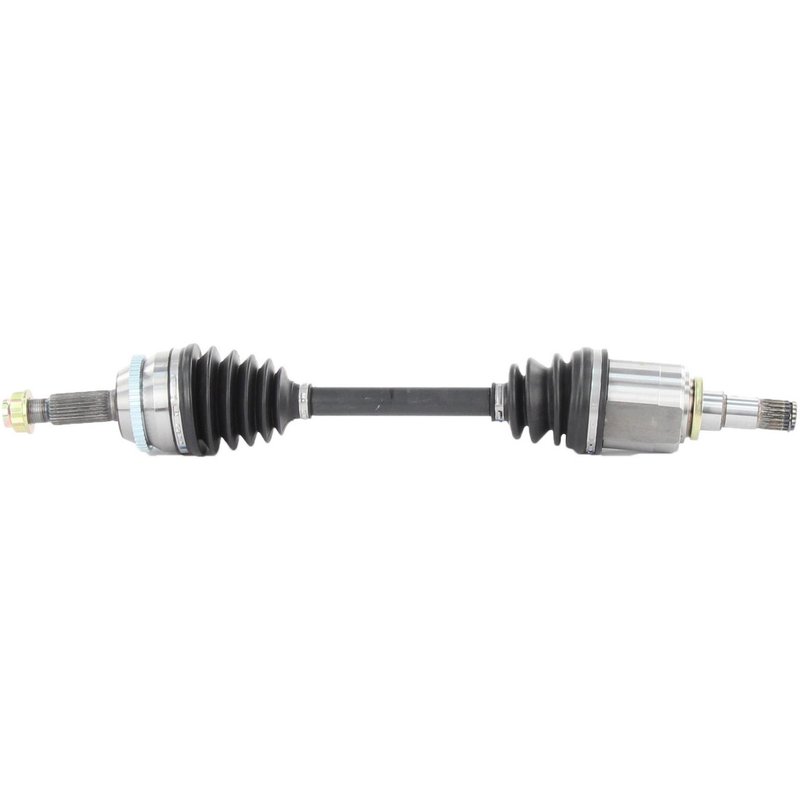

TrakMotive TO-8158 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8158 for Toyota Corolla

The TrakMotive CV Axle Shaft TO-8158 is engineered specifically for Toyota Corolla models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Toyota Corolla
• Part Number: TO-8158
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for durability and protection
• Hex head axle nut included with stake locking type
• Overall compressed length of 24.9 inches (632.5 mm)
• Male inboard joint and conventional outboard joint types
• Thread size M22 x 1.5 for axle nut

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to restore driveline integrity. This line emphasizes precise fitment and durability, featuring components such as neoprene boots and ABS tone rings to maintain vehicle safety systems. The TO-8158 model is part of this line, offering a complete axle shaft assembly with included axle nut and locking features tailored for Toyota Corolla applications.

Technical Specifications and Features

This CV axle shaft features a 48-tooth ABS ring with a toothed design, which is included to maintain proper ABS sensor function. The neoprene boot material provides resistance to wear and environmental damage, extending the life of the joint. The axle nut is a hex head type measuring 30 mm across flats, with a height of 21.5 mm and a length of 34.6 mm, secured by a stake locking mechanism to prevent loosening. The inboard joint uses a male connection style with 20 splines, while the outboard joint is conventional with 26 splines. The overall compressed length of 24.9 inches (632.5 mm) ensures correct fitment within the driveline assembly.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Toyota Corolla
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Secures axle assembly with included stake locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8158, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain sensor accuracy. Inspect the neoprene boots for any damage during installation to avoid premature failure. This part is designed for direct replacement on compatible Toyota Corolla models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8158 is a new, remanufactured-quality component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut with a stake locking feature for secure installation. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and performance in driveline applications.
