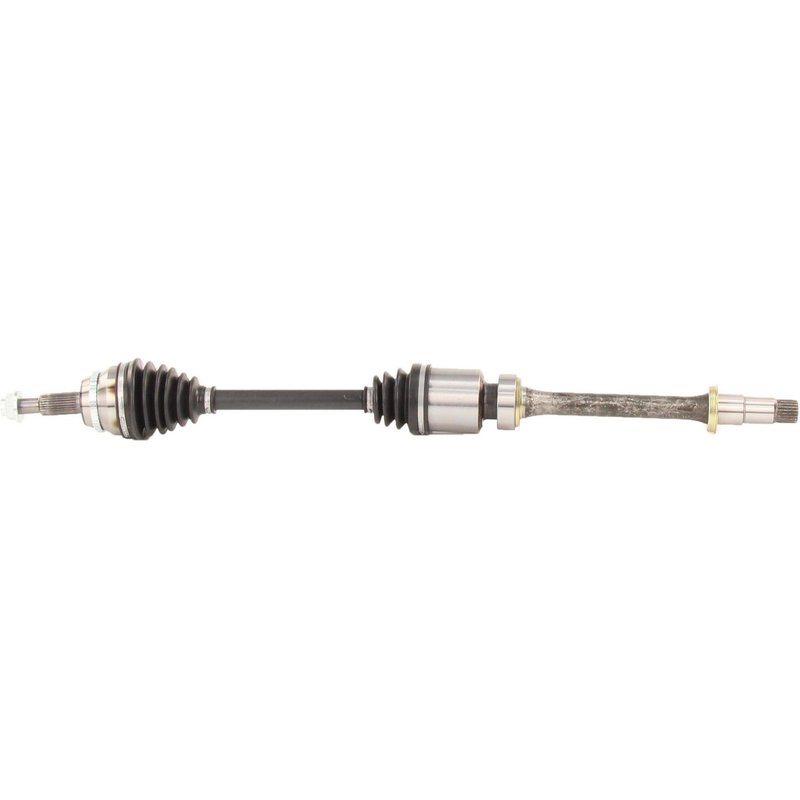

TrakMotive TO-8164 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8164

The TrakMotive CV Axle Shaft TO-8164 is engineered for reliable driveline performance in select Lexus and Toyota vehicles. Designed specifically for models like the Lexus ES350 and Toyota Avalon and Camry, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Lexus Avalon, Camry, and ES350 models
• Includes a neoprene boot for enhanced protection
• Equipped with a 48-tooth ABS ring and included tone ring
• Features a hex head axle nut with stake locking mechanism
• Overall compressed length of 38.58 inches (980 mm)

Detailed Product Features and Specifications

The TrakMotive CV Axle Shaft TO-8164 belongs to the CV Axle Shaft product line, which focuses on delivering precise driveline components tailored for specific vehicle applications. This CV axle shaft features a male inboard joint type with 24 splines and a conventional outboard joint with 30 splines, ensuring secure shaft connections. The included ABS tone ring with 48 teeth supports accurate wheel speed sensor readings, critical for ABS functionality.

The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 1 inch (24 mm) and a length of 1 1/2 inches (37 mm). It uses an M22x1.5 thread size and a stake locking mechanism to maintain secure fastening under operating conditions. The neoprene boot material provides resistance to wear and environmental factors, extending the service life of the joint.

Applications and Common Repair Solutions

• Replacement for worn or damaged CV axle shafts on Lexus ES350, Toyota Avalon, and Camry
• Restores proper ABS sensor function with included ABS tone ring
• Addresses axle nut fastening issues with included stake-locking hex nut
• Resolves driveline vibrations caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8164, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to avoid premature failure. This part is designed for direct replacement and should align with the original shaft connection styles: male inboard and conventional outboard.

Quality Assurance and Warranty Information

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. TrakMotive provides quality assurance through rigorous manufacturing controls. While specific warranty details are not provided here, the product is intended to offer reliable service life consistent with professional automotive repair standards.
