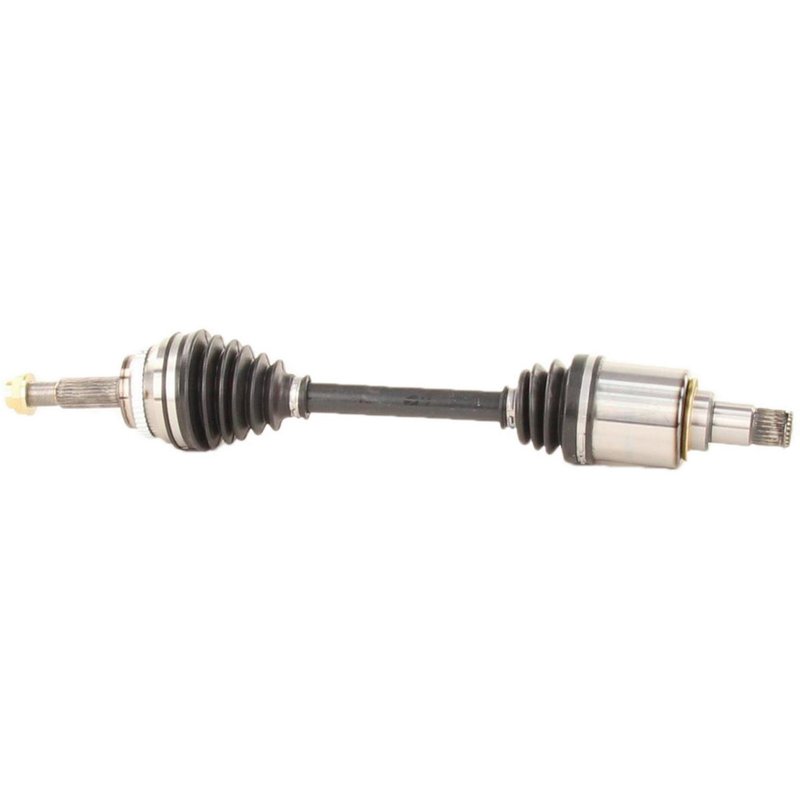

TrakMotive TO-8165 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8165 for Scion tC

The TrakMotive CV Axle Shaft TO-8165 is engineered specifically for the Scion tC, providing reliable driveline performance. This new CV axle shaft is designed to meet precise fitment requirements and ensure smooth power transfer from the transmission to the wheels.

• Compatible with Scion tC models
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for enhanced durability
• Stake locking axle nut with M22*1.5 thread size included
• Overall compressed length of 24.84 inches (631 mm)
• Male inboard joint and conventional outboard joint types
• 24 inboard splines and 26 outboard splines for secure shaft connection

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that maintain factory specifications. This CV axle shaft line includes features such as ABS tone rings and neoprene boots to ensure compatibility with modern vehicle safety systems and long-lasting performance. The TO-8165 model is part of this line, designed to fit the Scion tC with exacting standards for joint types and spline counts.

Technical Description and Specifications

The TO-8165 CV axle shaft features a 48-tooth ABS ring with a toothed design, which is included to work seamlessly with the vehicle’s anti-lock braking system. The axle nut is a hex head type, measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses a stake locking mechanism to secure the nut in place. The neoprene boot material offers resistance to wear and environmental factors, protecting the CV joints. The inboard joint is a male type with 24 splines, while the outboard joint is conventional with 26 splines, ensuring a secure and precise fit. The overall compressed length of the axle shaft is 24.84 inches (631 mm), matching the original equipment specifications for the Scion tC.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Scion tC
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Secures wheel attachment with included stake locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8165 on a Scion tC, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain ABS sensor accuracy. Inspect the neoprene boots for any damage during installation to avoid premature joint failure. Use appropriate tools for the hex head axle nut, sized at 1 1/4 inches (31.8 mm), to avoid rounding off the nut.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards. TrakMotive ensures quality through precise manufacturing and material selection, including durable neoprene boots and accurate spline counts. While specific warranty details are not provided here, TrakMotive products typically come with a limited warranty against defects in materials and workmanship.
