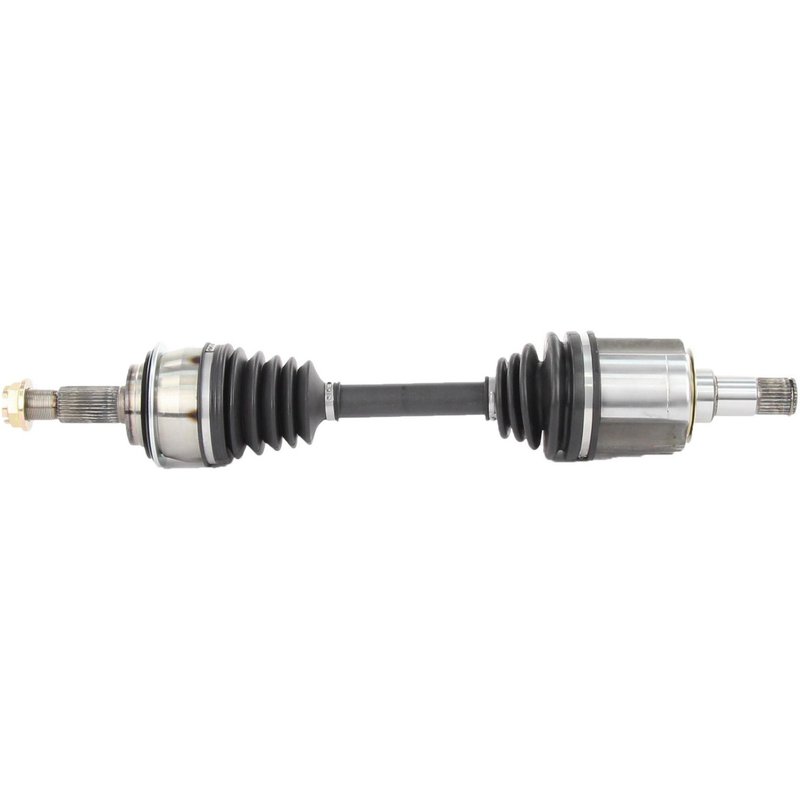

TrakMotive TO-8168 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft TO-8168

The TrakMotive CV Axle Shaft TO-8168 is designed for reliable driveline performance in select Lexus and Toyota models. Engineered to meet OEM specifications, this new axle shaft ensures proper fit and function for vehicles like the Lexus GX460 and Toyota Tacoma.

• Compatible with Lexus 4Runner, FJ Cruiser, GX460, GX470 and Toyota Tacoma
• Includes axle nut with cotter pin locking mechanism
• Neoprene boot material for enhanced durability
• Male inboard joint and conventional outboard joint types
• Overall compressed length of 25.43 inches (646 mm)
• Axle nut hex size 1 3/8 inches (35 mm) and height 4/5 inches (20.5 mm)
• Thread size M28*1.5 with 30 splines on both inboard and outboard ends

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, direct replacement constant velocity axle shafts that maintain vehicle driveline integrity. This line emphasizes precise fitment and durable materials, such as neoprene boots, to protect joints from contaminants and wear. The TO-8168 model exemplifies these qualities, providing a dependable solution for Lexus and Toyota vehicles requiring a male inboard joint and conventional outboard joint configuration.

Technical Specifications and Features

This CV axle shaft features a neoprene boot that offers resistance to environmental factors, extending the life of the joint. The axle nut included is a hex head type measuring 1 3/8 inches across flats, with a height of 4/5 inches and a length of 1 3/5 inches, secured by a cotter pin locking system to prevent loosening during operation. Both the inboard and outboard splines number 30, ensuring a secure connection to the drivetrain components. The overall compressed length of 25.43 inches (646 mm) matches OEM dimensions for proper installation and function.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Lexus 4Runner and GX series
• Fixes vibration or clicking noises during turns caused by failing CV joints
• Addresses grease leakage due to torn or degraded boots
• Restores driveline stability and smooth power transfer in Toyota Tacoma and FJ Cruiser
• Prevents axle nut loosening with included cotter pin locking mechanism

Installation Notes and Tips

Ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin provided. Verify the male inboard joint and conventional outboard joint align correctly with the vehicle’s drivetrain components. Inspect the neoprene boot for any damage during installation to maintain joint protection. This axle shaft is designed as a direct replacement, so no modifications should be necessary for compatible Lexus and Toyota models.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8168 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a high-quality neoprene boot and a secure axle nut with cotter pin locking to ensure long-term reliability. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
