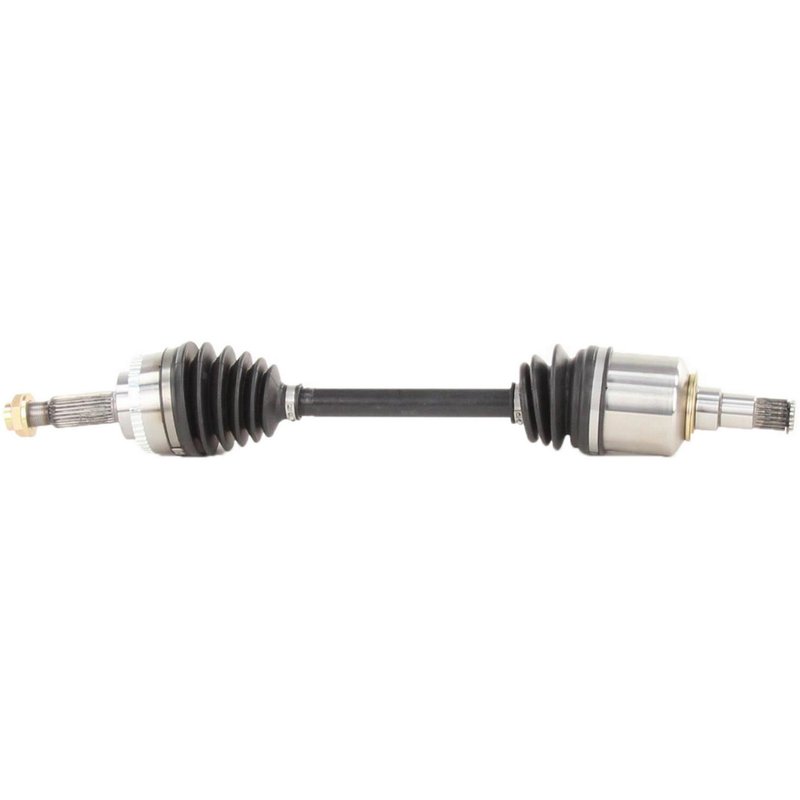

TrakMotive TO-8171 CV Axle Shaft - Rear Left
| Brand | TrakMotive TO-8171 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 20 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.76 |
| Overall Compressed Length (mm) | 629 |
| Product line | CV Axle Shaft |
| Fits | Toyota · 3 vehicles |
New axle shaft. Built with neoprene boot material for durable CV joint protection.
ABS tone ring included. Toothed ring with 48 teeth for integrated wheel speed sensing.
Hardware included. Axle nut comes with the assembly for a more complete install.
Cross-references TrakMotive TO-8171, 90-6135 and 4342017010 for the same application. See all 3.
TrakMotive TO-8171 CV Axle Shaft
TrakMotive TO-8171 is a new CV axle shaft for the rear left position on select 2003-2005 Toyota MR2 Spyder models. Built for driveline service, this axle includes the ABS tone ring and axle nut details needed for the listed application.
Key Features
- Direct-fit CV axle shaft for the rear left side
- Fits 2003-2005 Toyota MR2 Spyder, rear left
- New construction with a 24.76 in. (629 mm) overall compressed length
- Inboard male joint with 20 inboard splines
- Conventional outboard joint with 26 outboard splines
- Neoprene boot material for driveline protection
- ABS tone ring included; 48-tooth toothed ring
- Axle nut included with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
Product Details
This TrakMotive CV axle shaft is engineered for the Toyota MR2 Spyder rear left application listed above and is identified by part number TO-8171. It uses a male inboard shaft connection, a conventional outboard connection, and an ABS tone ring setup with 48 teeth. TrakMotive TO-8171 is also cross-referenced to 90-6135 and 4342017010 for the same application.
The TrakMotive CV Axle Shaft line focuses on replacement driveline components built to match vehicle-specific fitment requirements. For this Toyota MR2 Spyder application, the axle configuration, spline counts, compressed length, and axle nut specifications are all provided to support accurate parts matching.
Common Issues This Part Can Address
- Clicking or popping noises from a worn CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- ABS warning concerns related to a missing or incorrect tone ring
- Driveline play caused by spline or joint wear
Installation Notes and Quality Assurance
Verify rear left fitment on 2003-2005 Toyota MR2 Spyder models before installation. Confirm axle nut thread size, hex size, and locking style against the vehicle’s service requirements, and inspect mating components for wear before assembly. This axle is new and backed by TrakMotive’s limited lifetime warranty. TrakMotive also states ISO 9001:1007 and TS 16949:2009 certification for its manufacturing operations.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Toyota | MR2 Spyder | RWD | Rear Left | CV Axle Shaft |
| 2004 | Toyota | MR2 Spyder | RWD | Rear Left | CV Axle Shaft |
| 2003 | Toyota | MR2 Spyder | RWD | Rear Left | CV Axle Shaft |
