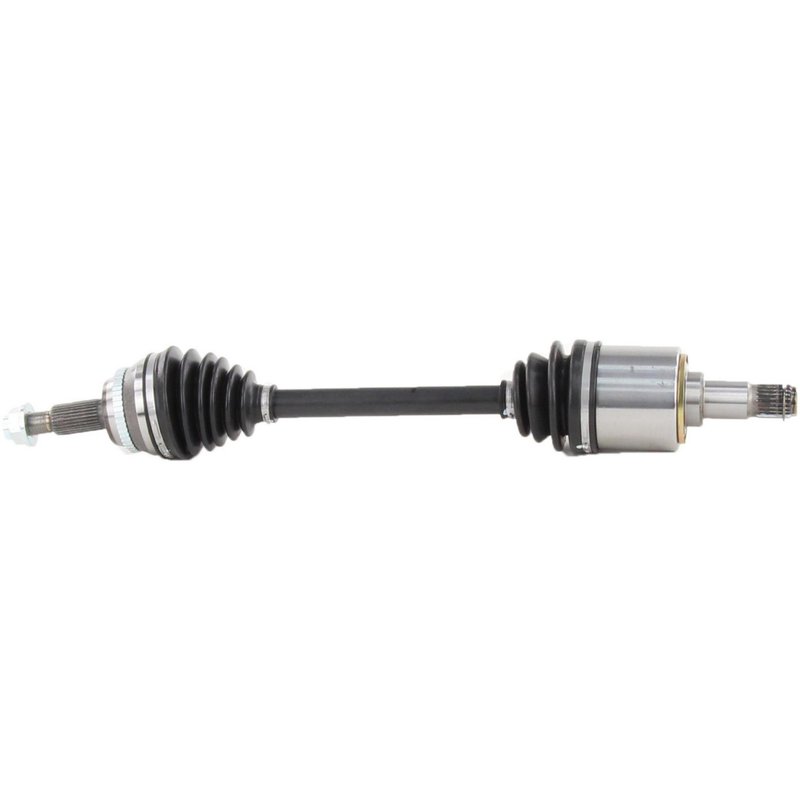

TrakMotive TO-8183 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8183 for Toyota Sienna

The TrakMotive CV Axle Shaft TO-8183 is designed specifically for Toyota Sienna models, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Toyota Sienna vehicles
• Includes a neoprene boot for enhanced protection
• Equipped with a 48-tooth ABS ring and included tone ring
• Axle nut with hex head, 1 1/2 inch length, and stake locking type
• Overall compressed length of 27.91 inches (709 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components engineered for precise fitment and reliable driveline operation. This line includes shafts with specific ABS ring configurations and durable neoprene boots to protect against contaminants and wear. The TO-8183 model exemplifies this approach with its detailed specifications tailored for Toyota Sienna applications.

Technical Specifications and Features

The TO-8183 CV axle shaft features a 48-tooth toothed ABS ring with an included tone ring, ensuring accurate wheel speed sensor readings for ABS functionality. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 1 1/2 inches (37 mm) and a thread size of M22x1.5. It uses a stake locking mechanism to secure the nut firmly in place. The neoprene boot material offers resistance to heat and environmental factors, extending the joint's service life. The inboard joint is a male type with 24 splines, while the outboard joint is conventional with 30 splines, providing a secure connection to the drivetrain components. The overall compressed length of 27.91 inches (709 mm) ensures proper fitment within the Toyota Sienna's driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Sienna
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included axle nut and stake locking

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8183, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Inspect the axle splines for damage before installation to guarantee a secure fit. The neoprene boot should be checked for any signs of damage during installation to maintain joint protection. Proper alignment of the ABS tone ring is critical for accurate sensor readings.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. The inclusion of a neoprene boot and precise ABS ring design supports long-term reliability. Warranty details are provided by the manufacturer and typically cover defects in materials and workmanship under normal use conditions.
