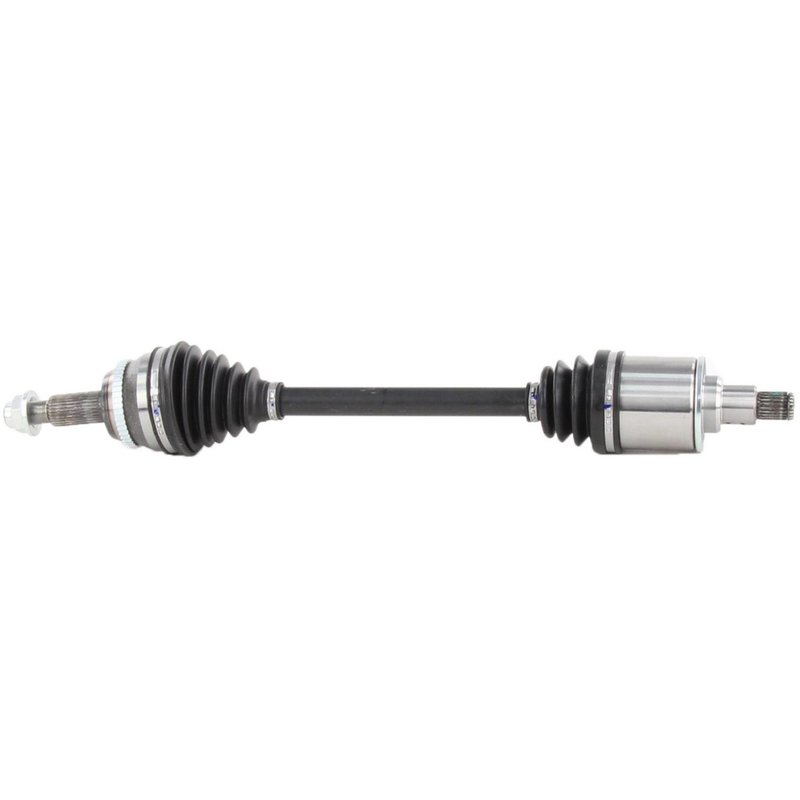

TrakMotive TO-8186 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8186 for Toyota Sienna

The TrakMotive CV Axle Shaft TO-8186 is engineered specifically for Toyota Sienna models, providing reliable driveline performance. Designed as a new replacement part, it ensures proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Toyota Sienna vehicles
• Part number TO-8186 for precise identification
• Includes a neoprene boot for durability and protection
• Equipped with a 48-tooth ABS ring and included tone ring
• Comes with a hex head axle nut (M22*1.5 thread size) with stake locking
• Overall compressed length of 26.93 inches (684 mm)
• Inboard joint type: Male with 23 splines; Outboard joint type: Conventional with 30 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components designed to meet OEM specifications. This CV Axle Shaft line includes features such as neoprene boots for enhanced resistance to wear and environmental factors, and precise spline counts for secure shaft connections. The TO-8186 model exemplifies this line by combining durability with exact fitment for Toyota Sienna vehicles.

Technical Specifications and Features

This CV axle shaft features a 48-tooth ABS ring with a toothed design, which includes the ABS tone ring to maintain accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 1 inch (24 mm) and a length of 1 1/2 inches (37 mm). It uses a stake locking mechanism to ensure secure fastening. The inboard joint is male type with 23 splines, while the outboard joint is conventional with 30 splines, providing compatibility with the Toyota Sienna's driveline system. The neoprene boot material offers resistance to cracking and environmental damage, extending the service life of the joint.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Sienna
• Resolves issues related to clicking or popping noises during turns
• Addresses vibration or shuddering caused by faulty CV joints
• Fixes grease leaks due to torn or degraded boots
• Restores proper ABS sensor function with included tone ring

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify the part number TO-8186 matches your Toyota Sienna's specifications. Use the included axle nut with the correct M22*1.5 thread size and stake locking method to secure the axle shaft. Inspect the neoprene boot for any damage during installation and apply appropriate grease to the CV joints. Proper torque specifications should be followed to avoid premature wear or failure.

Quality Assurance and Warranty Information

The TrakMotive CV Axle Shaft TO-8186 is a new, remanufactured-free component designed to meet or exceed OEM standards. It includes a neoprene boot and ABS tone ring to maintain system integrity. While specific warranty details are not provided here, TrakMotive products typically come with manufacturer-backed quality assurance to ensure reliable performance in Toyota Sienna vehicles.
