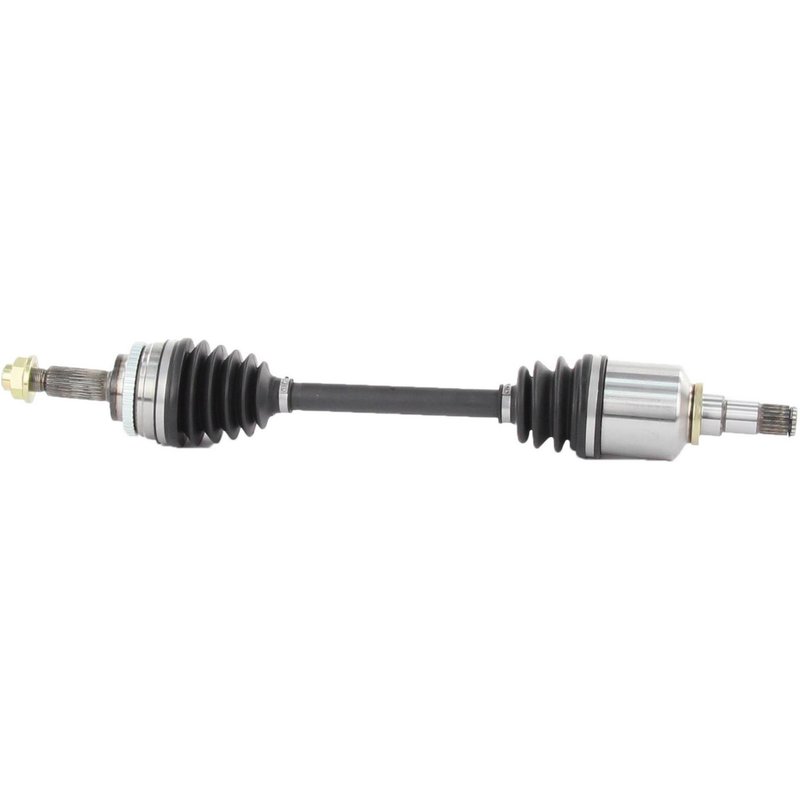

TrakMotive TO-8202 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-8202 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 20 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.67 |
| Overall Compressed Length (mm) | 652 |
| Product line | CV Axle Shaft |
| Fits | Toyota · 6 vehicles |
New CV axle shaft. Direct replacement for a straightforward driveline refresh.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring for ABS-equipped applications.
Cross-references Cardone New 66-5266, Cardone Reman 60-5266 and Four Seasons 5002N for the same application. See all 16.
TrakMotive TO-8202 CV Axle Shaft
The TrakMotive TO-8202 CV axle shaft is a new front left driveline replacement for select 2004-2009 Toyota Prius models. It is built with a neoprene boot, a toothed ABS tone ring, and the correct spline and joint configuration for the listed application.
Key Features
- Fits 2004-2009 Toyota Prius, front left
- New CV axle shaft for driveline and axle service
- ABS tone ring included with 48-tooth toothed ring
- Neoprene boot material for joint protection
- Male inboard shaft connection with conventional outboard joint
- 20 inboard splines and 26 outboard splines
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and stake locking type
- Overall compressed length: 25.67 in. (652 mm)
Product Details
TrakMotive CV Axle Shaft TO-8202 is built for the front left position on the Toyota Prius from 2004 through 2009. The axle uses a male inboard connection, a conventional outboard shaft connection, and an ABS tone ring to match the listed vehicle application. TrakMotive identifies this part as a new unit and notes that ABS axles fit non-ABS applications unless otherwise noted. The brand line focuses on CV axle shaft applications, making this part a direct driveline replacement for Prius owners addressing worn or damaged axle components. This part cross-references Cardone New 66-5266 and Four Seasons 5002N for the same application.
Common Repair Uses
- Front left axle noise during acceleration or turning
- Vibration caused by worn CV joints
- Clicking or popping from a damaged axle assembly
- ABS-related axle replacement on the listed Prius fitment
- Restoring driveline function after boot or joint wear
Installation Notes
Verify the front left position, spline count, axle nut thread size, and overall compressed length before installation. Confirm ABS tone ring requirements against the vehicle’s original equipment setup. Inspect related components such as hub, seals, and suspension hardware during axle replacement to help ensure proper fit and operation on the Toyota Prius.
Quality Assurance
TrakMotive states this CV axle shaft is backed by a limited lifetime warranty. The company is ISO 9001:1007 and TS 16949:2009 certified, reflecting controlled manufacturing and quality management practices for driveline components.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Toyota | Prius | Front Left | CV Axle Shaft |
| 2008 | Toyota | Prius | Front Left | CV Axle Shaft |
| 2007 | Toyota | Prius | Front Left | CV Axle Shaft |
| 2006 | Toyota | Prius | Front Left | CV Axle Shaft |
| 2005 | Toyota | Prius | Front Left | CV Axle Shaft |
| 2004 | Toyota | Prius | Front Left | CV Axle Shaft |
