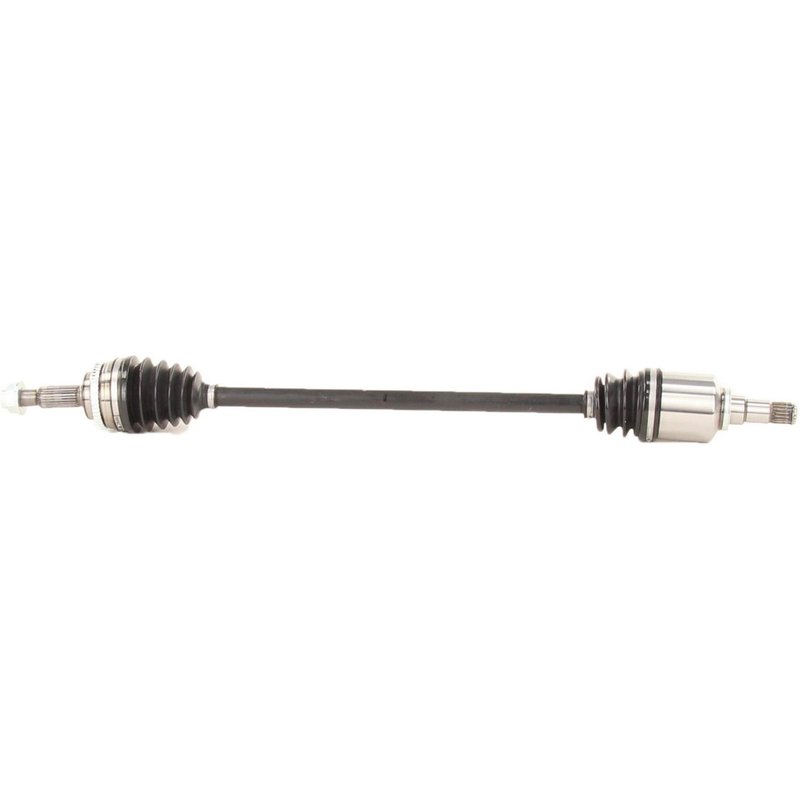

TrakMotive TO-8203 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8203 for Toyota Prius

The TrakMotive CV Axle Shaft TO-8203 is engineered specifically for Toyota Prius models, providing reliable driveline performance. This new CV axle shaft is designed to meet precise fitment requirements and ensure smooth power transfer from the transmission to the wheels.

• Compatible with Toyota Prius vehicles
• Includes a 48-tooth ABS ring with a toothed design
• Equipped with a neoprene boot for durability and protection
• Comes with a hex head axle nut (M22*1.5 thread size) included
• Overall compressed length of 35.94 inches (913 mm)
• Features male inboard joint and conventional outboard joint types
• New, not remanufactured, for assured quality and longevity

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. This CV Axle Shaft line emphasizes compatibility and durability, incorporating features such as ABS tone rings and neoprene boots to maintain optimal performance and safety. The TO-8203 model exemplifies this approach by integrating a 48-tooth ABS ring and a stake-type locking axle nut to ensure secure installation and reliable operation in Toyota Prius vehicles.

Technical Specifications and Features

The TO-8203 CV Axle Shaft includes a 48-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The included ABS tone ring supports anti-lock braking system functionality. The axle nut is a hex head type with a 1 1/4 inch (32 mm) hex size, 1 inch (24 mm) height, and a length of 1 1/2 inches (37 mm), featuring a stake locking mechanism to prevent loosening during operation. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint uses a male connection style with 20 splines, while the outboard joint is conventional with 26 splines, ensuring proper fit and torque transfer. The overall compressed length of 35.94 inches (913 mm) matches Toyota Prius specifications for direct replacement.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Prius
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration or clicking noises during turns
• Addresses grease leakage or torn CV boots with durable neoprene material
• Prevents axle nut loosening with stake locking design

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8203 on a Toyota Prius, ensure the axle nut is torqued to manufacturer specifications and properly staked to secure the locking mechanism. Verify the ABS tone ring is correctly positioned to maintain sensor accuracy. Inspect the neoprene boot for any damage during installation to prevent premature failure. Use appropriate tools for the hex head axle nut (1 1/4 inch or 32 mm) to avoid rounding off the nut.

Quality Assurance and Warranty

This CV Axle Shaft is a new, not remanufactured, component manufactured to meet OEM standards for fit and function. The inclusion of a neoprene boot and stake locking axle nut reflects attention to durability and safety. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Toyota Prius driveline applications.
