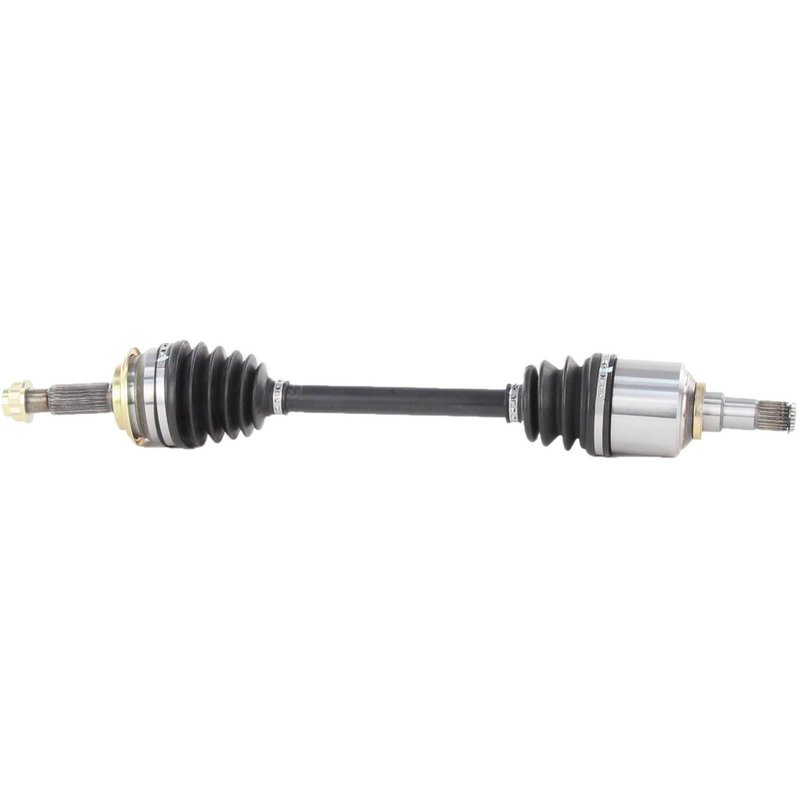

TrakMotive TO-8204 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-8204 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 21.5 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.71 |
| Overall Compressed Length (mm) | 653 |
| Product line | CV Axle Shaft |
| Fits | Toyota · 14 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot. Helps protect the joint from dirt and moisture.
Axle nut included. Saves time by supplying the matching hardware.
Cross-references Cardone New 66-5277, Cardone Reman 60-5277 and TrakMotive TO-8204 for the same application. See all 18.
TrakMotive CV Axle Shaft for Toyota Yaris
The TrakMotive TO-8204 CV axle shaft is a new front left driveline replacement for select Toyota Yaris applications. It is built for 2006-2017 Toyota Yaris and 2018-2019 Toyota Yaris Standard Duty Replacement applications, with fitment focused on the front left position.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: TO-8204
- New replacement axle shaft for driveline and axle service
- Front left position application
- Overall compressed length: 25.71 in. (653 mm)
- Inboard joint type: Male
- Outboard joint type: Conventional
- Boot material: Neoprene
- Includes axle nut with M22 x 1.5 thread, 30 mm hex size, stake locking type
- 23 inboard splines and 26 outboard splines
- ABS tone ring not included
Product Details
TrakMotive TO-8204 is a CV axle shaft for Toyota Yaris front left applications. The axle uses a male inboard shaft connection and a conventional outboard connection, with a neoprene boot and a compressed length of 25.71 inches. This part number is listed for 2006-2017 Toyota Yaris and 2018-2019 Toyota Yaris Standard Duty Replacement service, making it a direct-fit driveline option for common front axle replacement needs on the Toyota Yaris.
TrakMotive positions this CV axle shaft line as a new replacement component backed by manufacturing controls from an ISO 9001:1007 and TS 16949:2009 certified company. The TO-8204 also cross-references Cardone New 66-5277 and Cardone Reman 60-5277 for the same application.
Common Problems This Part Addresses
- Clicking or popping during turns from a worn front CV axle
- Vibration or shudder during acceleration
- Torn axle boot with grease loss and joint contamination
- Excessive play or noise from a failing front left axle assembly
- Driveline wear on Toyota Yaris front axle service
Installation Notes
Verify spline count, axle length, and axle nut specifications before installation. This axle includes an axle nut with a 30 mm hex size and M22 x 1.5 thread. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing. Confirm front left fitment for your Toyota Yaris before replacing the original axle shaft.
Quality Assurance
TrakMotive TO-8204 is a new CV axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. It is covered by a limited lifetime warranty.
| Year | Make | Model | Body Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Toyota | Yaris | Hatchback | Manual | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Toyota | Yaris | Hatchback | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Toyota | Yaris | Hatchback | — | Front Left | CV Axle Shaft |
| 2016 | Toyota | Yaris | Hatchback | — | Front Left | CV Axle Shaft |
| 2015 | Toyota | Yaris | Hatchback | — | Front Left | CV Axle Shaft |
| 2014 | Toyota | Yaris | Hatchback | — | Front Left | CV Axle Shaft |
| 2013 | Toyota | Yaris | Hatchback | — | Front Left | CV Axle Shaft |
| 2012 | Toyota | Yaris | — | — | Front Left | CV Axle Shaft |
| 2011 | Toyota | Yaris | — | — | Front Left | CV Axle Shaft |
| 2010 | Toyota | Yaris | — | — | Front Left | CV Axle Shaft |
| 2009 | Toyota | Yaris | — | — | Front Left | CV Axle Shaft |
| 2008 | Toyota | Yaris | — | — | Front Left | CV Axle Shaft |
| 2007 | Toyota | Yaris | — | — | Front Left | CV Axle Shaft |
| 2006 | Toyota | Yaris | — | — | Front Left | CV Axle Shaft |
