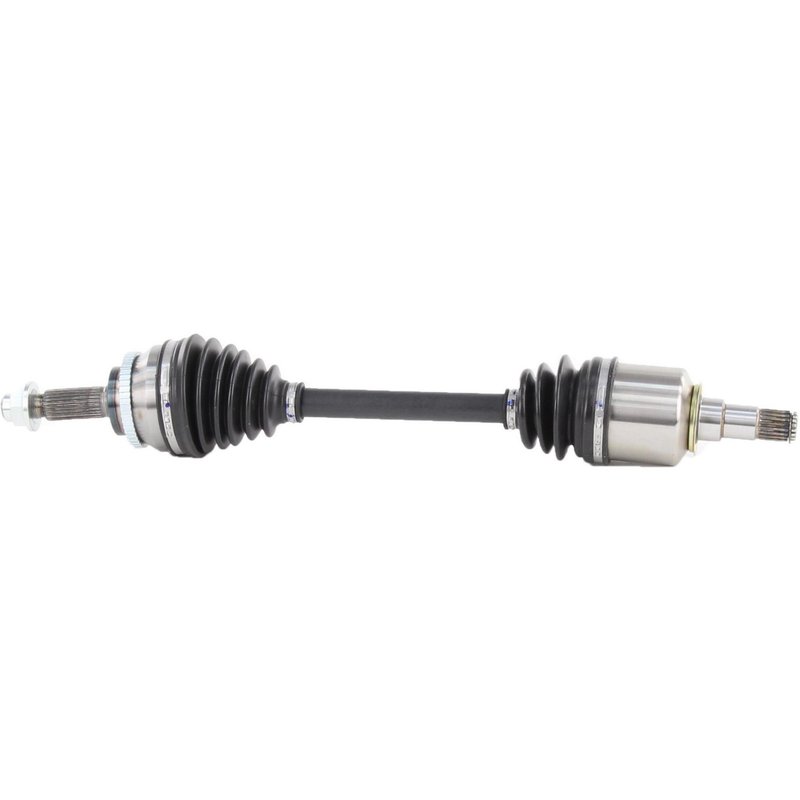

TrakMotive TO-8206 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8206

The TrakMotive CV Axle Shaft TO-8206 is engineered for reliable driveline performance in Pontiac Matrix and Toyota Vibe vehicles. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Pontiac Matrix and Toyota Vibe models
• Includes a neoprene boot for enhanced joint protection
• Equipped with a 48-tooth ABS ring and included tone ring
• Comes with a hex head axle nut (M22*1.5 thread size) featuring a stake locking mechanism
• Overall compressed length of 25.2 inches (640 mm) for exact fit

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes precise engineering, including correct spline counts and joint types, to ensure compatibility and performance in specific vehicle applications such as the Pontiac Matrix and Toyota Vibe. The TO-8206 model features both male inboard joint and conventional outboard joint types, aligning with factory standards for driveline components.

Technical Specifications and Features

This CV axle shaft features a neoprene boot material that provides resistance to wear and environmental factors, extending the life of the joint. The inboard joint uses a male connection style with 20 splines, while the outboard joint is conventional with 26 splines, ensuring secure and stable driveline operation. The included ABS ring has 48 teeth and a toothed design, complete with an ABS tone ring to maintain proper wheel speed sensor function. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, 1 inch (24 mm) in height, and 1 1/2 inches (37 mm) in length, with a stake locking feature to prevent loosening during operation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Pontiac Matrix and Toyota Vibe
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8206, verify compatibility with your Pontiac Matrix or Toyota Vibe model year and drivetrain configuration. Use proper torque specifications for the M22*1.5 axle nut and stake the nut as required to secure it in place. Inspect the axle shaft splines and joints for proper engagement during installation. Ensure the ABS tone ring is correctly positioned to maintain sensor accuracy.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component manufactured to meet or exceed OEM standards. The inclusion of a neoprene boot and ABS tone ring supports long-term reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure dependable performance in Pontiac Matrix and Toyota Vibe vehicles.
