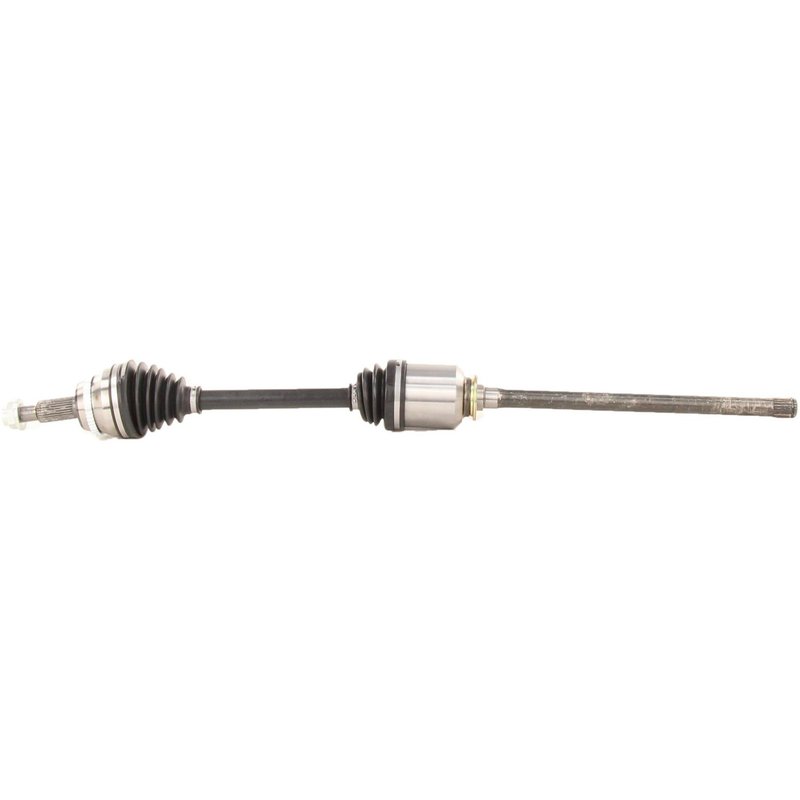

TrakMotive TO-8207 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-8207 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 39.45 |
| Overall Compressed Length (mm) | 1002 |
| Product line | CV Axle Shaft |
| Fits | Lexus · 6 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for durable sealing.
ABS tone ring included. Built with a toothed ring and 48 teeth for ABS applications.
Hardware included. Comes with an axle nut for easier installation.
Cross-references Cardone New 66-5256, Cardone Reman 60-5256 and TrakMotive TO-8207 for the same application. See all 12.
Front Right CV Axle Shaft for Lexus RX
TrakMotive TO-8207 is a new CV axle shaft for the front right position on select Lexus RX models. It is built with a neoprene boot, a toothed ABS tone ring, and the correct spline and nut specifications for direct replacement service on the listed applications.
Key Features
- Fits 2007-2009 Lexus RX350, front right
- Fits 2004-2006 Lexus RX330, front right
- New CV axle shaft for driveline and axle repair
- 48-tooth toothed ABS ring with tone ring included
- Male inboard shaft connection with conventional outboard joint
- 23 inboard splines and 30 outboard splines
- Neoprene boot material for axle joint protection
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and stake locking type
- Overall compressed length: 39.45 in. (1002 mm)
Product Details
This TrakMotive CV axle shaft, part number TO-8207, is engineered for front right replacement on Lexus RX330 and Lexus RX350 applications listed above. The axle uses a male inboard shaft connection, a conventional outboard joint, and an ABS tone ring with 48 teeth. TrakMotive identifies this axle as a new unit and notes that ABS axles fit non-ABS applications unless otherwise noted. The TO-8207 also cross-references Cardone New 66-5256 and Cardone Reman 60-5256 for the same application.
What It Helps Fix
- Clicking or popping noises during turns from worn CV joints
- Vibration or shudder during acceleration from axle wear
- Grease leakage from a damaged axle boot
- ABS-related drivability issues tied to a worn tone ring or sensor input
- Excessive play in the front right driveline assembly
Installation Notes and Tips
Verify spline count, axle length, nut thread size, and ABS ring configuration before installation. Confirm front right placement on the vehicle and inspect related seals, hub components, and suspension hardware for wear before fitting the new axle. Always follow the vehicle service procedure for axle nut staking and torque specifications.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part and states that its products are backed by a limited lifetime warranty. The company also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality management practices.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Lexus | RX350 | AWD | Front Right | CV Axle Shaft |
| 2008 | Lexus | RX350 | AWD | Front Right | CV Axle Shaft |
| 2007 | Lexus | RX350 | AWD | Front Right | CV Axle Shaft |
| 2006 | Lexus | RX330 | AWD | Front Right | CV Axle Shaft |
| 2005 | Lexus | RX330 | AWD | Front Right | CV Axle Shaft |
| 2004 | Lexus | RX330 | AWD | Front Right | CV Axle Shaft |
