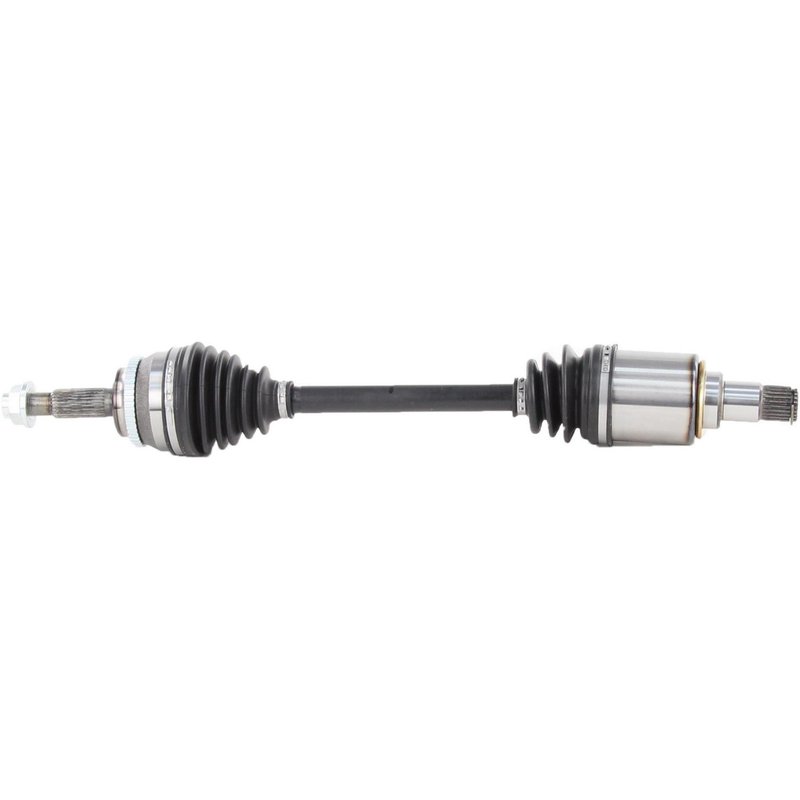

TrakMotive TO-8212 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8212 for Toyota Camry

The TrakMotive CV Axle Shaft TO-8212 is engineered specifically for Toyota Camry models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Toyota Camry vehicles
• Includes a neoprene boot for durability and protection
• Equipped with a 48-tooth ABS ring and included tone ring
• Axle nut with hex head, 1 1/4 inch hex size, and stake locking type
• Overall compressed length of 26.42 inches (671 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line features new CV axle shafts built with precise splines and durable materials, such as neoprene boots, to ensure long-lasting performance. The TO-8212 model includes both inboard and outboard joints with male and conventional connection styles, respectively, tailored for Toyota Camry applications.

Technical Specifications and Features

The TO-8212 CV axle shaft includes a 48-tooth ABS ring with a toothed design and an included ABS tone ring, which supports accurate wheel speed sensor readings. The axle nut is a hex head type with a 1 1/4 inch (32 mm) hex size, 1 inch (24 mm) height, and 1 1/2 inch (37 mm) length, featuring a stake locking mechanism for secure installation. The neoprene boot material offers resistance to wear and environmental factors. The inboard joint is male type with 24 splines, while the outboard joint is conventional with 26 splines, ensuring proper engagement and driveline stability.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Toyota Camry
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included axle nut

Installation Notes and Tips

When installing the TrakMotive TO-8212 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to avoid premature failure. This part is designed for direct replacement on compatible Toyota Camry models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8212 is a new, remanufactured-free component built to meet or exceed OEM standards. It includes an axle nut and ABS tone ring to provide a complete solution. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and fitment accuracy for Toyota Camry vehicles.
