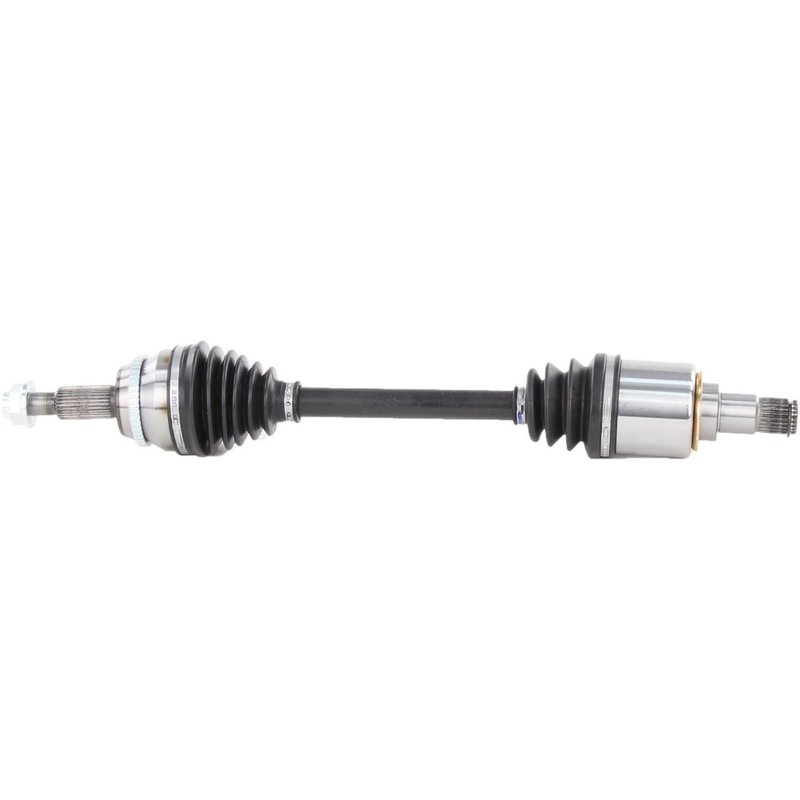

TrakMotive TO-8213 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft TO-8213

The TrakMotive CV Axle Shaft TO-8213 is engineered for reliable driveline performance in select Lexus and Toyota vehicles. Designed specifically for models like the Lexus ES350 and Toyota Avalon and Camry, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Lexus Avalon, Camry, and ES350 models
• Includes a neoprene boot for enhanced protection
• Equipped with a 48-tooth ABS ring and included tone ring
• Comes with a hex head axle nut (M22*1.5 thread size) featuring a stake locking mechanism
• Overall compressed length of 25.87 inches (657 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes precise engineering, including specific spline counts and joint types to ensure compatibility and performance. The TO-8213 model features a male inboard joint and a conventional outboard joint, reflecting the line's attention to fitment accuracy for Lexus and Toyota driveline systems.

Technical Specifications and Features

This CV axle shaft features a neoprene boot material that offers resistance to wear and environmental factors, extending the life of the joint. The ABS ring is a toothed type with 48 teeth, and the tone ring is included to maintain proper ABS sensor function. The axle nut included is a hex head type with a 1 1/4 inch (32 mm) hex size, 1 inch (24 mm) height, and 1 1/2 inch (37 mm) length, secured with a stake locking mechanism to prevent loosening during operation. The shaft has 24 inboard splines and 30 outboard splines, ensuring a secure connection to the drivetrain components.

Applications and Problem Solving

• Replaces worn or damaged CV axle shafts on Lexus ES350, Toyota Avalon, and Camry
• Restores proper ABS sensor function with included tone ring and ABS ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure axle nut fitment with included hex nut and stake locking

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8213, verify compatibility with your specific Lexus or Toyota model year. Use the included axle nut and torque to manufacturer specifications, ensuring the stake locking mechanism is properly engaged. Inspect the ABS sensor and wiring during installation to confirm proper alignment with the toothed ABS ring. Lubricate splines as recommended and avoid damaging the neoprene boot during handling.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive provides quality assurance through rigorous manufacturing controls. Please consult product documentation or supplier for specific warranty details related to the TO-8213 part number.
