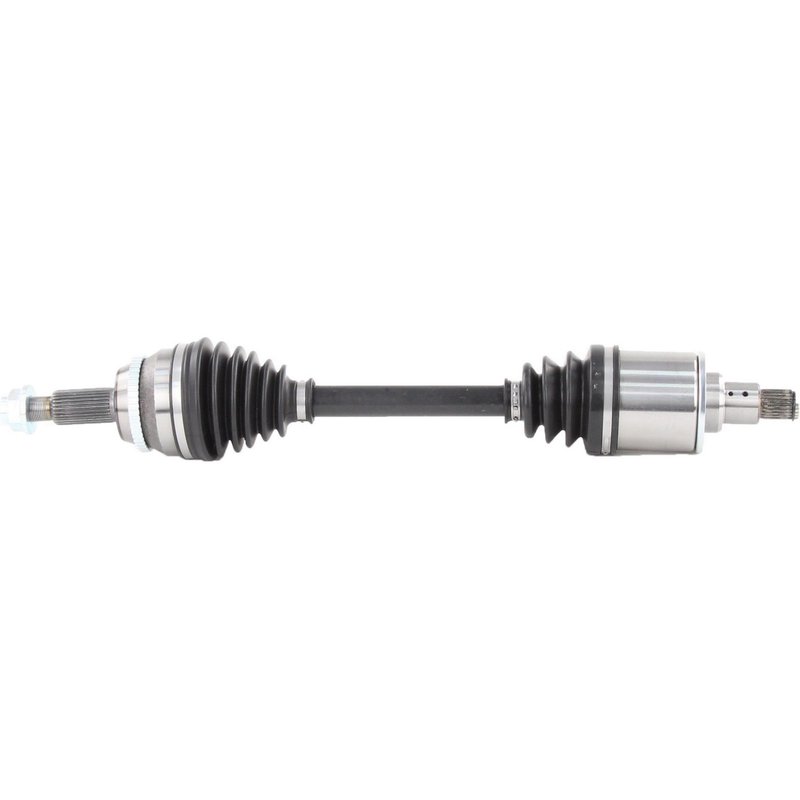

TrakMotive TO-8217 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-8217 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.72 |
| Overall Compressed Length (mm) | 628 |
| Product line | CV Axle Shaft |
| Fits | Lexus · 6 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Supports ABS-equipped applications with a toothed ring.
Cross-references Cardone New 66-5255, Cardone Reman 60-5255 and TrakMotive TO-8217 for the same application. See all 12.
TrakMotive TO-8217 CV Axle Shaft
TrakMotive TO-8217 is a new CV axle shaft for front left applications on select Lexus RX models. It is built with a neoprene boot, a toothed ABS tone ring, and the correct spline and joint configuration for direct replacement service on the listed vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: TO-8217
- New axle shaft for front left driveline service
- 48-tooth toothed ABS ring with tone ring included
- Male inboard shaft connection with 23 inboard splines
- Conventional outboard joint with 30 outboard splines
- Neoprene boot material for axle boot durability
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and stake locking type
- Overall compressed length: 24.72 in. (628 mm)
Product Details
This TrakMotive CV axle shaft is engineered for front left replacement on 2004-2006 Lexus RX330 and 2007-2009 Lexus RX350. The TO-8217 configuration matches the listed spline counts, joint styles, axle nut specifications, and ABS ring details for a direct-fit driveline repair on these Lexus RX applications. TrakMotive identifies this axle as a new part and notes that ABS axles fit non-ABS applications unless otherwise noted. The brand also states ISO 9001:1007 and TS 16949:2009 certification for its manufacturing process.
This part cross-references Cardone New 66-5255 and Cardone Reman 60-5255 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn front left CV axle
- Vibration under acceleration caused by axle wear or imbalance
- Torn axle boot or grease loss at the joint
- ABS warning concerns related to a damaged tone ring or sensor signal path
- Clunking from excessive play in the axle assembly
Installation Notes
Verify front left fitment by matching the vehicle year, model, spline counts, and axle nut specifications before installation. Inspect the hub, seals, and surrounding suspension components for wear before installing the new axle shaft. Torque the axle nut to the vehicle manufacturer specification and stake it as required by the locking design.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The company also states ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and product consistency.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Lexus | RX350 | AWD | Front Left | CV Axle Shaft |
| 2008 | Lexus | RX350 | AWD | Front Left | CV Axle Shaft |
| 2007 | Lexus | RX350 | AWD | Front Left | CV Axle Shaft |
| 2006 | Lexus | RX330 | AWD | Front Left | CV Axle Shaft |
| 2005 | Lexus | RX330 | AWD | Front Left | CV Axle Shaft |
| 2004 | Lexus | RX330 | AWD | Front Left | CV Axle Shaft |
