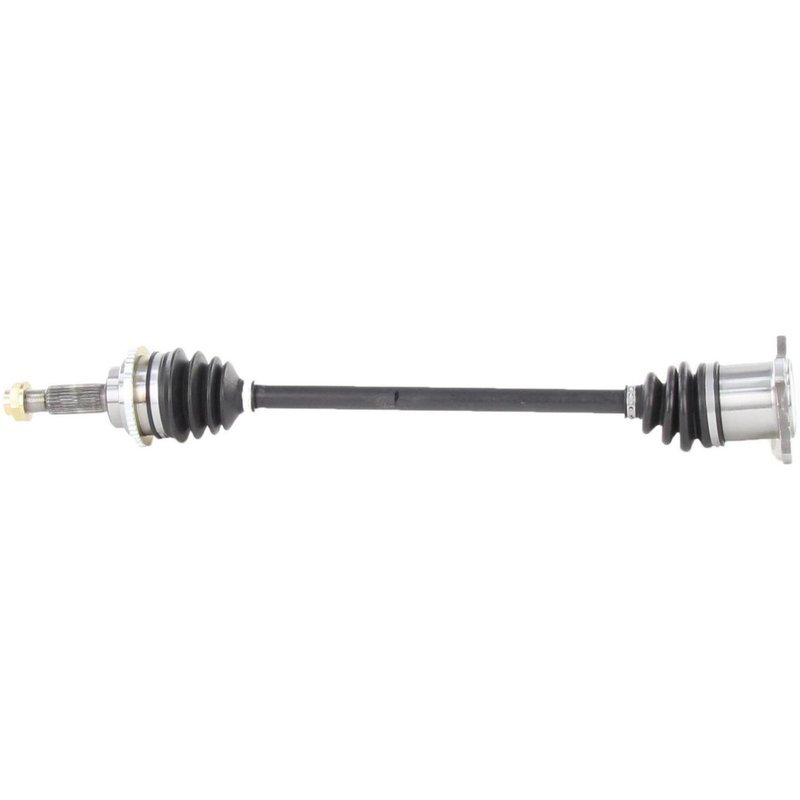

TrakMotive TO-8220 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive TO-8220 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.14 |
| Overall Compressed Length (mm) | 664 |
| Product line | CV Axle Shaft |
| Fits | Lexus and Toyota · 10 vehicles |
New axle shaft. Built as a fresh replacement, not remanufactured.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Supports wheel-speed sensing in compatible applications.
Cross-references TrakMotive TO-8220, 60-5343 and 652493 for the same application. See all 5.
CV Axle Shaft for Lexus RX400h and Toyota Highlander
TrakMotive TO-8220 is a new CV axle shaft built for rear axle service on select Lexus RX400h and Toyota Highlander applications. It is configured with a flange-style inboard connection, a conventional outboard joint, and ABS tone ring details that support the listed fitments.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: TO-8220
- New axle shaft construction
- Inboard joint type: flange
- Outboard joint type: conventional
- Boot material: neoprene
- ABS tone ring included with 48-tooth toothed ring
- Axle nut included with M22 x 1.5 thread, 31.8 mm hex size, and stake-style locking
- Overall compressed length: 26.14 in. (664 mm)
- Number of outboard splines: 26
Detailed Description
TrakMotive TO-8220 is a rear CV axle shaft for 2006-2008 Lexus RX400h and 2006-2007 Toyota Highlander models listed with VIN W at the 5th digit. The axle uses a flange inboard connection and a conventional outboard shaft connection, with a neoprene boot and an included ABS tone ring for the specified applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. TrakMotive TO-8220 is a direct-fit driveline replacement for rear right and rear left positions where listed.
What This Part Helps Address
- Clicking or popping from a worn CV joint during acceleration or turning
- Vibration or shudder from a damaged axle shaft assembly
- ABS warning concerns related to a failed tone ring or sensor input issue
- Grease leakage from a torn or deteriorated axle boot
- Driveline noise caused by excessive axle wear
Installation Notes and Tips
Verify rear right or rear left application against the vehicle listing before installation. Confirm axle nut thread size, hex size, and locking style match the original hardware specification. Inspect hub, bearing, and surrounding suspension components for wear before installing the new axle shaft. For 2006-2007 Toyota Highlander, confirm VIN W at the 5th digit.
Quality Assurance
TrakMotive identifies this CV axle shaft as a new replacement part and states ISO 9001:1007 and TS 16949:2009 certification. The manufacturer also backs this part with a limited lifetime warranty.
| Year | Make | Model | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2008 | Lexus | RX400h | AWD | — | — | — | Rear Right | CV Axle Shaft |
| 2008 | Lexus | RX400h | AWD | — | — | — | Rear Left | CV Axle Shaft |
| 2007 | Lexus | RX400h | AWD | — | — | — | Rear Right | CV Axle Shaft |
| 2007 | Lexus | RX400h | AWD | — | — | — | Rear Left | CV Axle Shaft |
| 2007 | Toyota | Highlander | AWD | 3.3L | V6 | ELECTRIC/GAS | Rear Right | VIN W (5th Digit); CV Axle Shaft |
| 2007 | Toyota | Highlander | AWD | 3.3L | V6 | ELECTRIC/GAS | Rear Left | VIN W (5th Digit); CV Axle Shaft |
| 2006 | Lexus | RX400h | AWD | — | — | — | Rear Right | CV Axle Shaft |
| 2006 | Lexus | RX400h | AWD | — | — | — | Rear Left | CV Axle Shaft |
| 2006 | Toyota | Highlander | AWD | 3.3L | V6 | ELECTRIC/GAS | Rear Right | VIN W (5th Digit); CV Axle Shaft |
| 2006 | Toyota | Highlander | AWD | 3.3L | V6 | ELECTRIC/GAS | Rear Left | VIN W (5th Digit); CV Axle Shaft |
