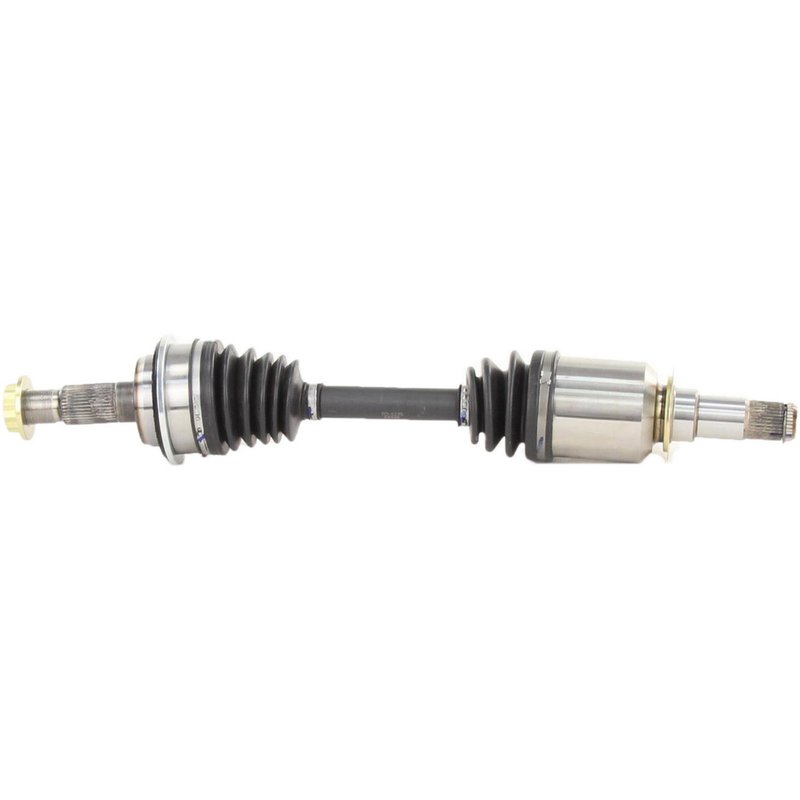

TrakMotive TO-8225 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft TO-8225

The TrakMotive CV Axle Shaft TO-8225 is designed specifically for Lexus Land Cruiser and Toyota LX570 models. This new CV axle shaft ensures reliable driveline performance with precise fitment and durable construction.

• Compatible with Lexus Land Cruiser and Toyota LX570
• Includes axle nut with standard locking type
• Neoprene boot material for enhanced durability
• Hex head axle nut measuring 1 1/2 inches across flats
• Overall compressed length of 26.26 inches (667 mm)
• Male inboard joint and conventional outboard joint types
• 34 inboard splines and 36 outboard splines for secure shaft connection

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts engineered for precise fit and function. This line emphasizes compatibility with specific vehicle makes and models, such as the Lexus Land Cruiser and Toyota LX570, ensuring that each axle shaft meets OEM specifications for joint types, spline counts, and boot materials.

Technical Specifications and Features

The TO-8225 CV axle shaft features a neoprene boot that provides resistance to wear and environmental factors, helping to maintain joint integrity. The axle nut included is a hex head type with a 1 1/2 inch (38.8 mm) hex size, 3/4 inch (18.6 mm) height, and a length of 1 3/4 inches (44.5 mm), secured with a standard locking mechanism and M32x1.5 thread size. The inboard joint is male type with 34 splines, while the outboard joint is conventional with 36 splines, ensuring a secure and reliable connection to the drivetrain. The overall compressed length of 26.26 inches (667 mm) matches factory specifications for proper fitment.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Lexus Land Cruiser and Toyota LX570
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration or shuddering issues related to axle imbalance or joint failure
• Prevents grease leaks and contamination with durable neoprene boot
• Restores proper driveline function and vehicle handling

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft TO-8225, ensure the axle nut is torqued to manufacturer specifications using the included hex head nut. Verify that the male inboard joint and spline counts align correctly with the vehicle’s drivetrain components. Inspect the neoprene boot for any damage before installation to maintain joint protection. Proper alignment and secure fastening are critical to avoid premature wear or driveline issues.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. The inclusion of the axle nut and use of durable materials like neoprene for the boot contribute to long service life. Warranty coverage details should be confirmed with the distributor or manufacturer to ensure protection against defects.
