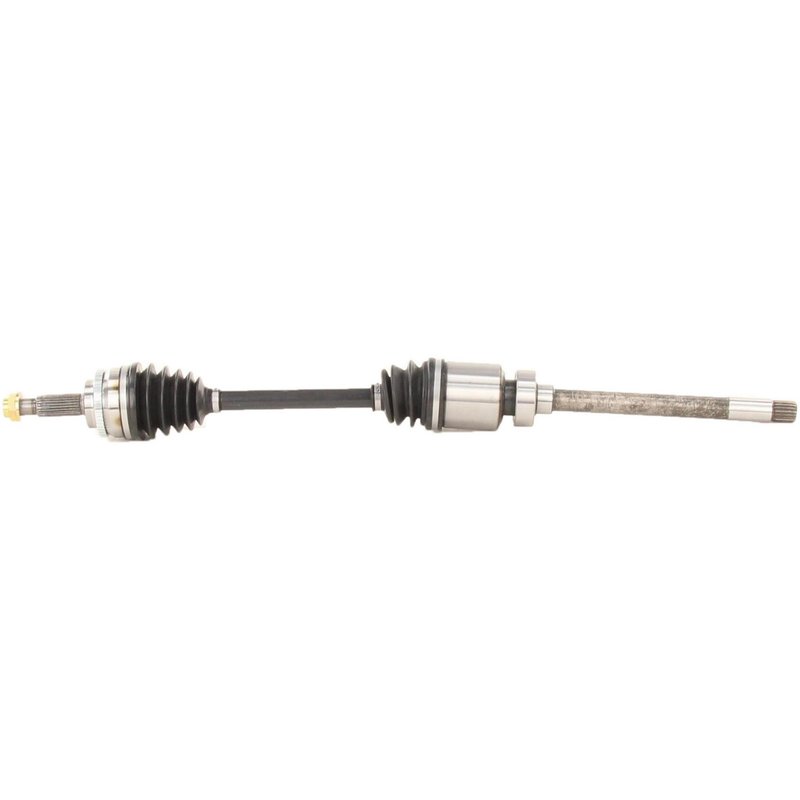

TrakMotive TO-8227 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft TO-8227

The TrakMotive CV Axle Shaft TO-8227 is engineered for reliable driveline performance in Pontiac Matrix and Toyota Vibe vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures proper fit and function for your vehicle's front-wheel-drive system.

• Compatible with Pontiac Matrix and Toyota Vibe models
• Includes a neoprene boot for enhanced durability
• Equipped with a 48-tooth ABS ring and tone ring included
• Features a hex head axle nut with stake locking type
• Overall compressed length of 36.42 inches (925 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line includes shafts with precise spline counts and connection styles to ensure compatibility and durability. The TO-8227 model features a male inboard joint and conventional outboard joint, providing a secure and reliable connection for your vehicle’s axle assembly.

Technical Specifications and Features

This CV axle shaft includes a 48-tooth toothed ABS ring with the tone ring included, supporting accurate wheel speed sensor readings. The axle nut is a hex type with a 1 1/4 inch (31.8 mm) hex size, 4/5 inch (20 mm) height, and a length of 1 1/3 inch (34.4 mm), featuring a stake locking mechanism for secure installation. The neoprene boot material offers resistance to wear and environmental factors. The shaft has 20 inboard splines and 26 outboard splines, with male inboard and conventional outboard joint types, ensuring proper fitment and driveline performance.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Pontiac Matrix and Toyota Vibe
• Resolves issues related to axle vibration and noise during acceleration
• Addresses ABS sensor errors caused by damaged or missing tone rings
• Prevents grease leakage with durable neoprene boot material
• Eliminates axle nut loosening with stake locking axle nut design

Installation Notes and Tips

Ensure compatibility by verifying the part number TO-8227 with your vehicle’s make and model. Use proper torque specifications when installing the hex head axle nut with M22*1.5 thread size. Inspect the neoprene boot for any damage during installation to maintain joint protection. The stake locking axle nut requires staking after tightening to prevent loosening. Confirm the correct orientation of the male inboard and conventional outboard joints for proper assembly.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft TO-8227 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a tone ring for ABS functionality and is constructed with durable materials such as neoprene for the boot. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality standards to ensure reliable performance and longevity.
