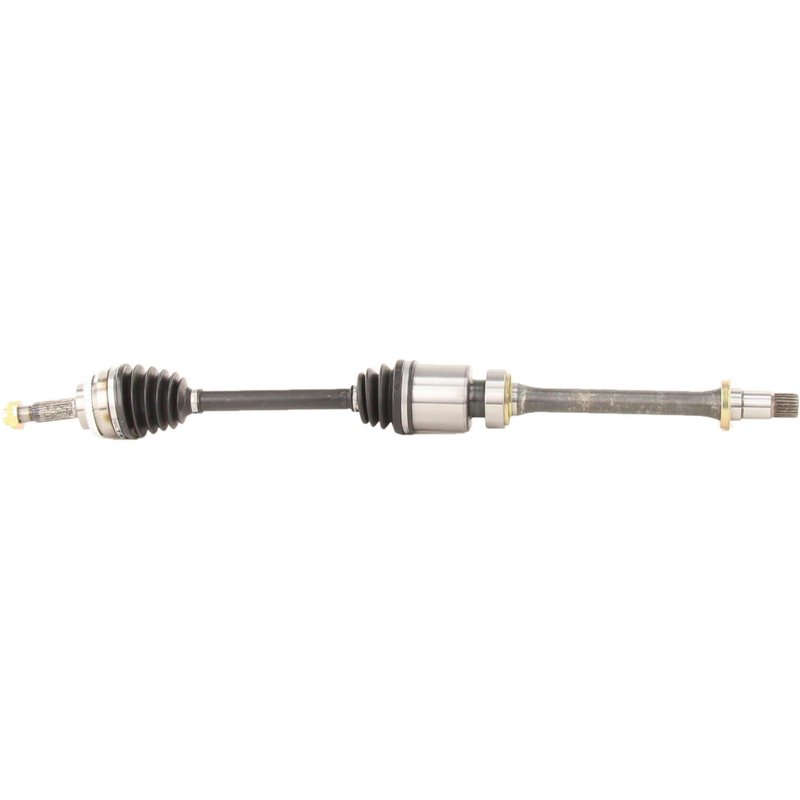

TrakMotive TO-8228 CV Axle Shaft - Front Right
| Brand | TrakMotive TO-8228 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 37.09 |
| Overall Compressed Length (mm) | 942 |
| Product line | CV Axle Shaft |
| Fits | Toyota and Pontiac · 11 vehicles |
New axle shaft. Built with neoprene boot material and conventional joint design.
ABS-ready hardware. Includes a toothed tone ring and axle nut for a complete setup.
Certified manufacturing. Made by an ISO 9001 and TS 16949 certified company.
Cross-references Cardone New 66-5290, Cardone Reman 60-5417 and TrakMotive TO-8228 for the same application. See all 11.
TrakMotive TO-8228 CV Axle Shaft
The TrakMotive TO-8228 CV axle shaft is a new front right driveline replacement for select Toyota and Pontiac applications. It is built for 2009-2013 Toyota Matrix, 2009-2012 Toyota Corolla XRS, and 2009-2010 Pontiac Vibe models with the listed fitment.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: TO-8228
- Front right position
- New axle assembly
- 24 inboard splines and 26 outboard splines
- 48-tooth toothed ABS ring with tone ring included
- Neoprene boot material
- Male inboard shaft connection and conventional outboard joint type
- Overall compressed length: 37.09 in. (942 mm)
- Axle nut included with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
Product Details
TrakMotive TO-8228 is a CV axle shaft for front right applications that require the specified spline counts, ABS tone ring, and axle nut configuration. It is listed for 2009-2013 Toyota Matrix, 2009-2012 Toyota Corolla XRS, and 2009-2010 Pontiac Vibe, making it a direct-fit search term for drivers looking for a Toyota Matrix front right CV axle shaft, Toyota Corolla XRS front right axle, or Pontiac Vibe CV axle replacement. This part cross-references Cardone New 66-5290 and Cardone Reman 60-5417 for the same application.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration caused by axle wear or imbalance
- Torn or deteriorated axle boot leading to grease loss
- ABS warning concerns related to a damaged tone ring or sensor interface
- Excessive drivetrain play from a worn front right axle shaft
Installation Notes and Tips
Verify front right fitment by matching the vehicle year, model, trim, spline counts, and axle length before installation. Confirm the axle nut thread size, hex size, and locking style against the original hardware, and inspect the hub, seals, and suspension components for wear while the axle is removed. Because ABS axles fit non-ABS applications unless otherwise noted, confirm the vehicle’s brake system configuration before ordering.
Quality Assurance
TrakMotive identifies this axle shaft as a new part and states that it is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2013 | Toyota | Matrix | — | FWD | 2.4L | L4 | Front Right | CV Axle Shaft |
| 2012 | Toyota | Corolla | XRS | — | — | — | Front Right | XRS; CV Axle Shaft |
| 2012 | Toyota | Matrix | — | FWD | 2.4L | L4 | Front Right | CV Axle Shaft |
| 2011 | Toyota | Corolla | XRS | — | — | — | Front Right | XRS; CV Axle Shaft |
| 2011 | Toyota | Matrix | — | FWD | 2.4L | L4 | Front Right | CV Axle Shaft |
| 2010 | Pontiac | Vibe | — | FWD | 2.4L | L4 | Front Right | CV Axle Shaft |
| 2010 | Toyota | Corolla | XRS | — | — | — | Front Right | XRS; CV Axle Shaft |
| 2010 | Toyota | Matrix | — | FWD | 2.4L | L4 | Front Right | CV Axle Shaft |
| 2009 | Pontiac | Vibe | — | FWD | 2.4L | L4 | Front Right | CV Axle Shaft |
| 2009 | Toyota | Corolla | XRS | — | — | — | Front Right | XRS; CV Axle Shaft |
| 2009 | Toyota | Matrix | — | FWD | 2.4L | L4 | Front Right | CV Axle Shaft |
