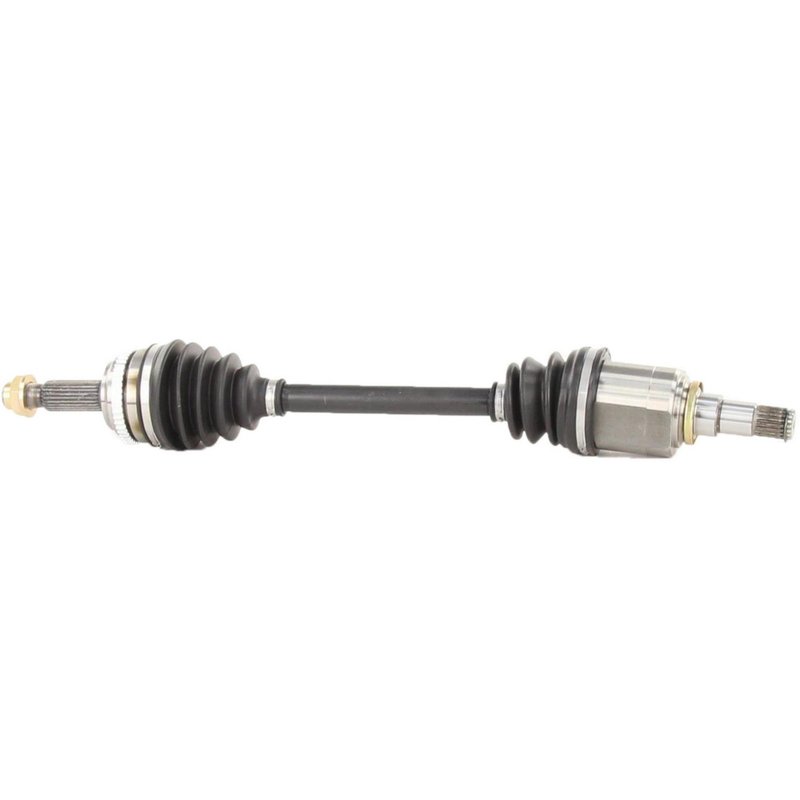

TrakMotive TO-8234 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-8234 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 20 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.47 |
| Overall Compressed Length (mm) | 647 |
| Product line | CV Axle Shaft |
| Fits | Toyota and Pontiac · 28 vehicles |
New axle shaft. Built with neoprene boot material for dependable CV joint protection.
ABS-ready design. Includes a toothed tone ring with 48 teeth for accurate wheel-speed sensing.
Hardware included. Comes with the axle nut for a more complete installation.
Cross-references Cardone Reman 60-5287, TrakMotive TO-8234 and 4946N for the same application. See all 12.
CV Axle Shaft for Toyota Corolla, Matrix, and Vibe
TrakMotive TO-8234 is a new CV axle shaft built for front left applications on select Toyota Corolla, Toyota Matrix, and Pontiac Vibe models. It is specified with a 25.47 in. compressed length, 20 mm axle nut height, and a 31.8 mm hex axle nut size for a direct-fit driveline repair.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: TO-8234
- New axle shaft, not remanufactured
- Front left position
- Inboard joint type: male
- Outboard joint type: conventional
- Boot material: neoprene
- ABS tone ring included with 48-tooth toothed ring
- Axle nut included with M22 x 1.5 thread
- Overall compressed length: 25.47 in. (647 mm)
Product Details
TrakMotive TO-8234 is a CV axle shaft for front-wheel-drive service on 2009-2014 Toyota Matrix, 2009-2012 Toyota Corolla except XRS, and 2009-2010 Pontiac Vibe, all in the front left position. The axle uses a male inboard connection, a conventional outboard joint, and a neoprene boot to support consistent driveline operation. This part cross-references Cardone Reman 60-5287 for the same application.
Common Repair Uses
- Restores a worn or noisy front left CV axle assembly
- Addresses clicking during turns caused by joint wear
- Replaces a damaged axle shaft with boot or joint failure
- Helps correct vibration from a worn driveline component
- Supports ABS-equipped service with the included tone ring
Installation Notes and Tips
Verify spline count, axle nut thread size, and compressed length before installation. This axle includes an axle nut and is listed with ABS axle fitment that also fits non-ABS applications unless otherwise noted. Confirm the vehicle is the front left application for your Toyota Corolla, Matrix, or Pontiac Vibe before ordering. Use proper torque procedures and inspect related seals, hubs, and suspension components during replacement.
Quality Assurance
TrakMotive manufactures this axle shaft as a new replacement part and states ISO 9001:1007 and TS 16949:2009 certification. The TO-8234 is backed by a limited lifetime warranty.
| Year | Make | Model | Body Type | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2019 | Toyota | Corolla | Sedan | — | Manual | — | — | Front Left | CV Axle Shaft |
| 2019 | Toyota | Corolla | Sedan | — | Automatic CVT | — | — | Front Left | CV Axle Shaft |
| 2018 | Toyota | Corolla | Sedan | — | Automatic CVT | — | — | Front Left | CV Axle Shaft |
| 2018 | Toyota | Corolla | — | — | Manual | — | — | Front Left | CV Axle Shaft |
| 2017 | Toyota | Corolla | — | FWD | Manual | — | — | Front Left | CV Axle Shaft |
| 2017 | Toyota | Corolla | — | FWD | Automatic CVT | — | — | Front Left | CV Axle Shaft |
| 2016 | Toyota | Corolla | — | FWD | Manual | — | — | Front Left | CV Axle Shaft |
| 2016 | Toyota | Corolla | — | FWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2016 | Toyota | Corolla | — | FWD | Automatic CVT | — | — | Front Left | CV Axle Shaft |
| 2015 | Toyota | Corolla | — | FWD | Manual | — | — | Front Left | CV Axle Shaft |
| 2015 | Toyota | Corolla | — | FWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2015 | Toyota | Corolla | — | FWD | Automatic CVT | — | — | Front Left | CV Axle Shaft |
| 2014 | Toyota | Corolla | — | FWD | Manual | — | — | Front Left | CV Axle Shaft |
| 2014 | Toyota | Corolla | — | FWD | Automatic | — | — | Front Left | CV Axle Shaft |
| 2014 | Toyota | Corolla | — | FWD | Automatic CVT | — | — | Front Left | CV Axle Shaft |
| 2014 | Toyota | Matrix | — | FWD | — | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2013 | Toyota | Corolla | — | FWD | — | — | — | Front Left | CV Axle Shaft |
| 2013 | Toyota | Matrix | — | FWD | — | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2012 | Toyota | Corolla | — | — | — | — | — | Front Left | exc. XRS; CV Axle Shaft |
| 2012 | Toyota | Matrix | — | FWD | — | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2011 | Toyota | Corolla | — | — | — | — | — | Front Left | exc. XRS; CV Axle Shaft |
| 2011 | Toyota | Matrix | — | FWD | — | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2010 | Pontiac | Vibe | — | — | — | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2010 | Toyota | Corolla | — | — | — | — | — | Front Left | exc. XRS; CV Axle Shaft |
| 2010 | Toyota | Matrix | — | FWD | — | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2009 | Pontiac | Vibe | — | — | — | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2009 | Toyota | Corolla | — | — | — | — | — | Front Left | exc. XRS; CV Axle Shaft |
| 2009 | Toyota | Matrix | — | FWD | — | 1.8L | L4 | Front Left | CV Axle Shaft |
