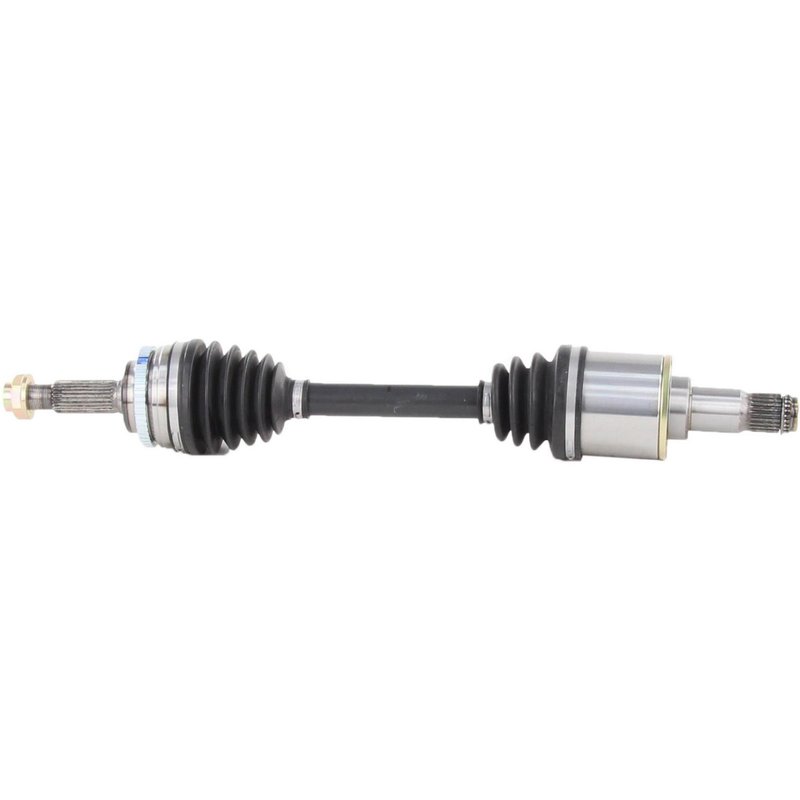

TrakMotive TO-8235 CV Axle Shaft - Front Left
| Brand | TrakMotive TO-8235 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.09 |
| Overall Compressed Length (mm) | 612 |
| Product line | CV Axle Shaft |
| Fits | Toyota and Pontiac · 7 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Toothed ring with 48 teeth for ABS-equipped applications.
Cross-references Cardone New 66-5291, Protech CV TO10547 and TrakMotive TO-8235 for the same application. See all 13.
TrakMotive TO-8235 CV Axle Shaft
TrakMotive TO-8235 is a new front left CV axle shaft for select Toyota Matrix and Pontiac Vibe applications. It is built with a neoprene boot, a toothed ABS tone ring, and the correct spline and joint configuration for direct replacement service.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: TO-8235
- Front left axle for select 2009-2013 Toyota Matrix and 2009-2010 Pontiac Vibe models
- New axle shaft with 24 inboard splines and 26 outboard splines
- Male inboard joint with conventional outboard joint
- Neoprene boot material for driveline protection
- ABS tone ring included with 48-tooth toothed ring design
- Axle nut included; M22 x 1.5 thread, 31.8 mm hex size, stake locking type
Product Details
TrakMotive CV Axle Shaft TO-8235 is engineered for front left driveline replacement on the Toyota Matrix and Pontiac Vibe applications listed below. The axle measures 24.09 inches compressed length and includes the ABS tone ring configuration needed for vehicles equipped with ABS, while ABS axles also fit non-ABS applications unless otherwise noted. TrakMotive identifies this part as a new axle shaft and manufactures it under ISO 9001:1007 and TS 16949:2009 certified quality systems.
This part cross-references Cardone New 66-5291 for the same application.
Vehicle Fitment
- Fits 2009-2013 Toyota Matrix, front left.
- Fits 2009-2010 Pontiac Vibe, front left.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration from a damaged axle shaft
- Torn or leaking CV boot that exposes the joint to contamination
- ABS warning concerns related to a damaged tone ring or axle assembly
- Excessive driveline play from spline or joint wear
Installation Notes
Verify front left fitment, spline count, axle nut thread size, and ABS configuration before installation. Confirm the axle length and joint style match the original part on the vehicle. Follow factory service procedures for axle removal, hub torque, and axle nut staking during installation.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified manufacturing standards for this part line.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | Toyota | Matrix | AWD | — | — | Front Left | CV Axle Shaft |
| 2012 | Toyota | Matrix | AWD | — | — | Front Left | CV Axle Shaft |
| 2011 | Toyota | Matrix | AWD | — | — | Front Left | CV Axle Shaft |
| 2010 | Pontiac | Vibe | AWD | 2.4L | L4 | Front Left | CV Axle Shaft |
| 2010 | Toyota | Matrix | AWD | — | — | Front Left | CV Axle Shaft |
| 2009 | Pontiac | Vibe | AWD | 2.4L | L4 | Front Left | CV Axle Shaft |
| 2009 | Toyota | Matrix | AWD | — | — | Front Left | CV Axle Shaft |
